Horns Component Views

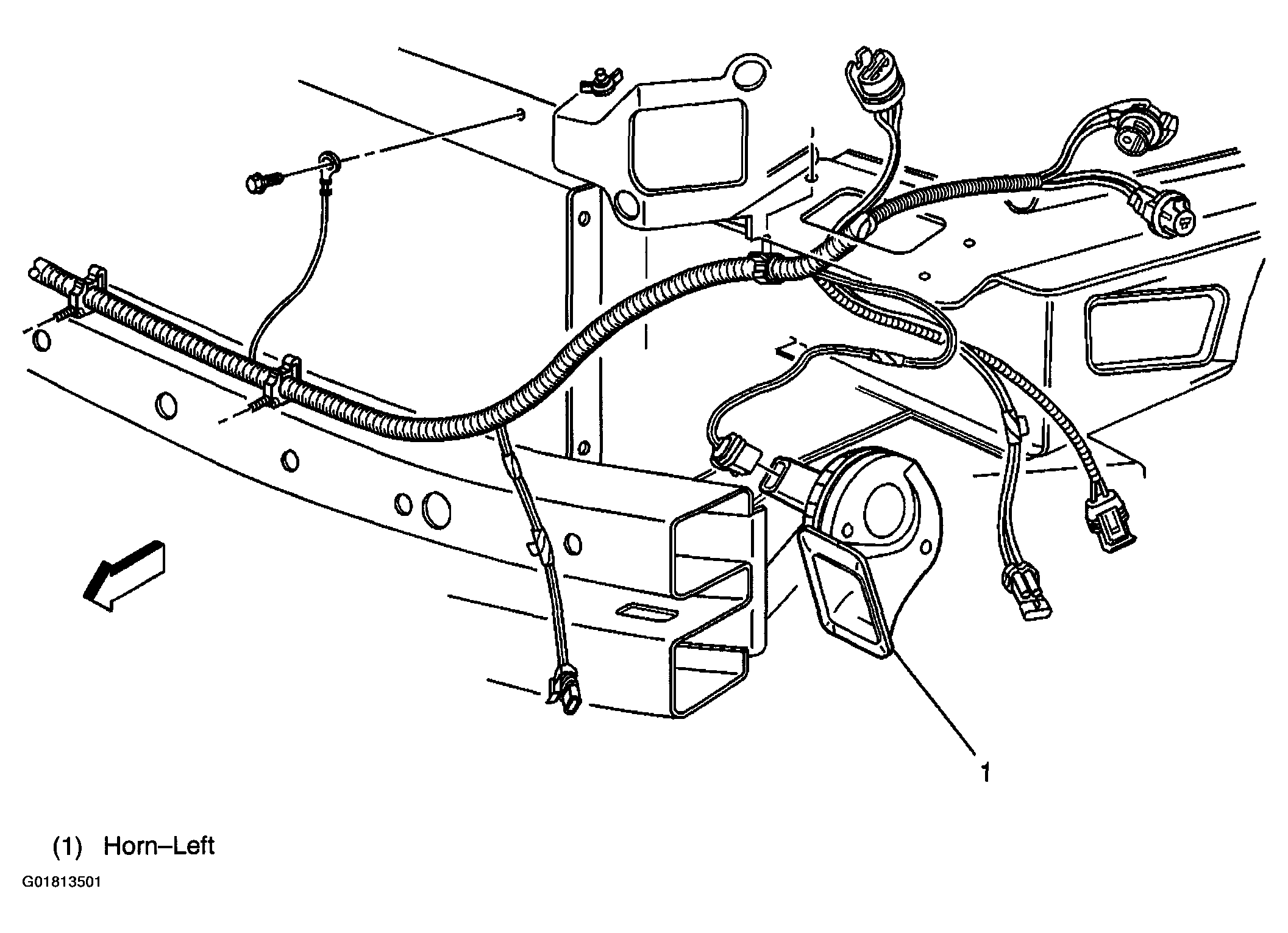

Fig 1: Lower Left Side Of Engine Compartment
G01813501Courtesy of GENERAL MOTORS CORP.

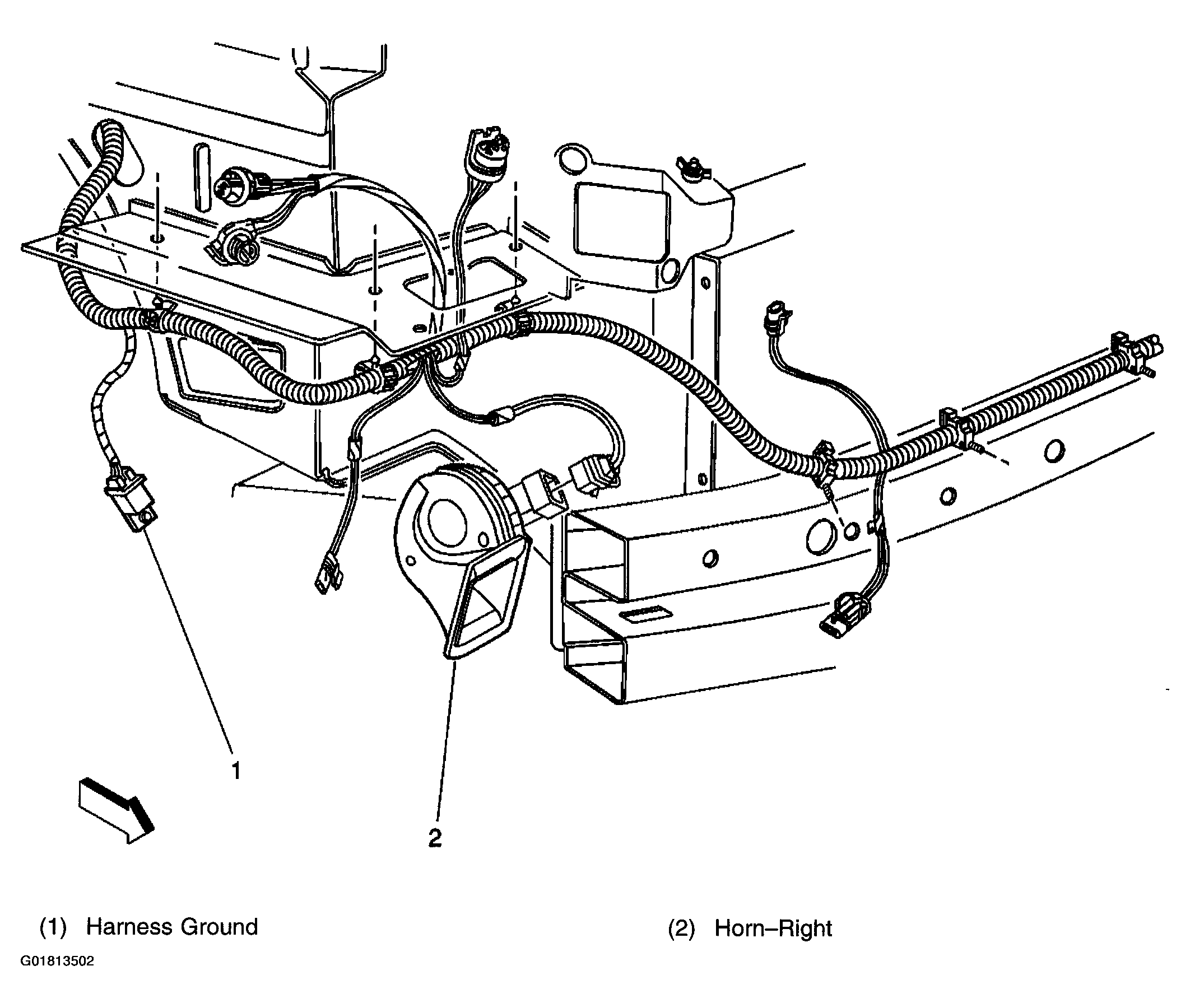

Fig 2: Lower Right Side Of Engine Compartment
G01813502Courtesy of GENERAL MOTORS CORP.
