Horns Connector End Views

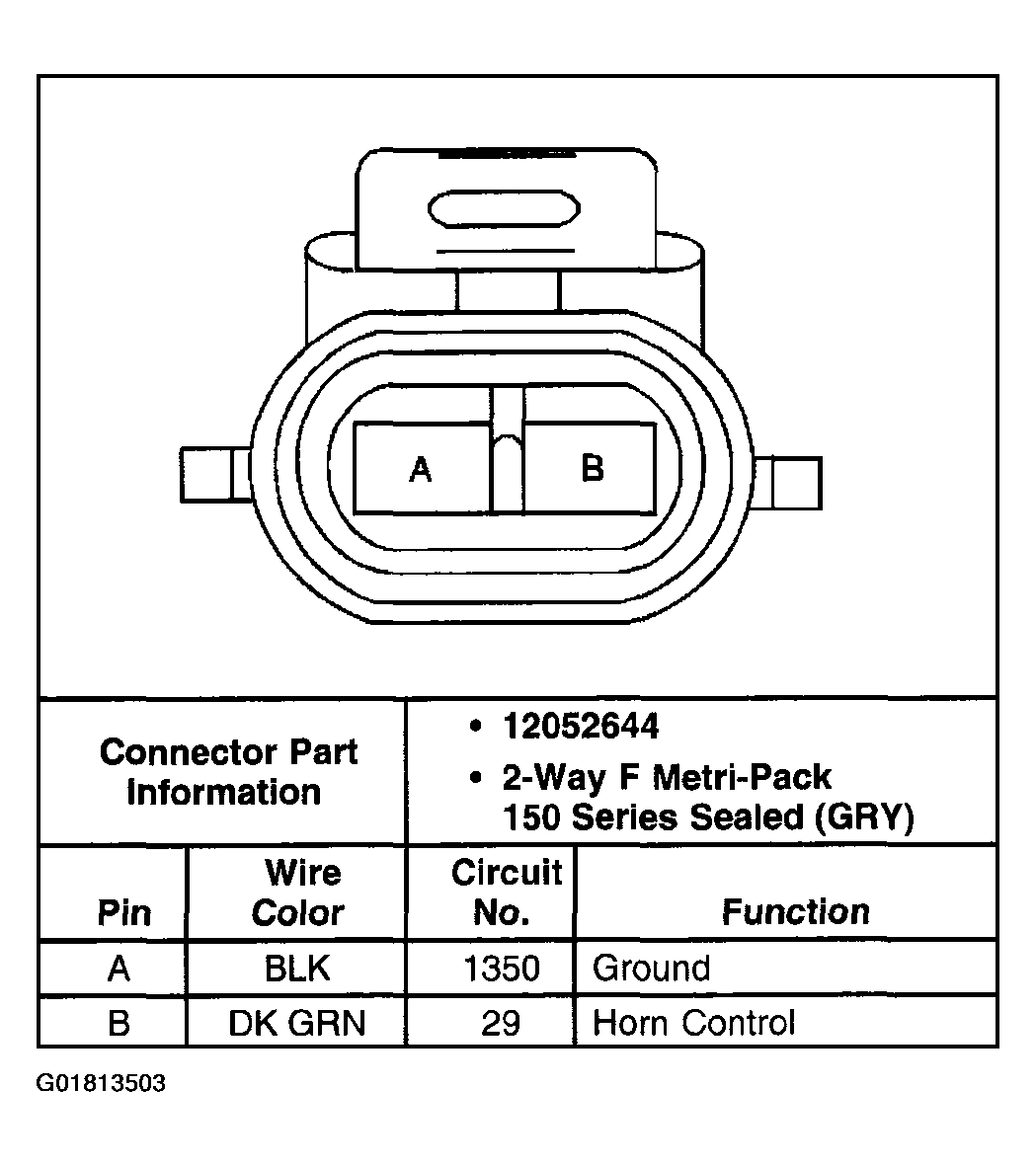

Fig 1: Horn-Left
G01813503Courtesy of GENERAL MOTORS CORP.

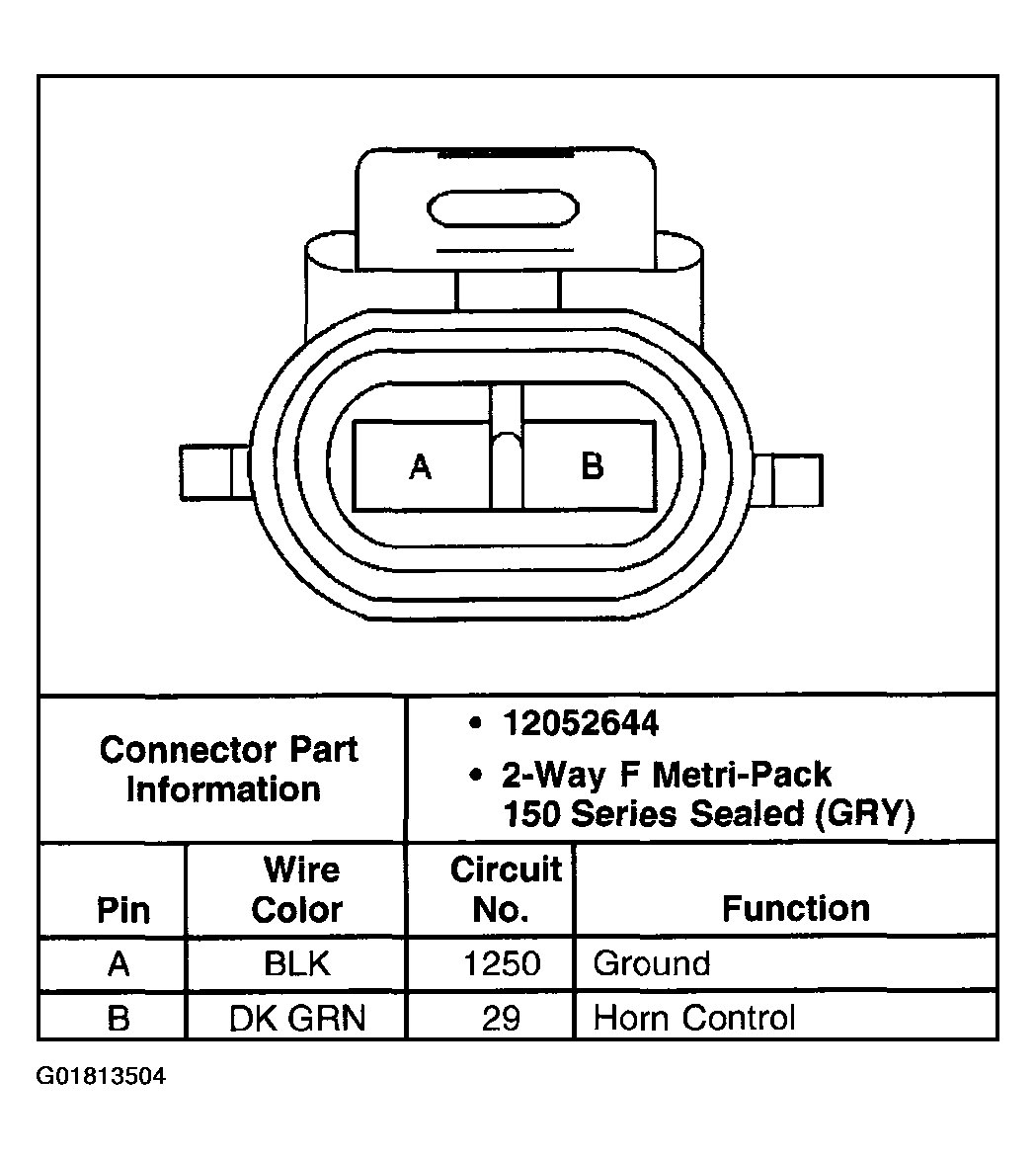

Fig 2: Horn-Right
G01813504Courtesy of GENERAL MOTORS CORP.
