Installation Procedure
- Connect the electrical connectors.

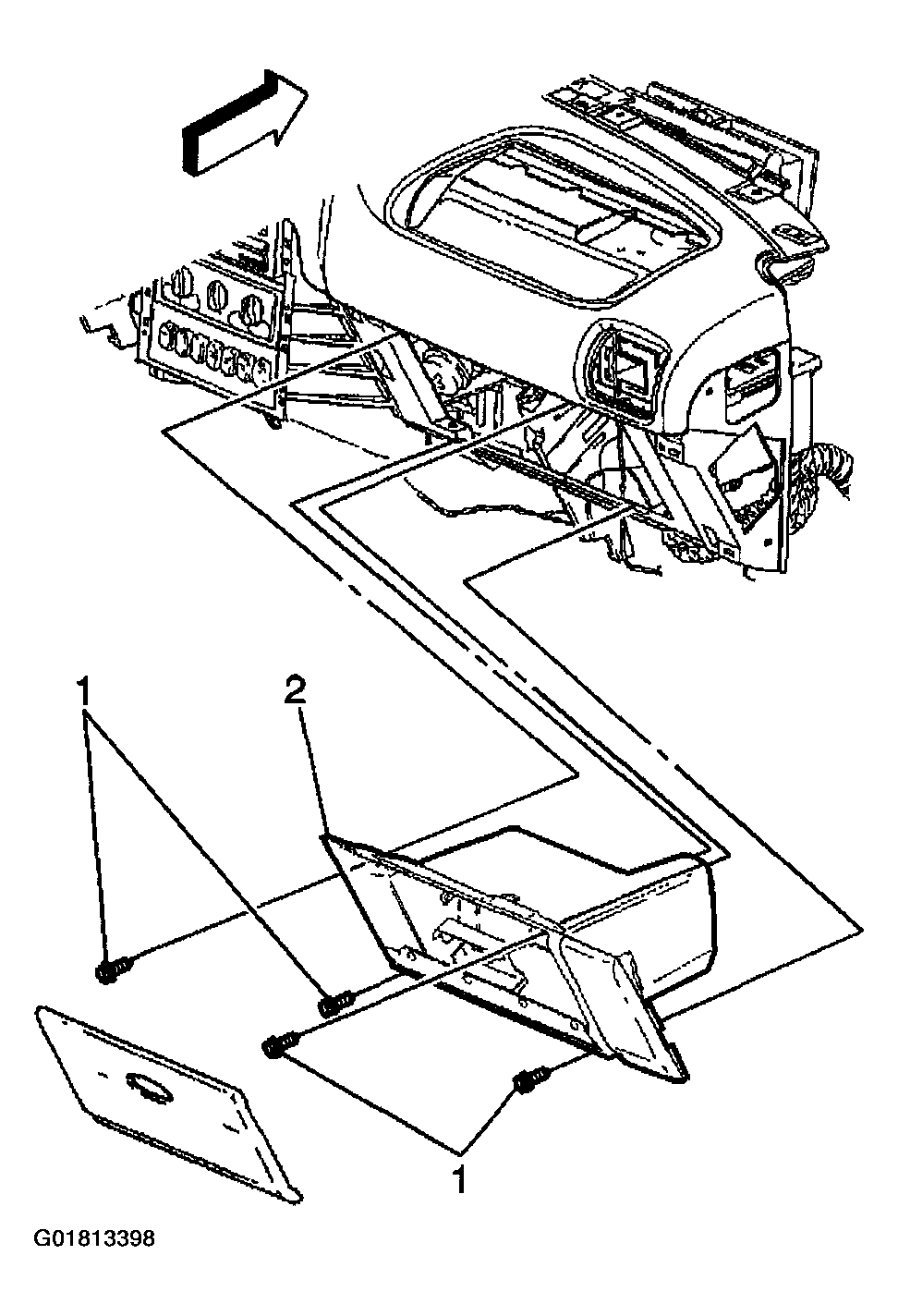

- Slide the IP compartment into the opening in the instrument panel.
- Align the locator pins into the hole in the instrument panel.
- Align the retaining clips with the slots.
- Push in the IP compartment until secure.NOTE: Refer to FASTENER NOTICE .
- Install the screws (1) to the IP compartment.
Tighten
Tighten the screws to 2.5 N.m (22 lb in).
- Close the IP compartment door.
