Installation Procedure

Connect the electrical connectors.
Install the switch bank into the IP by pushing in on the switch bank.

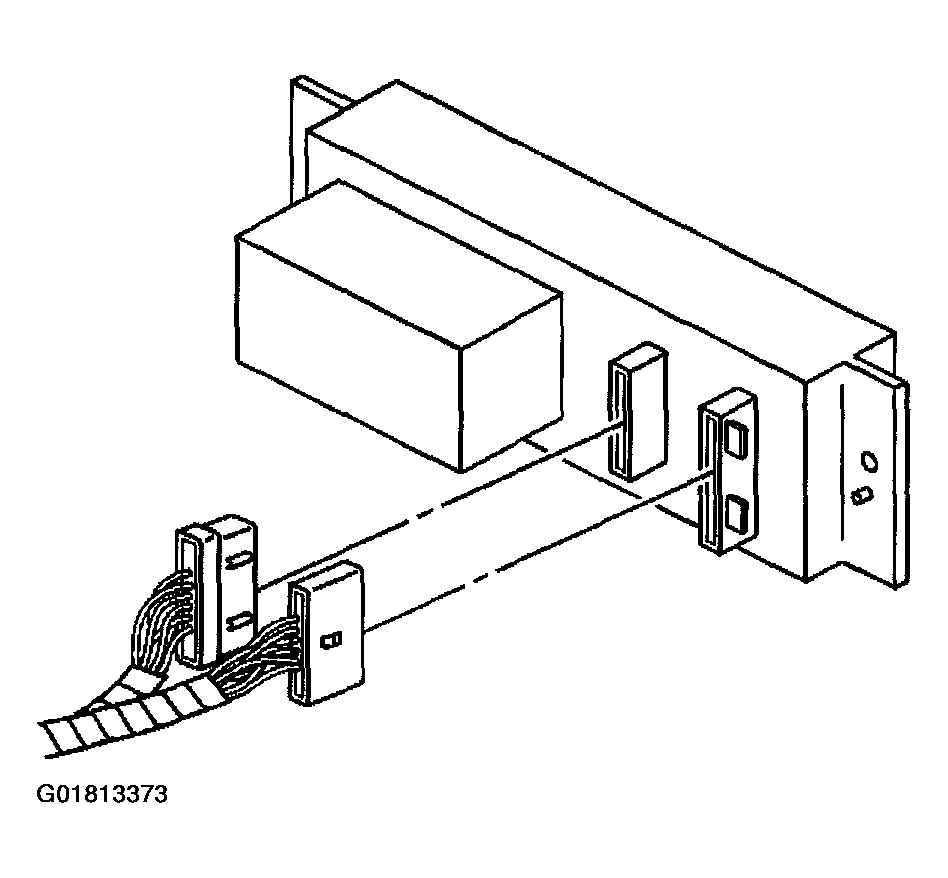

Fig 1: Connecting Electrical Connectors
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the bolts/screws to secure the switch bank to the instrument panel.
Tighten

Tighten the bolts/screws to 2.5 N.m (22 lb in).

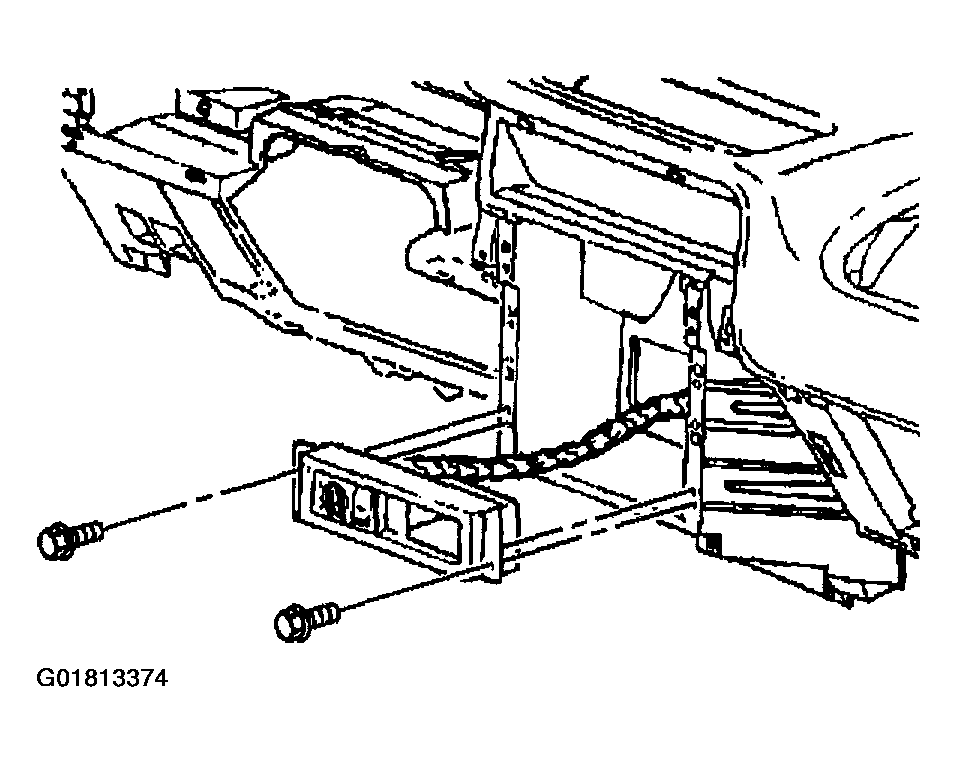

Fig 2: Installing Bolts/Screws To Switch Bank
Courtesy of GENERAL MOTORS CORP.
Install the IP accessory trim plate. Refer to Trim Pad Replacement - IP Upper .

Fig 3: Installing IP Accessory Trim Plate
Courtesy of GENERAL MOTORS CORP.
