Electronic Frontal Sensor Connector End View - Right
Electronic Frontal Sensor Connector End View - Right

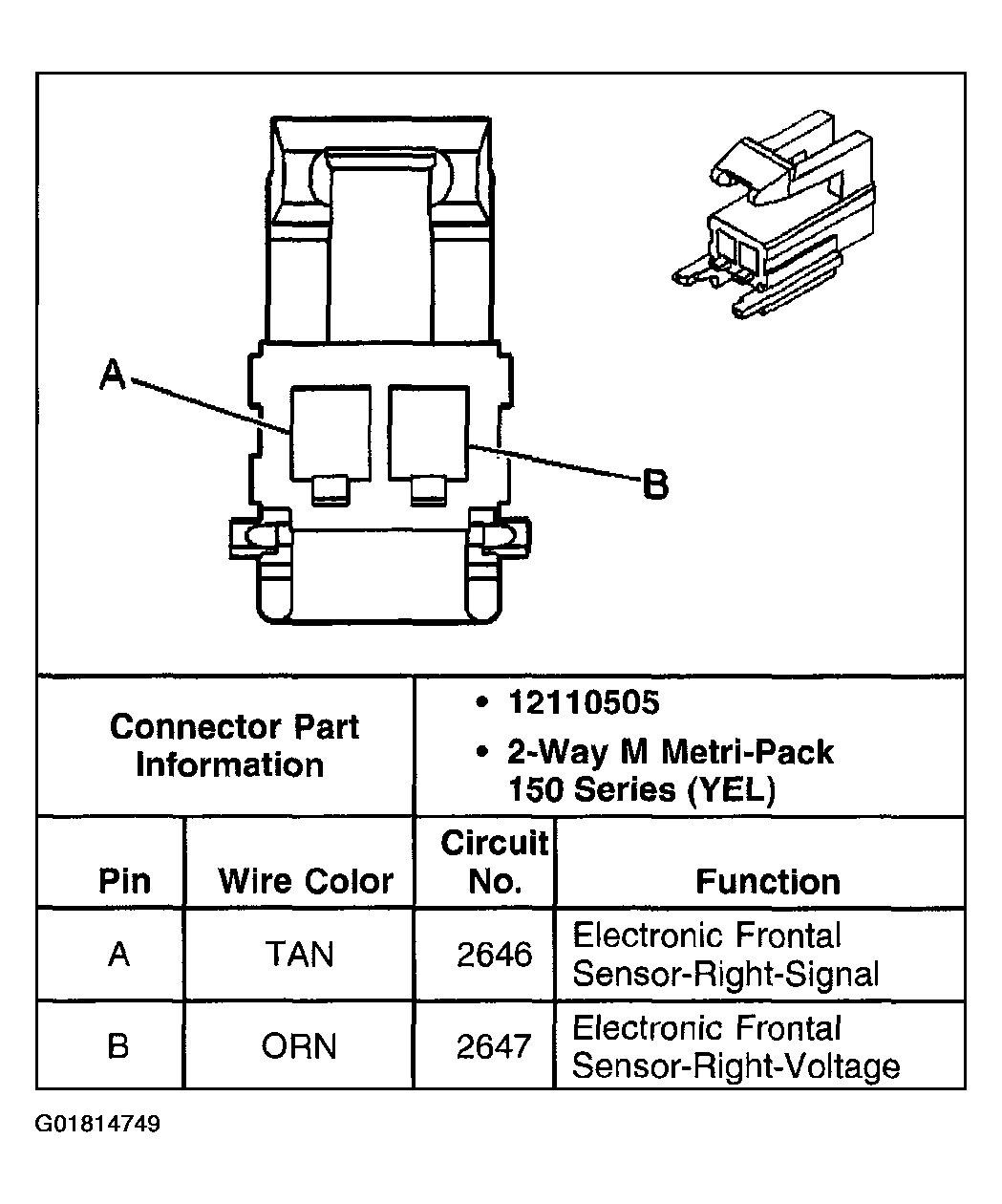

Fig 1: Electronic Frontal Sensor - Right
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
