Rear Video/Audio/HVAC Module Connector End View - C3

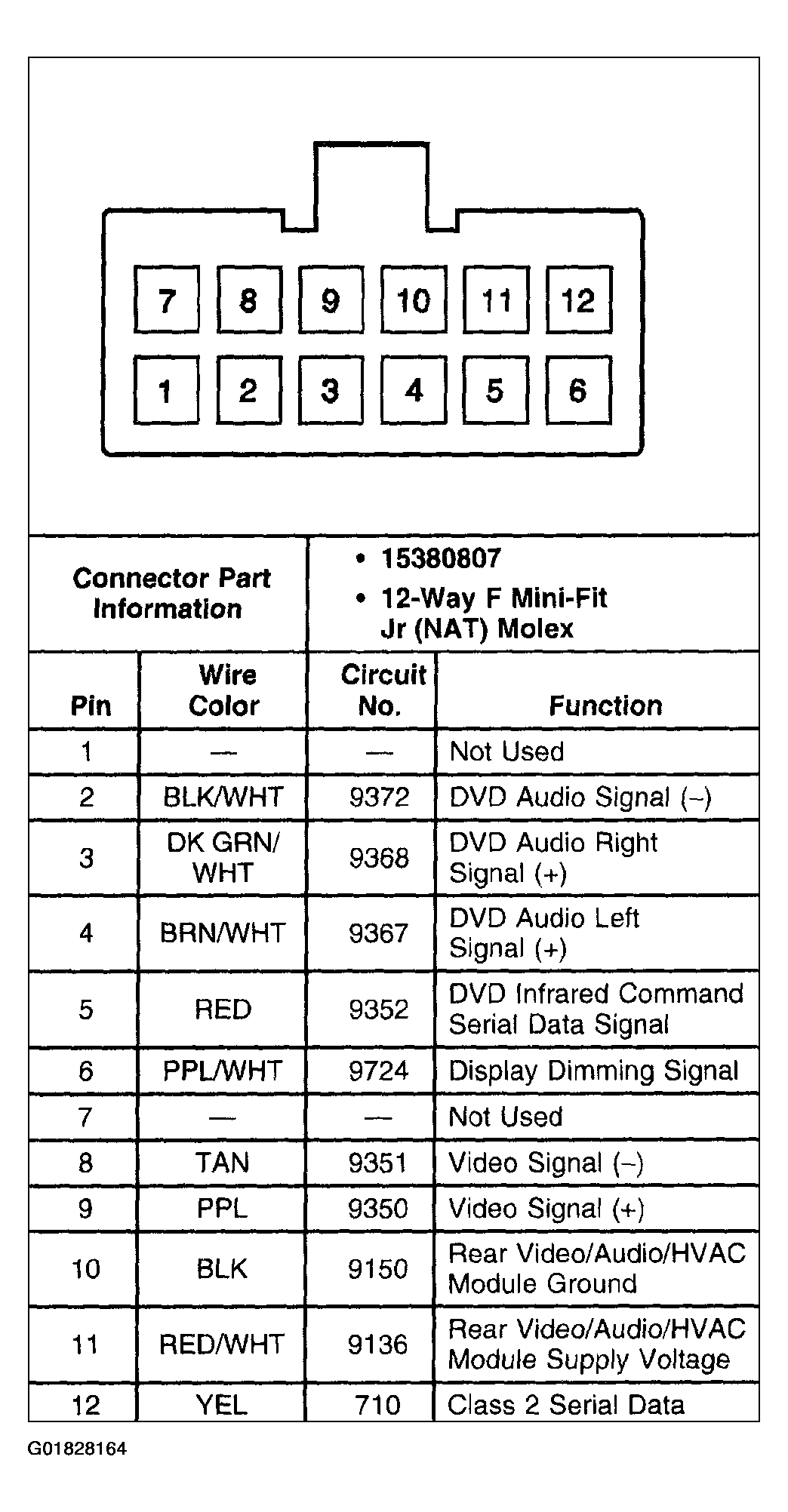

Fig 1: Rear Video/Audio/HVAC Module - C3
G01828164Courtesy of GENERAL MOTORS CORP.


Fig 1: Rear Video/Audio/HVAC Module - C3
G01813138Courtesy of GENERAL MOTORS CORP.
