Cooling System Connector End Views

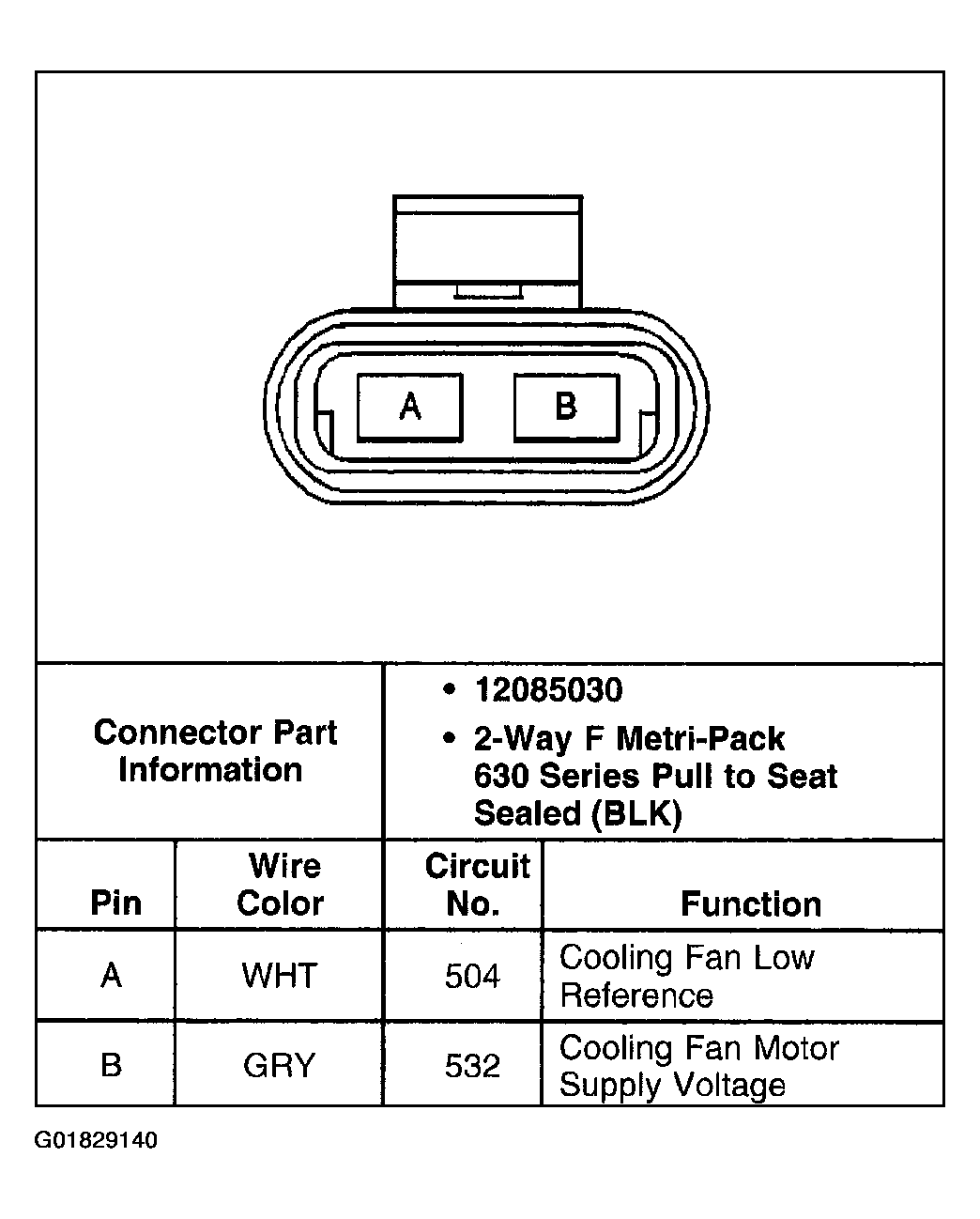

Fig 1: Cooling Fan-Left
G01829140Courtesy of GENERAL MOTORS CORP.

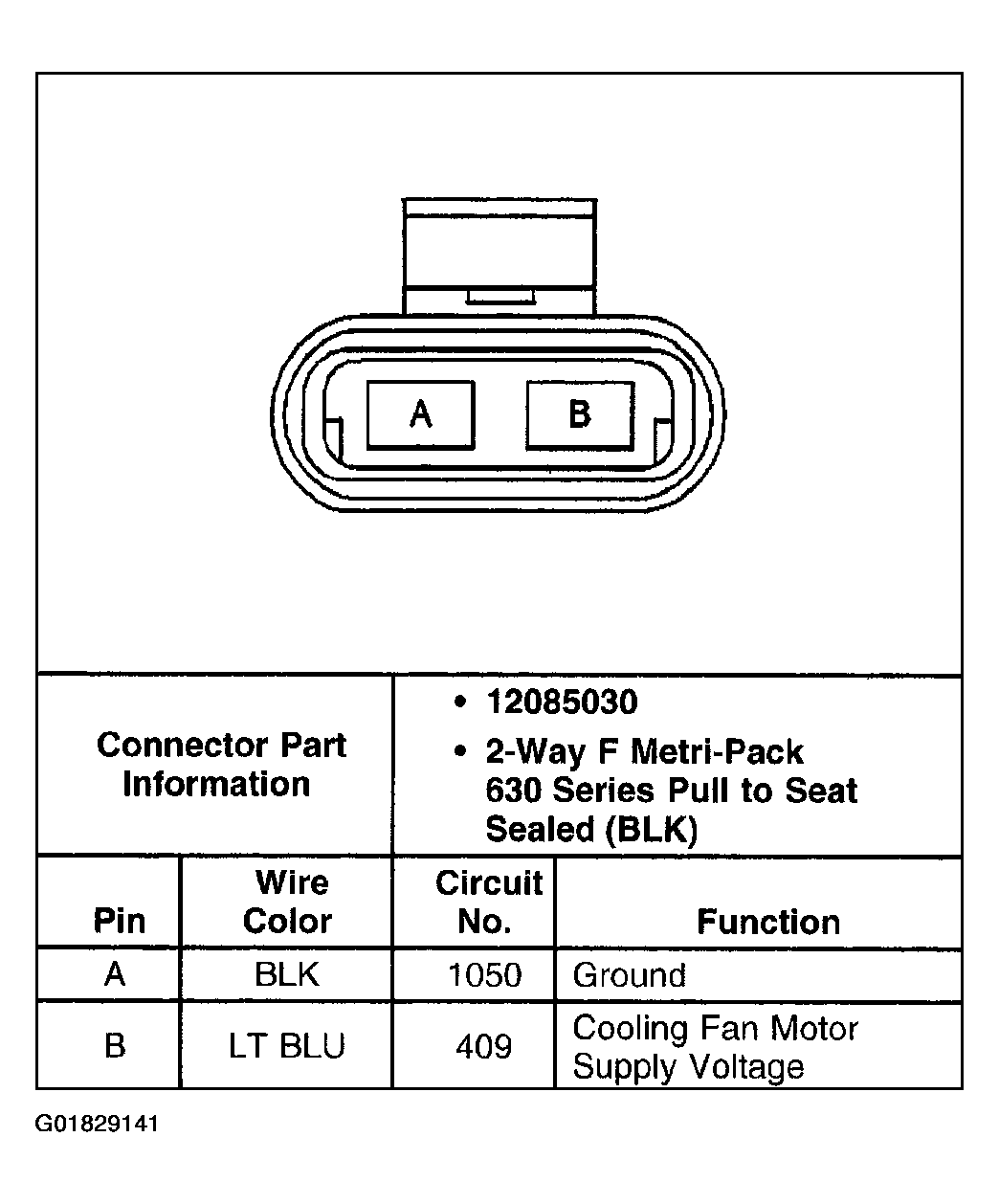

Fig 2: Cooling Fan-Right
G01829141Courtesy of GENERAL MOTORS CORP.
