Installation Procedure

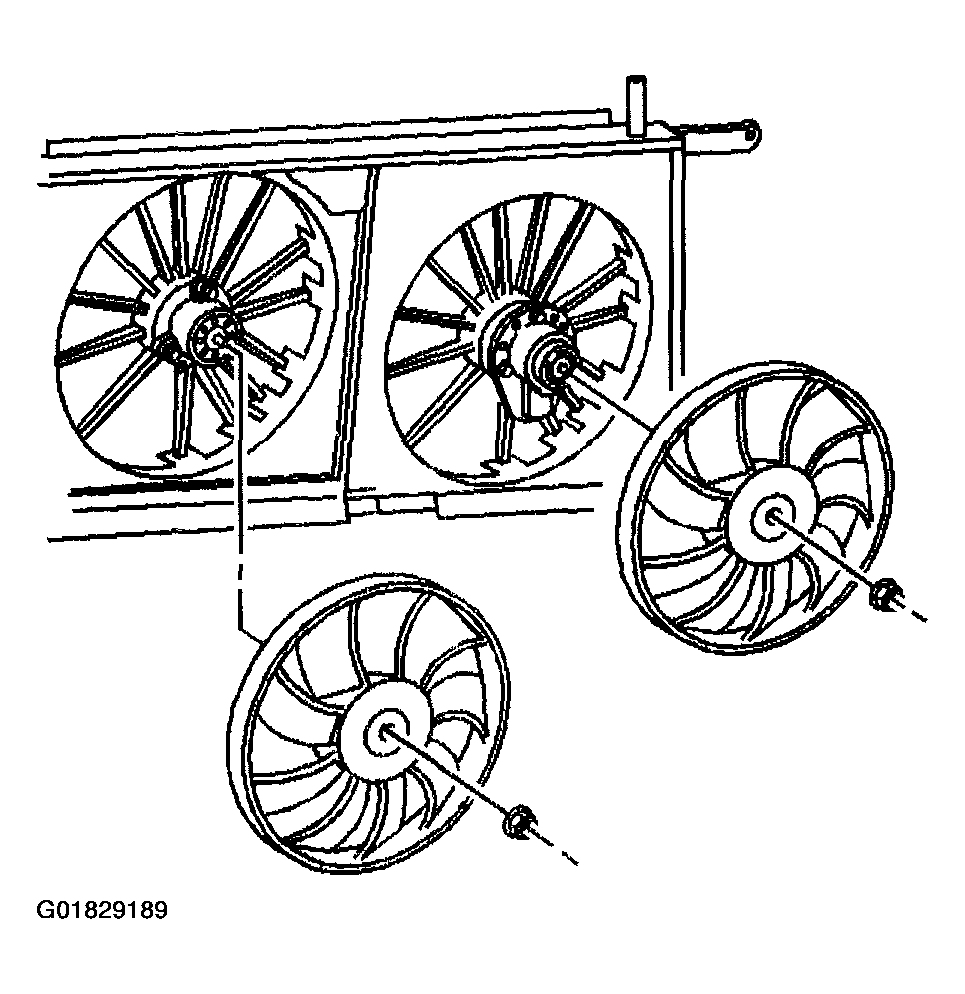

- Install the cooling fan.NOTE: Refer to FASTENER NOTICE .
Important: Turn the cooling fan nut counterclockwise to tighten.
- Install the cooling fan nut.
Tighten
Tighten the nut to 6 N.m (53 lb in).
- Install the cooling fans with the cooling fan shroud. Refer to COOLING FAN REPLACEMENT - Electric .
