Water Outlet Installation

  1. Install the thermostat.

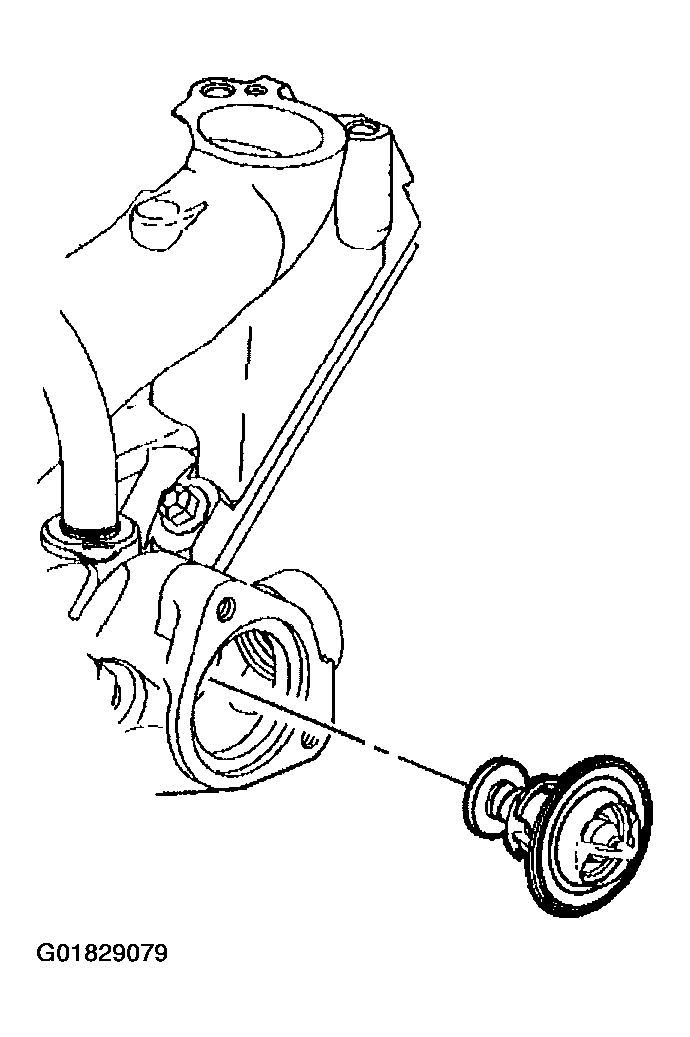

    Fig 1: Thermostat
    G01829079Courtesy of GENERAL MOTORS CORP.
  2. Install the water outlet.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the water outlet bolts.

    Tighten

    Tighten the water outlet bolts to 25 N.m (18 lb ft).

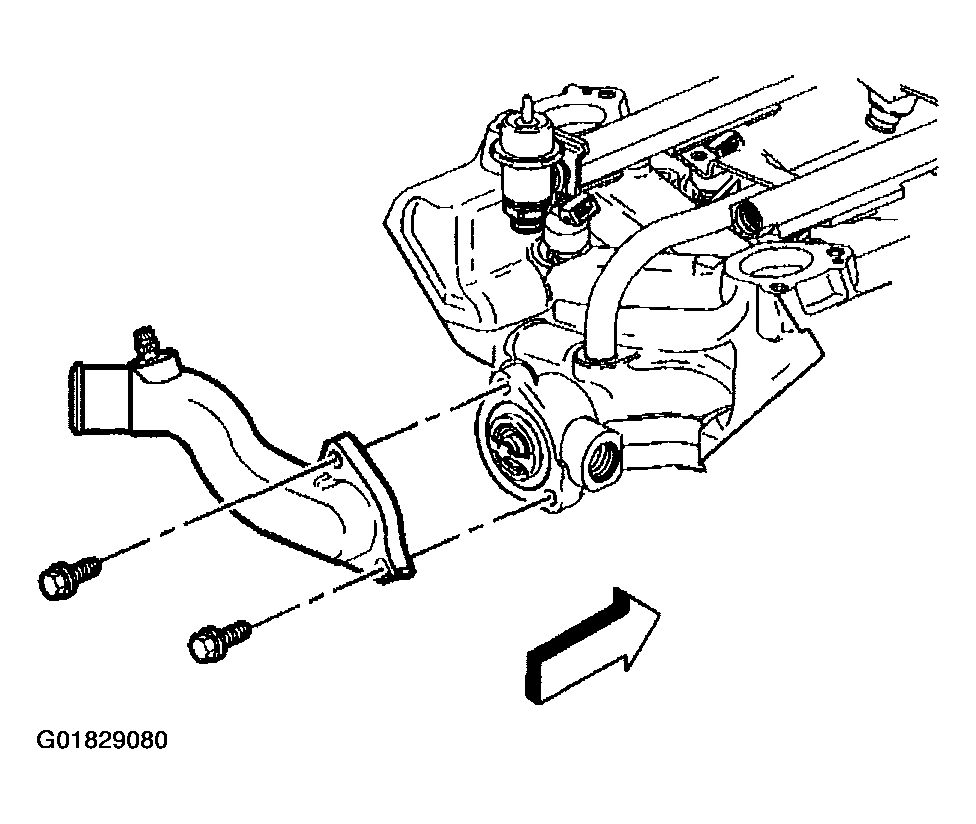

    Fig 2: Water Outlet
    G01829080Courtesy of GENERAL MOTORS CORP.
