Navigation System Connector End Views

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

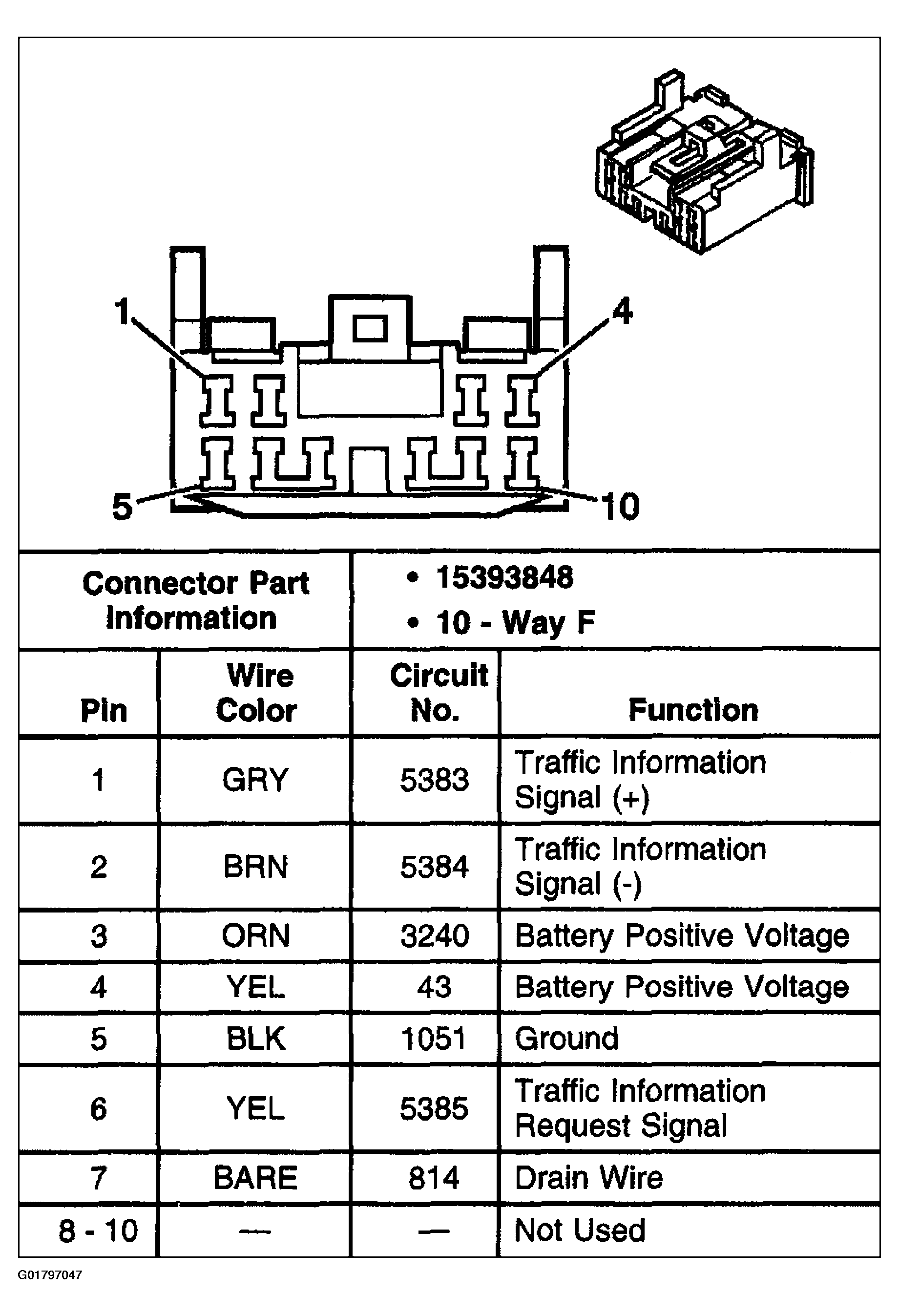

Fig 1: Traffic Information Receiver (VICS)

Courtesy of GENERAL MOTORS CORP.
