Removal Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the IP compartment from the IP. Refer to COMPARTMENT REPLACEMENT - INSTRUMENT PANEL (I .
  2. Release the tabs retaining the audio video wiring harness to the IP compartment.
  3. Remove the audio video wiring harness from the IP compartment.

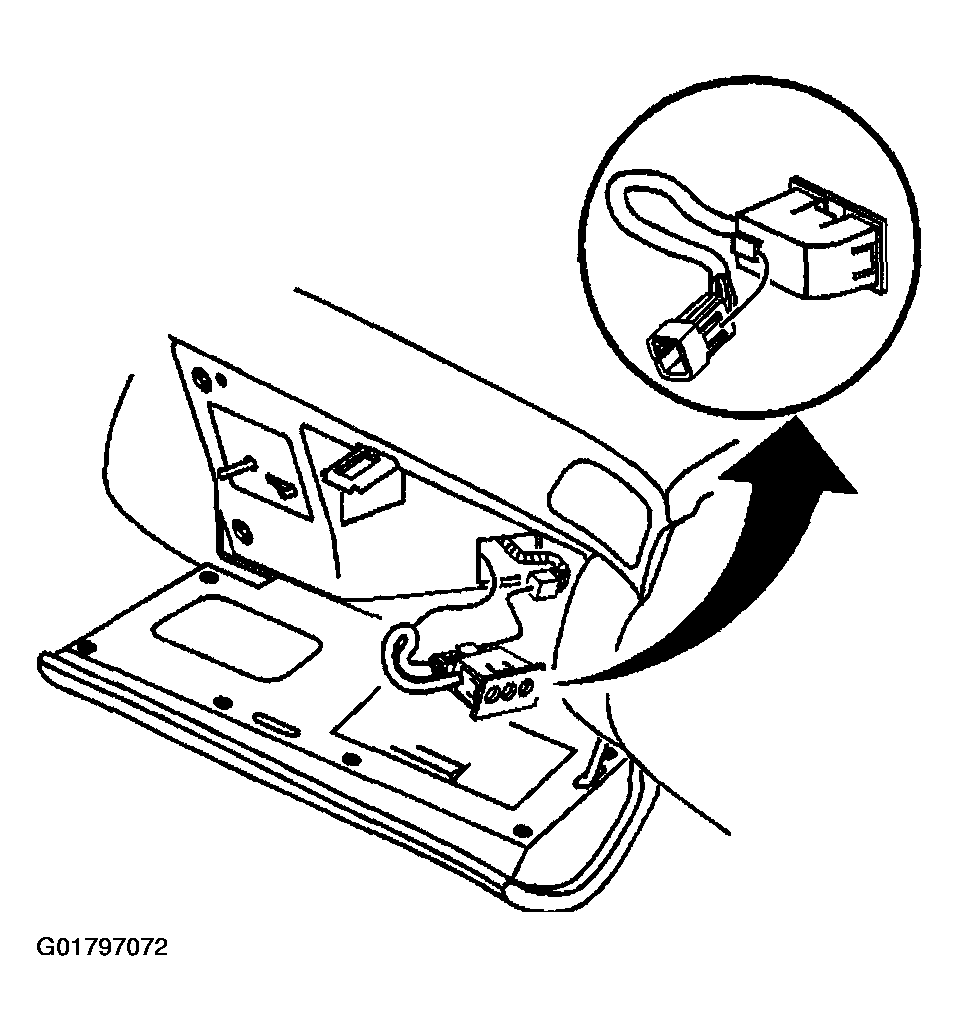

    Fig 1: Removing Audio Video Wiring Harness & IP Compartment
    G01797072Courtesy of GENERAL MOTORS CORP.
