Removal Procedure

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove both front filler panels. Refer to Filler Panel Replacement - Upper .
  3. Using the J 38778  remove the push-in retainers (1) from the sight shield (2).
  4. Remove the radiator support sight shield (2).

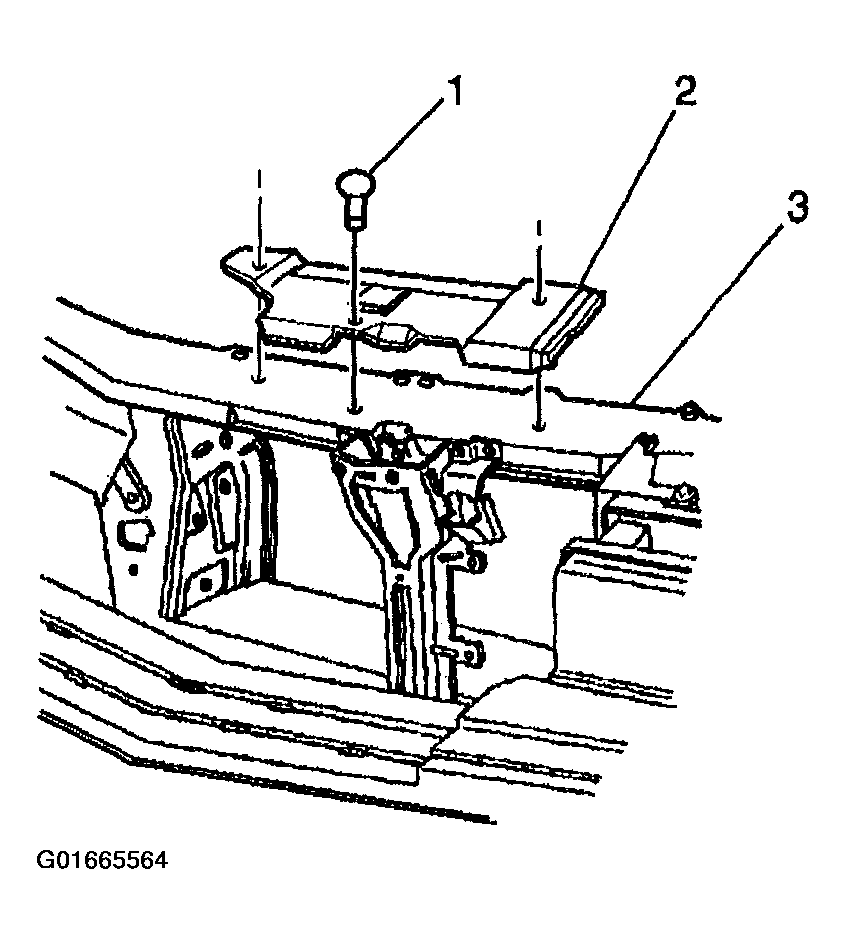

    Fig 1: Radiator Support Sight Shield & Components
    G01665564Courtesy of GENERAL MOTORS CORP.
