Installation Procedure
WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.

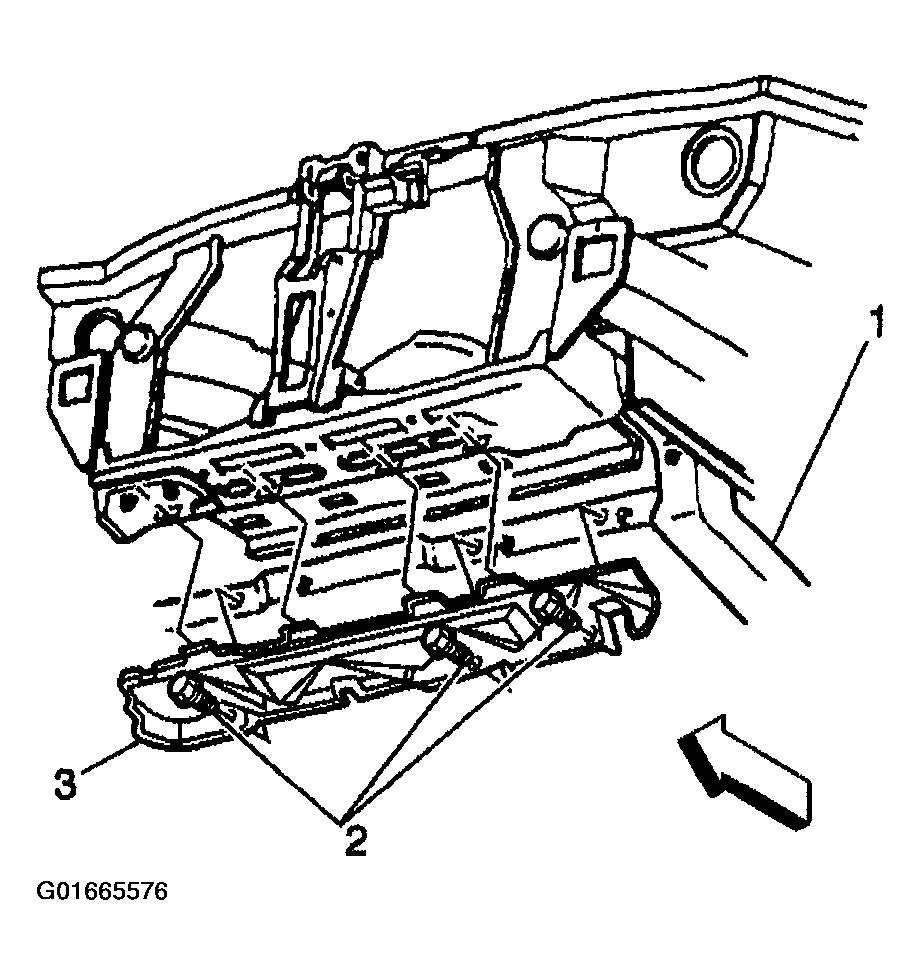

- Insert the tabs on the shield into the engine compartment panel.
- Align the tabs on the splash shield with the slots in the engine compartment panel.
- Install the bolts (2).
Tighten
Tighten the bolts to 6 N.m (53 lb in).
- Lower the vehicle.
