Removal Procedure

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air compressor assembly from the vehicle. Refer to Air Compressor Replacement .

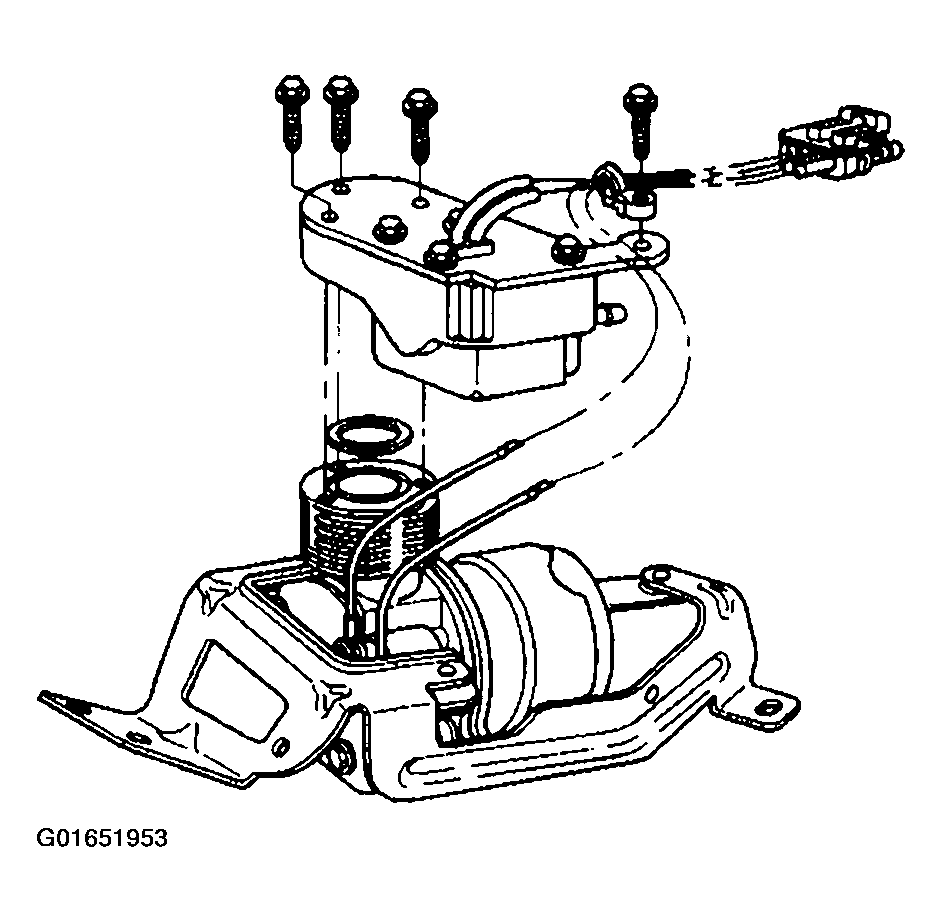

    Fig 1: Removing Head Bolts & Air Compressor Head From Air Compressor Assembly
    G01651953Courtesy of GENERAL MOTORS CORP.
  2. Remove the air dryer. Refer to Automatic Level Control Air Dryer Replacement .
  3. Cut the harness tie.
  4. Remove the bolt and the harness tie.

    Important:  Note the wire colors and the terminal numbers to ensure correct assembly.

  5. Remove the 2 harness ties and the wrap from the wires.
  6. Remove 2 wire terminals from the air compressor connector.
  7. Remove 3 head bolts and the air compressor head from the air compressor assembly.
  8. Remove the gasket from the air compressor head or the air compressor assembly.
