Installation Procedure
WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Refer to FASTENER NOTICE
in Cautions and Notices.

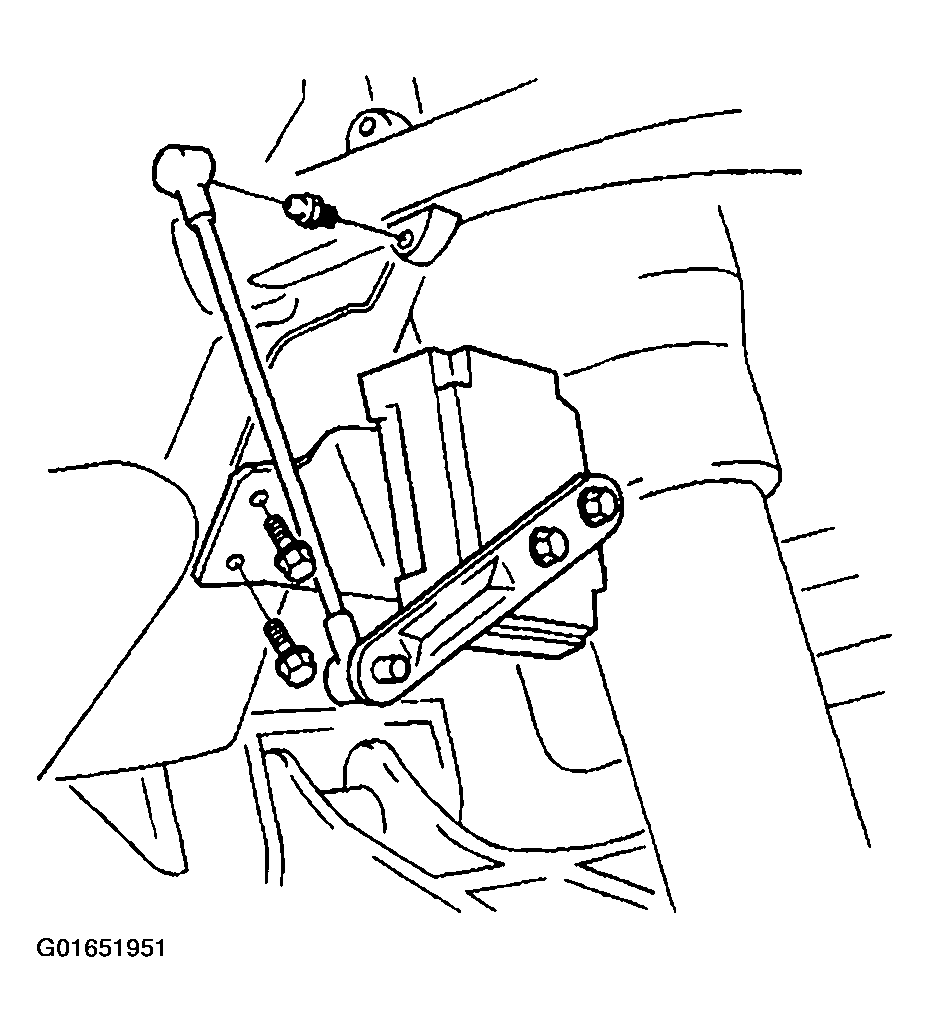

- Install the bracket on the height sensor with four nuts.
Tighten
Tighten four nuts to 3 N.m (26 lb in).
- Install the height sensor with the bracket on the vehicle with two bolts.
Tighten
Tighten two bolts to 6 N.m (54 lb in).
- Connect the link to the height sensor actuating arm and the suspension control arm.
- Lower the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
- Adjust the height sensor. Refer to Automatic Level Control Sensor Adjustment .
