Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the new washer pump grommet into the washer solvent container.
  2. Lubricate the washer pump intake nozzle with clean water to aid in the installation of the washer pump (5) into the washer container.
  3. Install the washer pump in the washer solvent container by snapping into place.
  4. Ensure the washer pump is secure to the washer solvent container.
  5. Connect the electrical connector (7) to the washer pump.
  6. Connect the washer hose (2) to the washer pump.
  7. Install the lower air deflector. Refer to AIR DEFLECTOR REPLACEMENT - FRONT .
  8. Open the hood.
  9. Fill the washer solvent container.
  10. Close the hood.
  11. Inspect the wiper washer system operation.

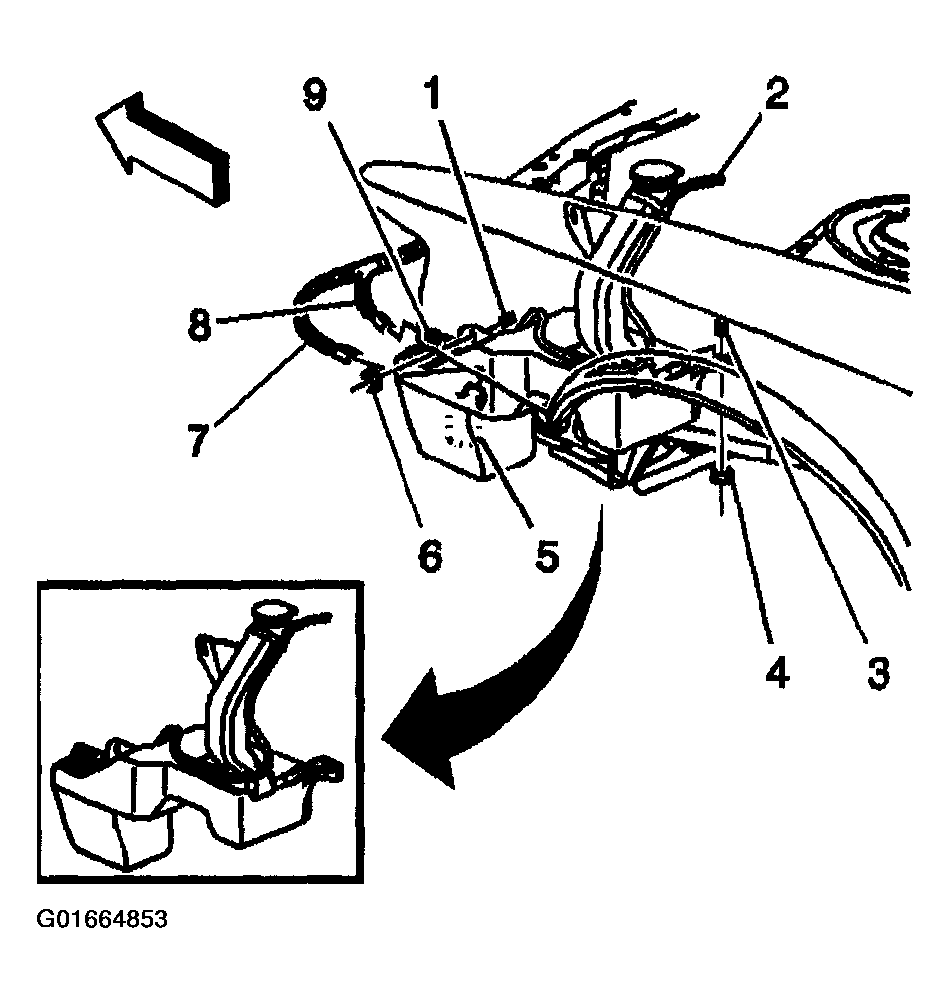

    Fig 1: Installing Washer Pump
    G01664853Courtesy of GENERAL MOTORS CORP.
