Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.

Position the wiper transmission assembly in the plenum chamber through the air inlet shroud upper panel openings.

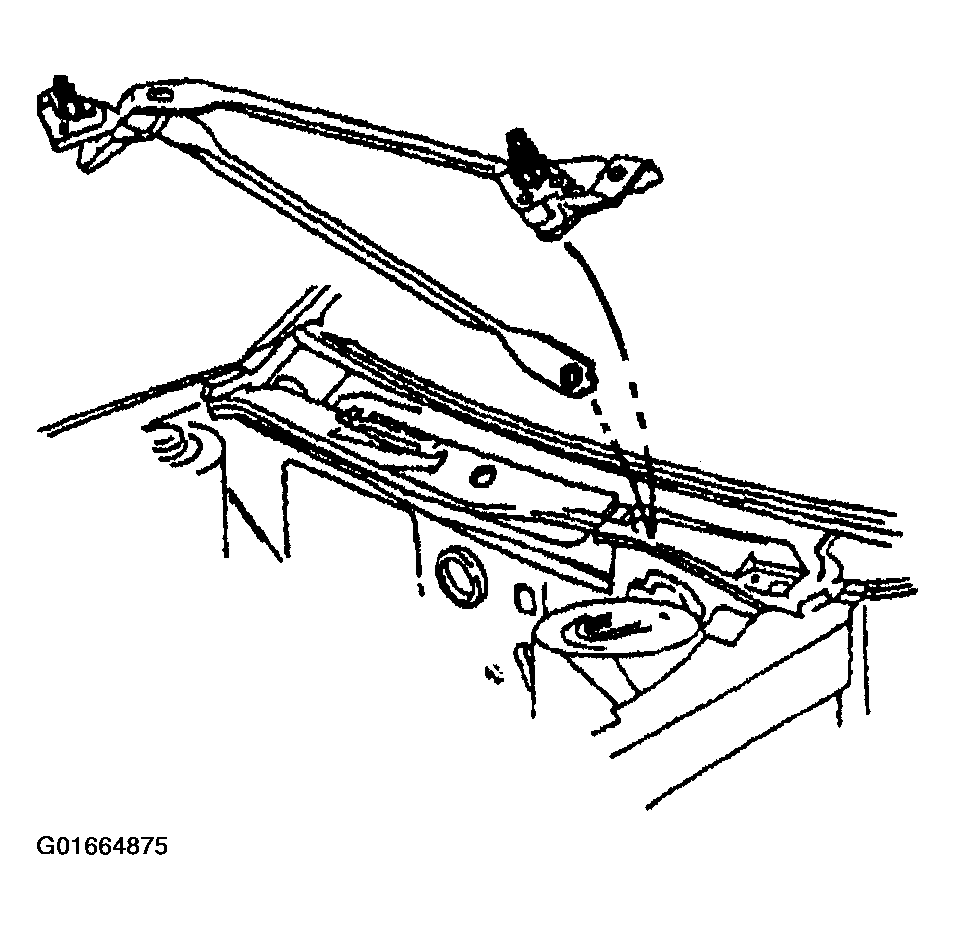

Fig 1: View of Wiper Transmission Assembly
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the 6 bolts.
Tighten

Tighten the bolts to 89 N.m (71 lb in).

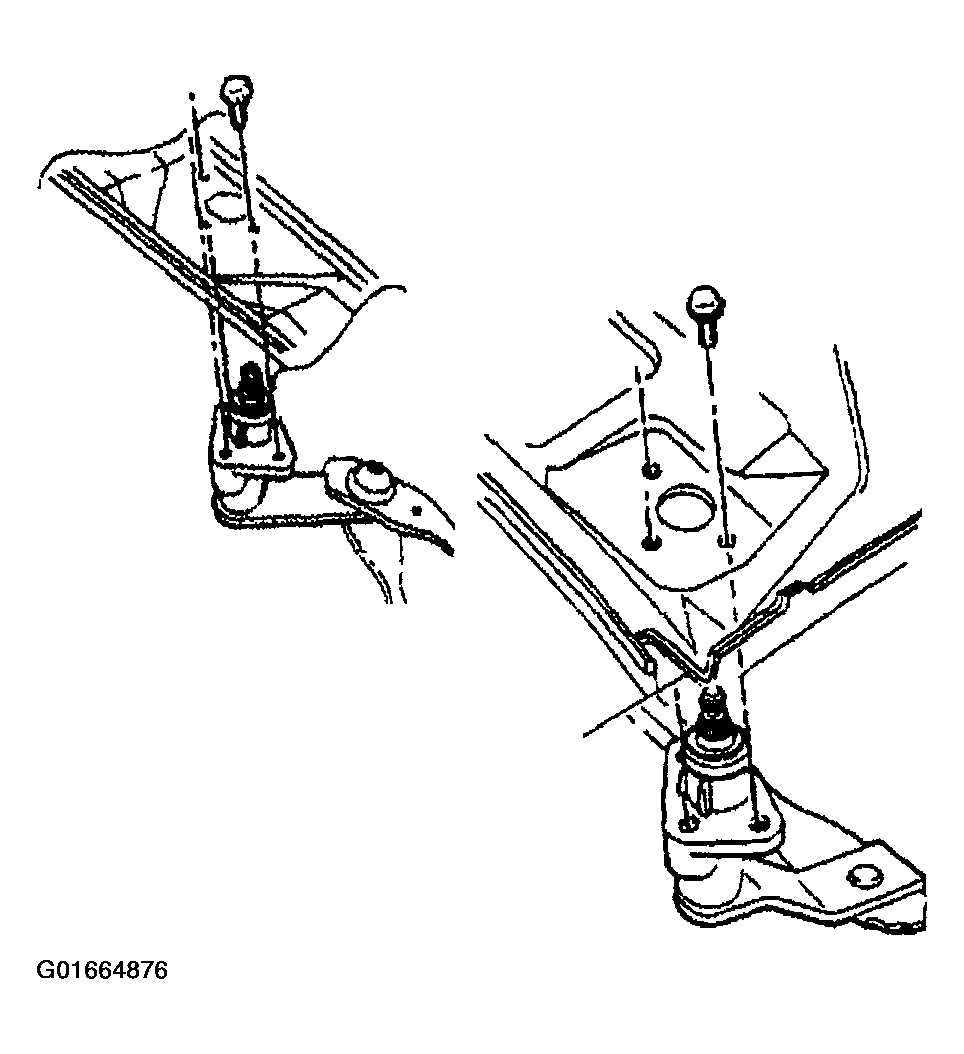

Fig 2: Installing Bolts
Courtesy of GENERAL MOTORS CORP.
Install the transmission drive link socket to the wiper motor crank arm ball using the J 39529.
Install the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT .
Install the wiper arms. Refer to Wiper Arm Replacement .

Fig 3: Using J 39529
Courtesy of GENERAL MOTORS CORP.
