Cooling System Connector End Views

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

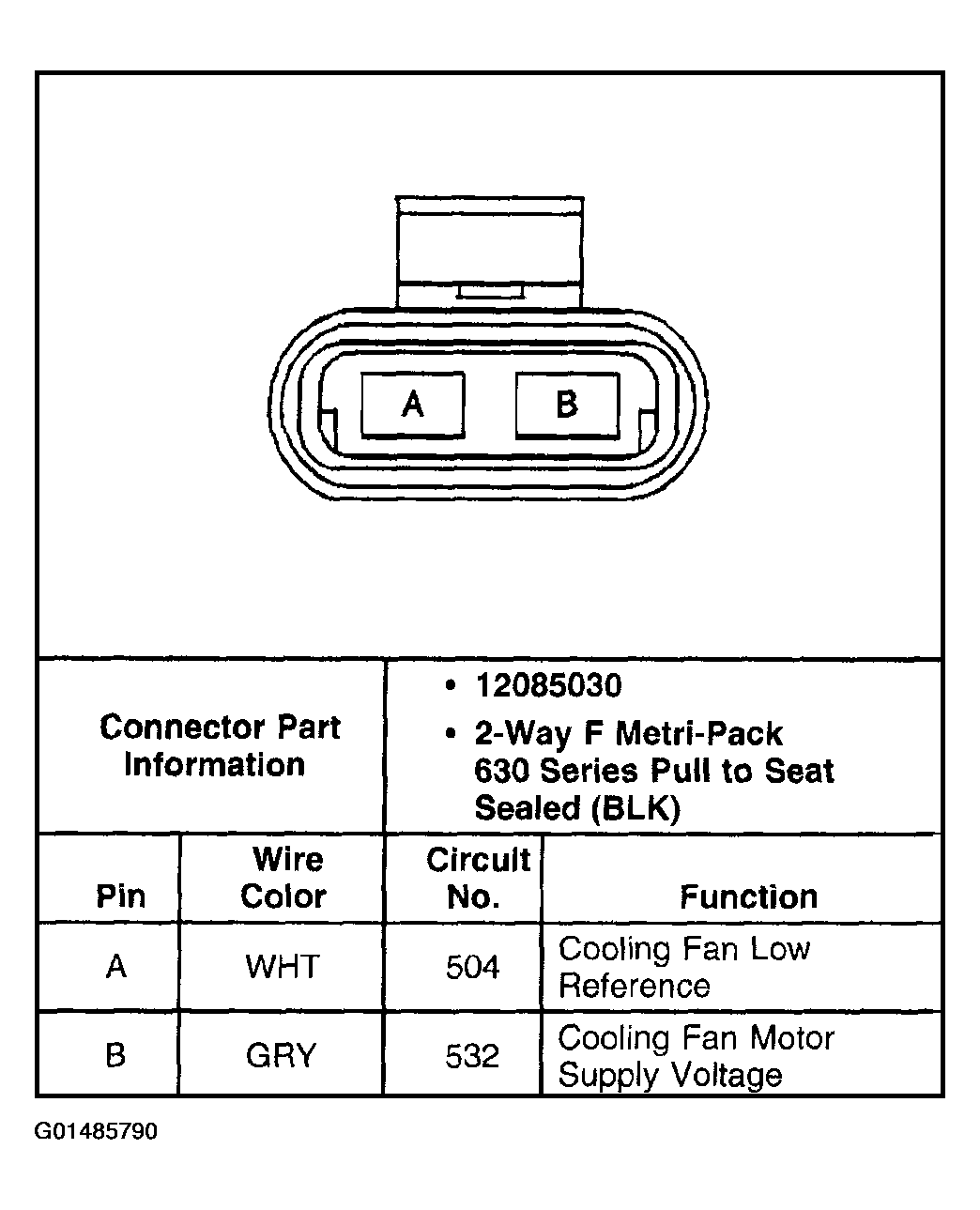

Fig 1: Cooling Fan-Left Connector End View

Courtesy of GENERAL MOTORS CORP.

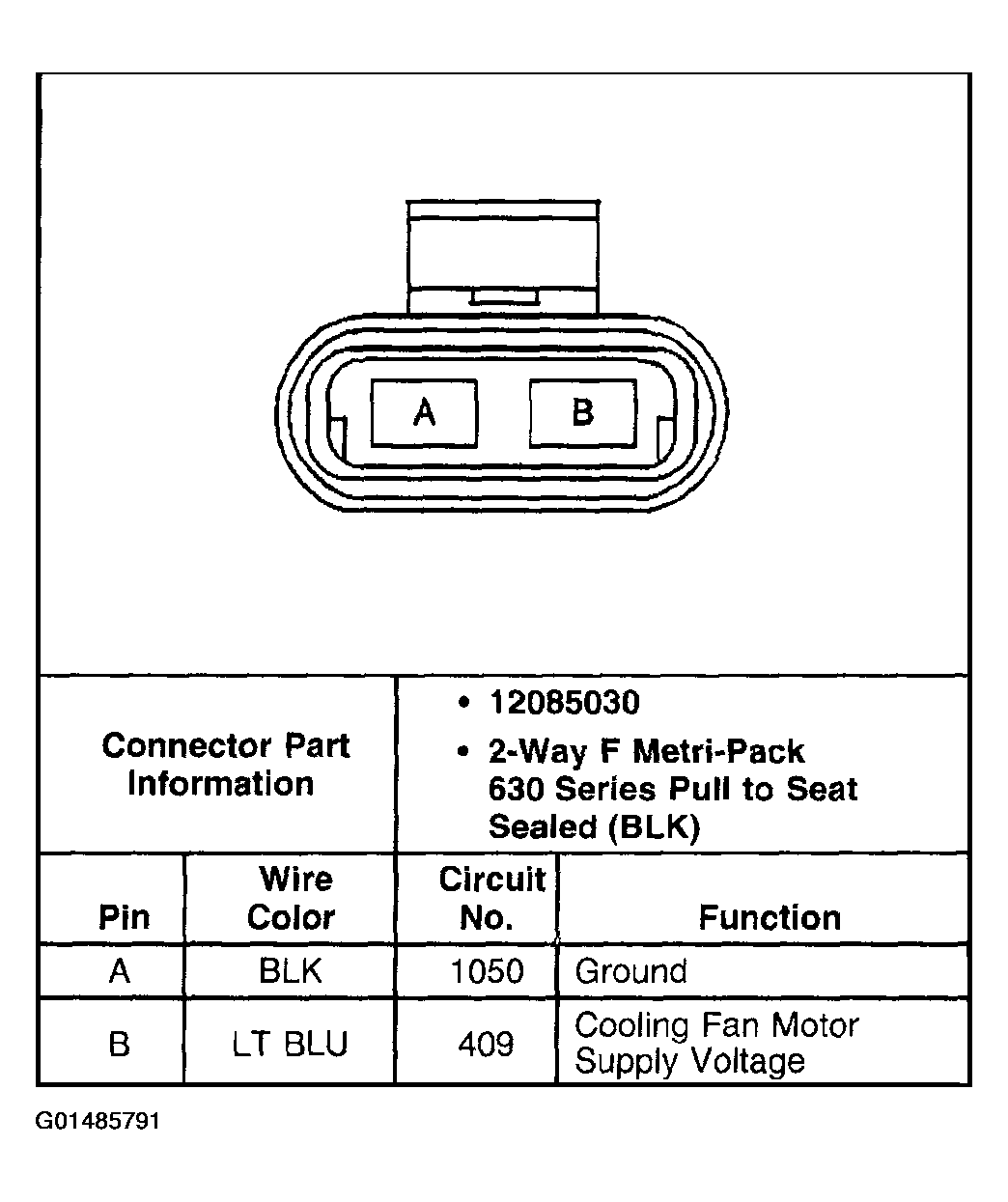

Fig 2: Cooling Fan-Right Connector End View

Courtesy of GENERAL MOTORS CORP.
