Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Position the fog lamp to the front bumper fascia.

Fig 1: Installing Front Fog Lamp To Front Bumper Fascia
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the fog lamp nuts to the fog lamp.
Tighten

Tighten the nuts to 2 N.m (18 lb in).

Fig 2: Installing Front Fog Lamp Nuts To Fog Lamp
Courtesy of GENERAL MOTORS CORP.
Install the fog lamp bulb/socket to the fog lamp rotating clockwise until fully seated.
Install the front fender liner. Refer to FENDER LINER REPLACEMENT in Body Front End.

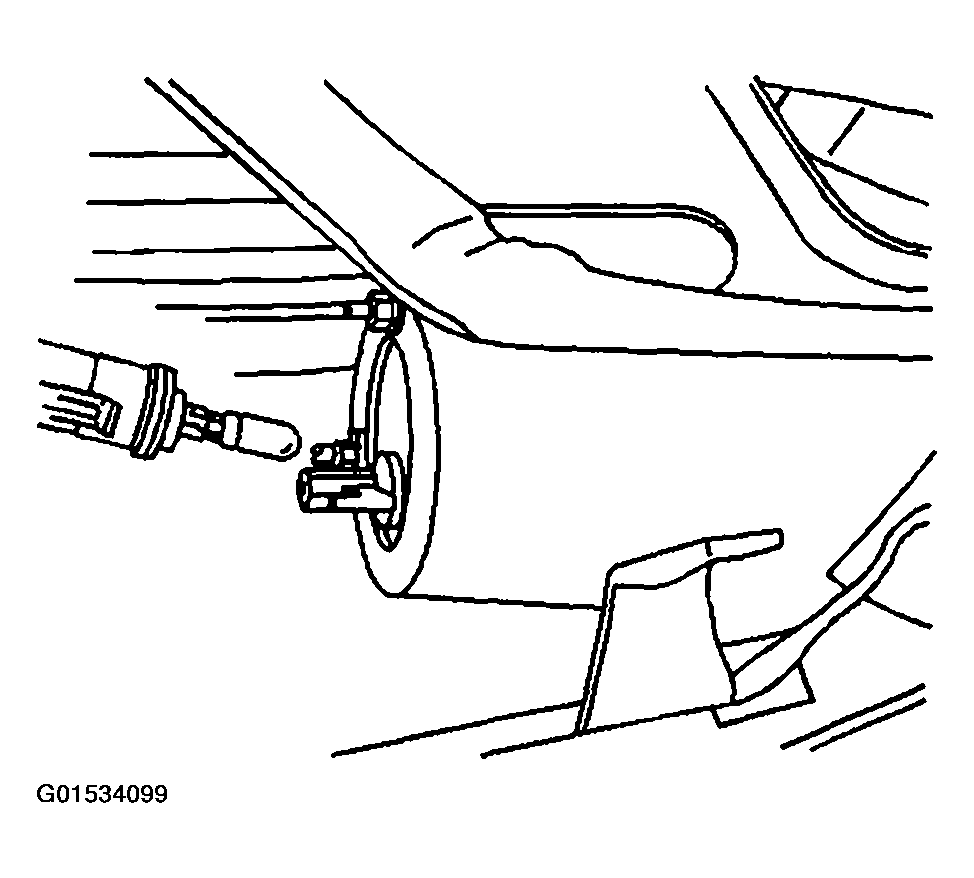

Fig 3: Installing Front Fog Lamp Bulb/Socket To Fog Lamp
Courtesy of GENERAL MOTORS CORP.
