Schematic and Routing Diagrams

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

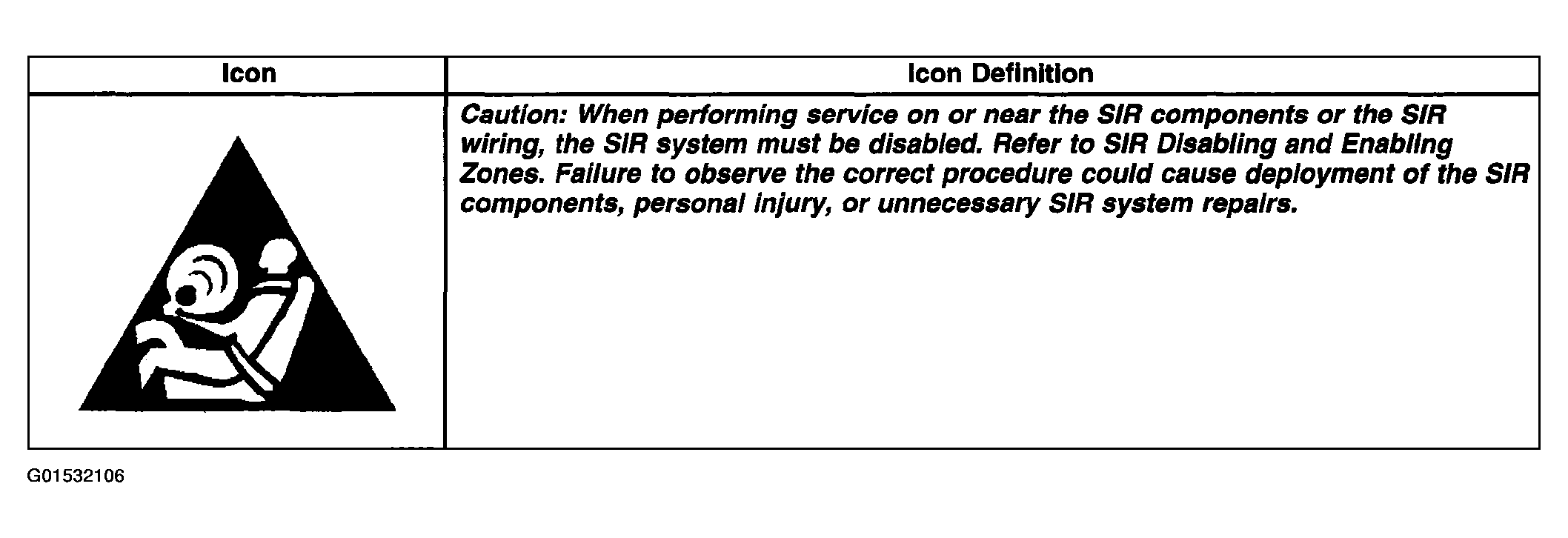

Fig 1: Lighting Systems Schematic Icons

G01532106

Courtesy of GENERAL MOTORS CORP.

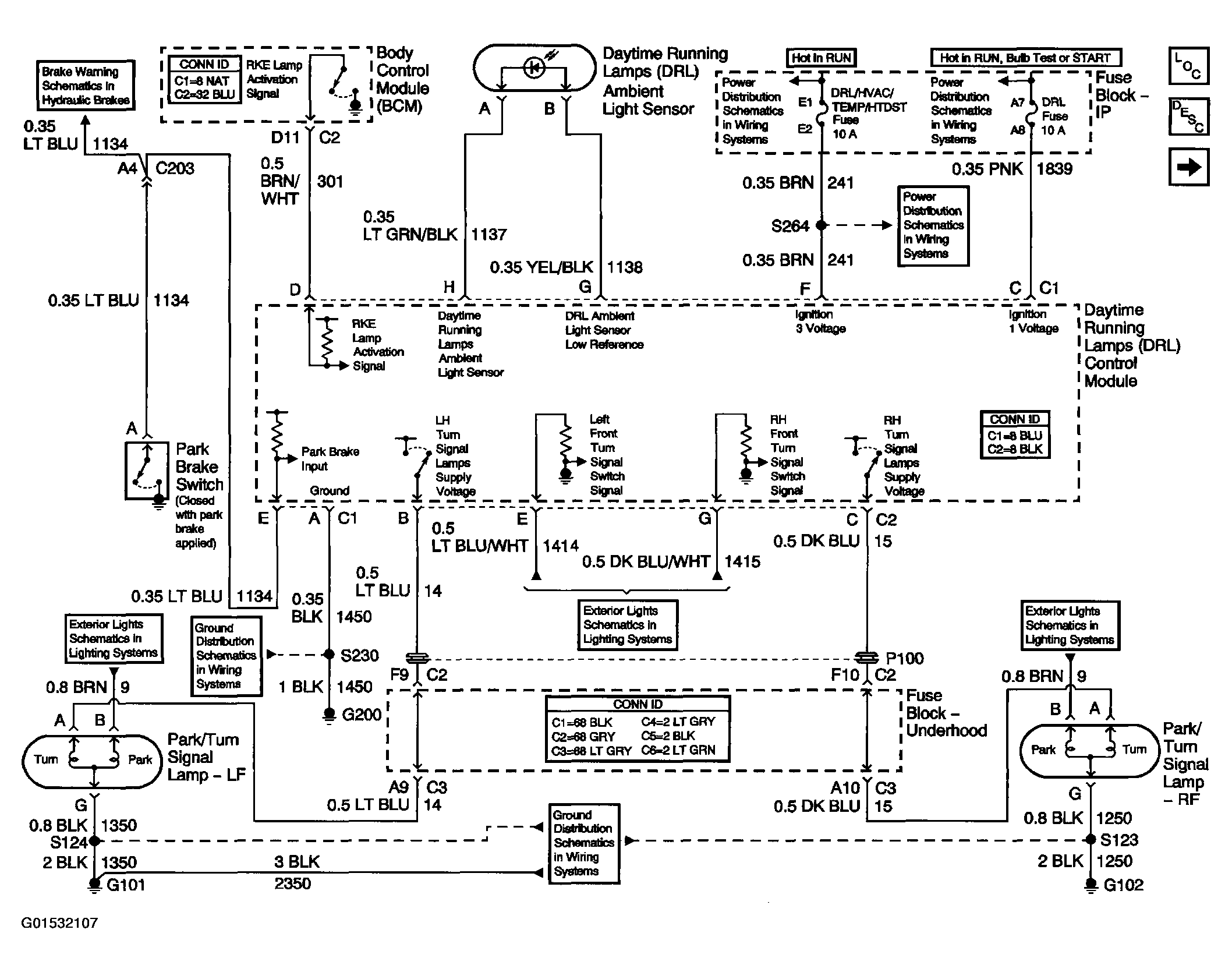

Fig 2: Headlights/DRL Schematic (Park Brake Indicator Switch And Ambient Light Sensor) (Domestic)

G01532107

Courtesy of GENERAL MOTORS CORP.

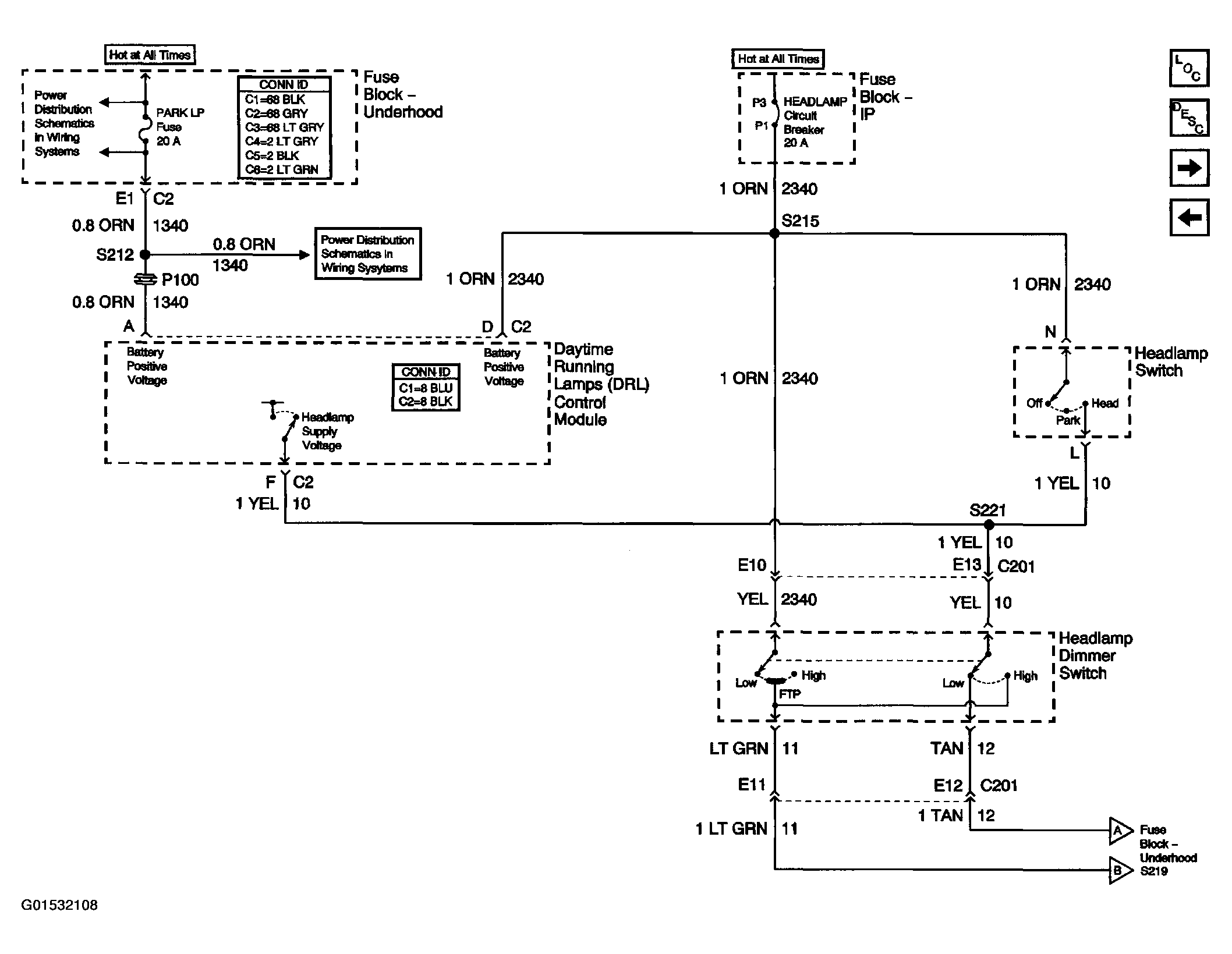

Fig 3: Headlights/DRL Schematic (Headlamp And I/P Lamp Dimmer Switch) (Domestic)

G01532108

Courtesy of GENERAL MOTORS CORP.

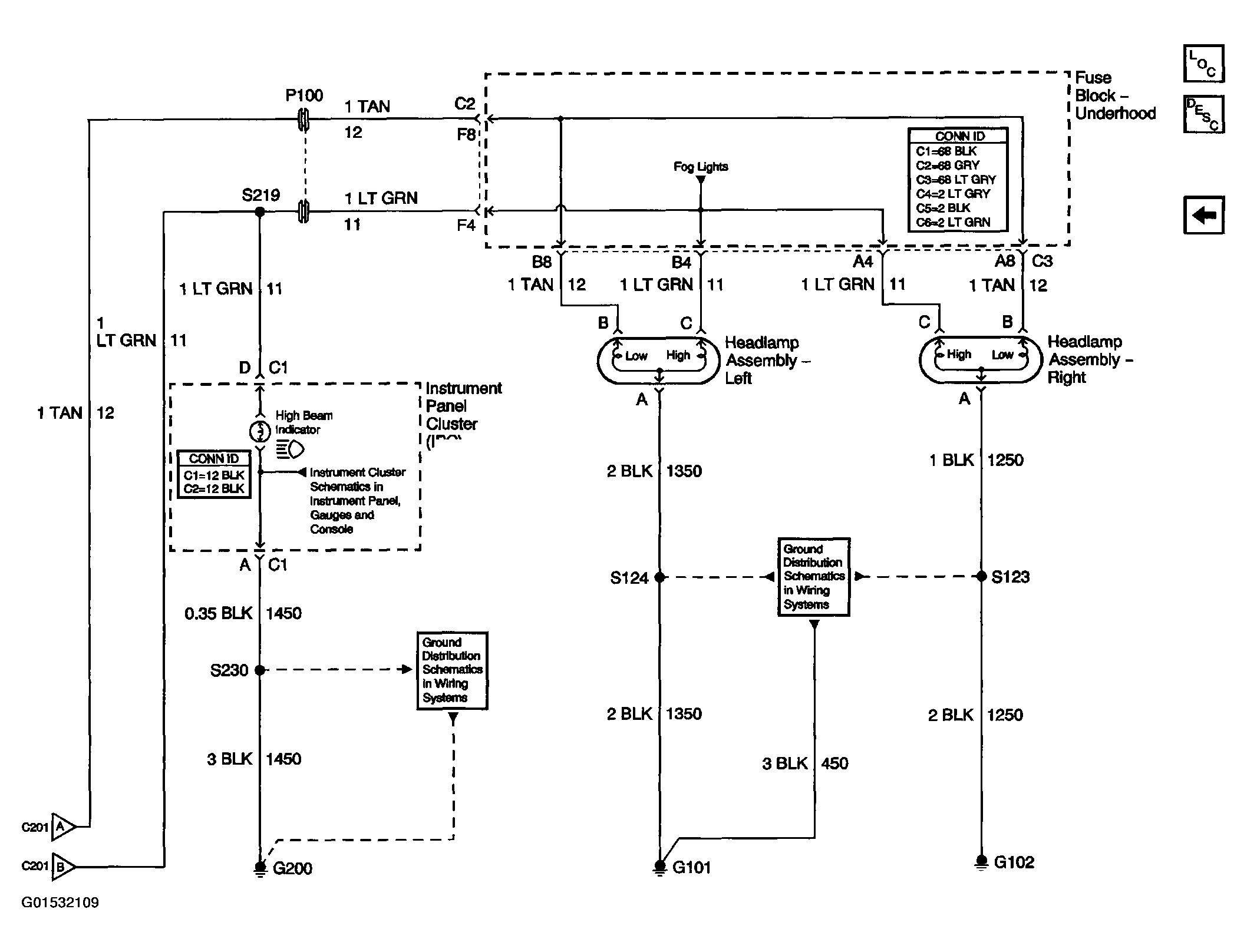

Fig 4: Headlights/DRL Schematic (Headlamps) (Domestic)

G01532109

Courtesy of GENERAL MOTORS CORP.

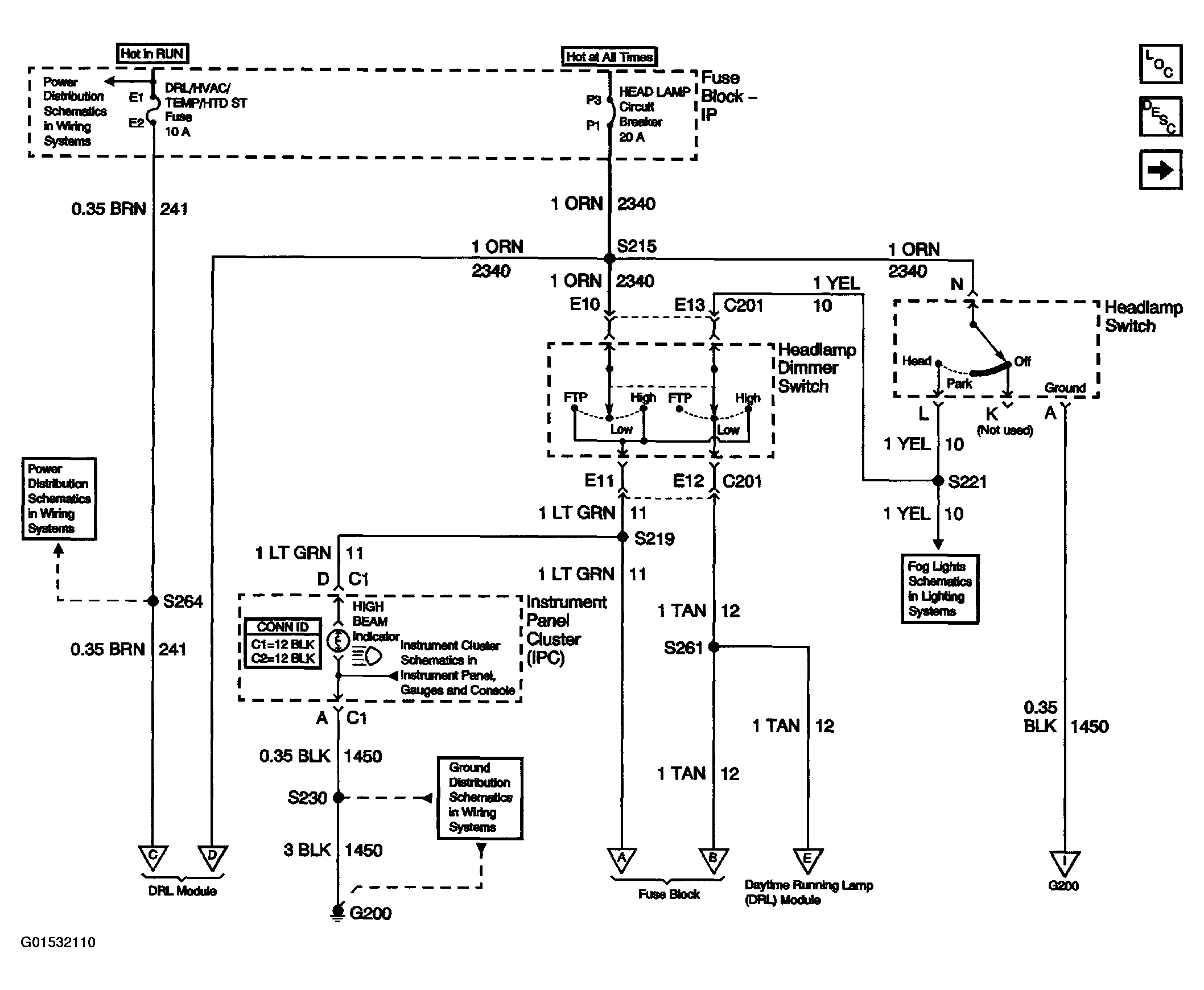

Fig 5: Headlights/DRL Schematic (DRL/Headlamp And I/P Lamp Dimmer Switch) (Export)

G01532110

Courtesy of GENERAL MOTORS CORP.

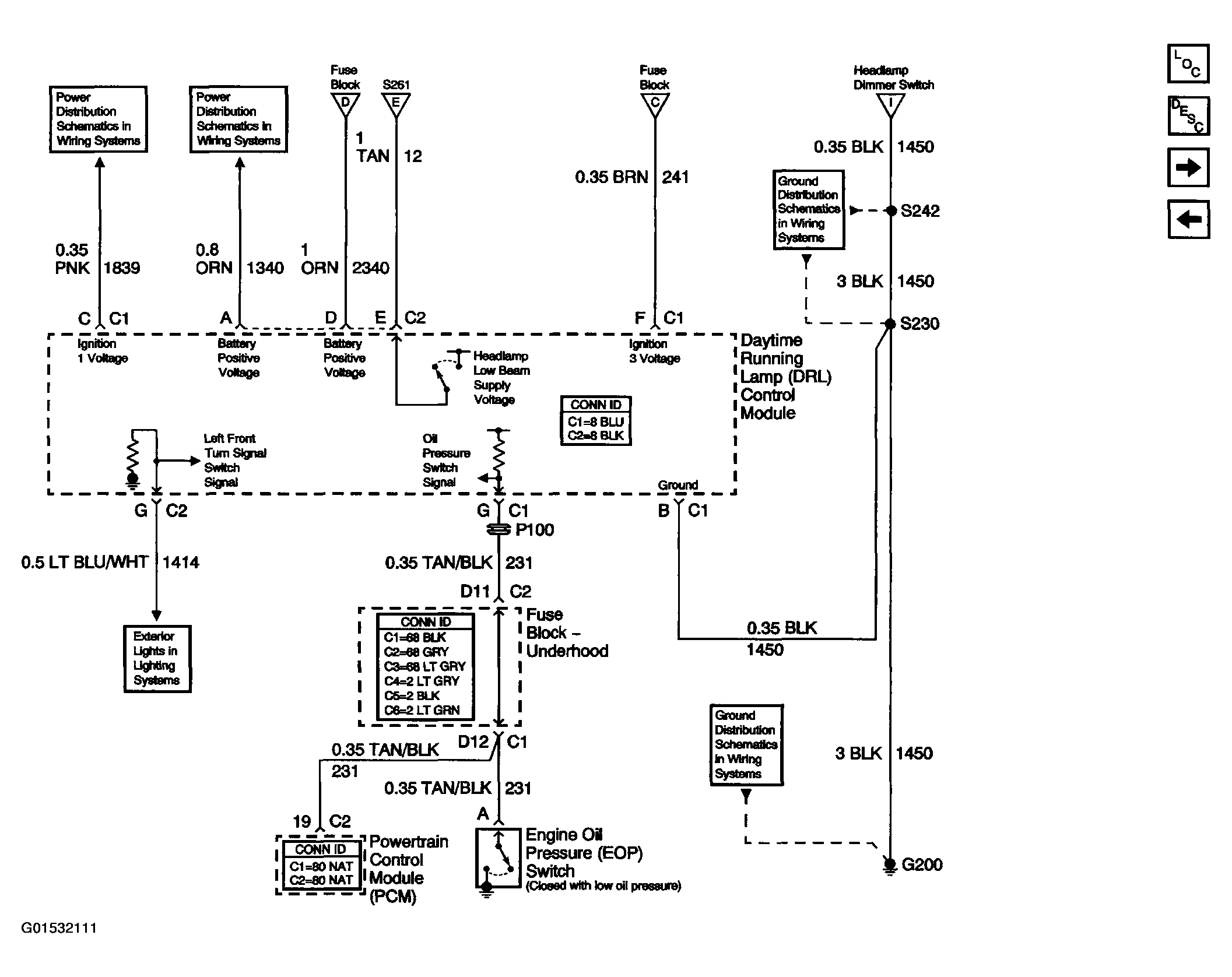

Fig 6: Headlights/DRL Schematic (Daytime Running Lamps Control Module) (Export)

G01532111

Courtesy of GENERAL MOTORS CORP.

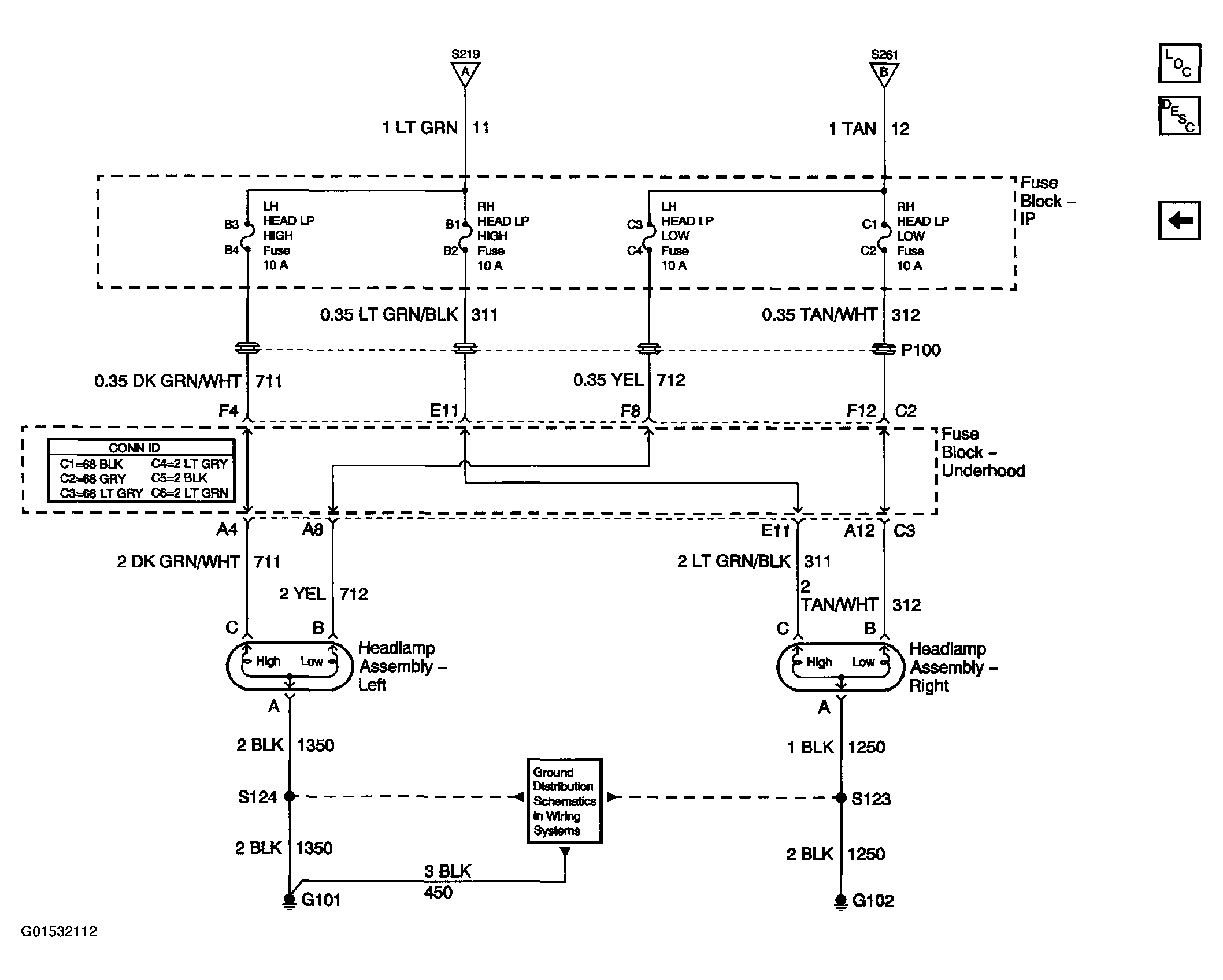

Fig 7: Headlights/DRL Schematic (Headlights) (Export)

G01532112

Courtesy of GENERAL MOTORS CORP.

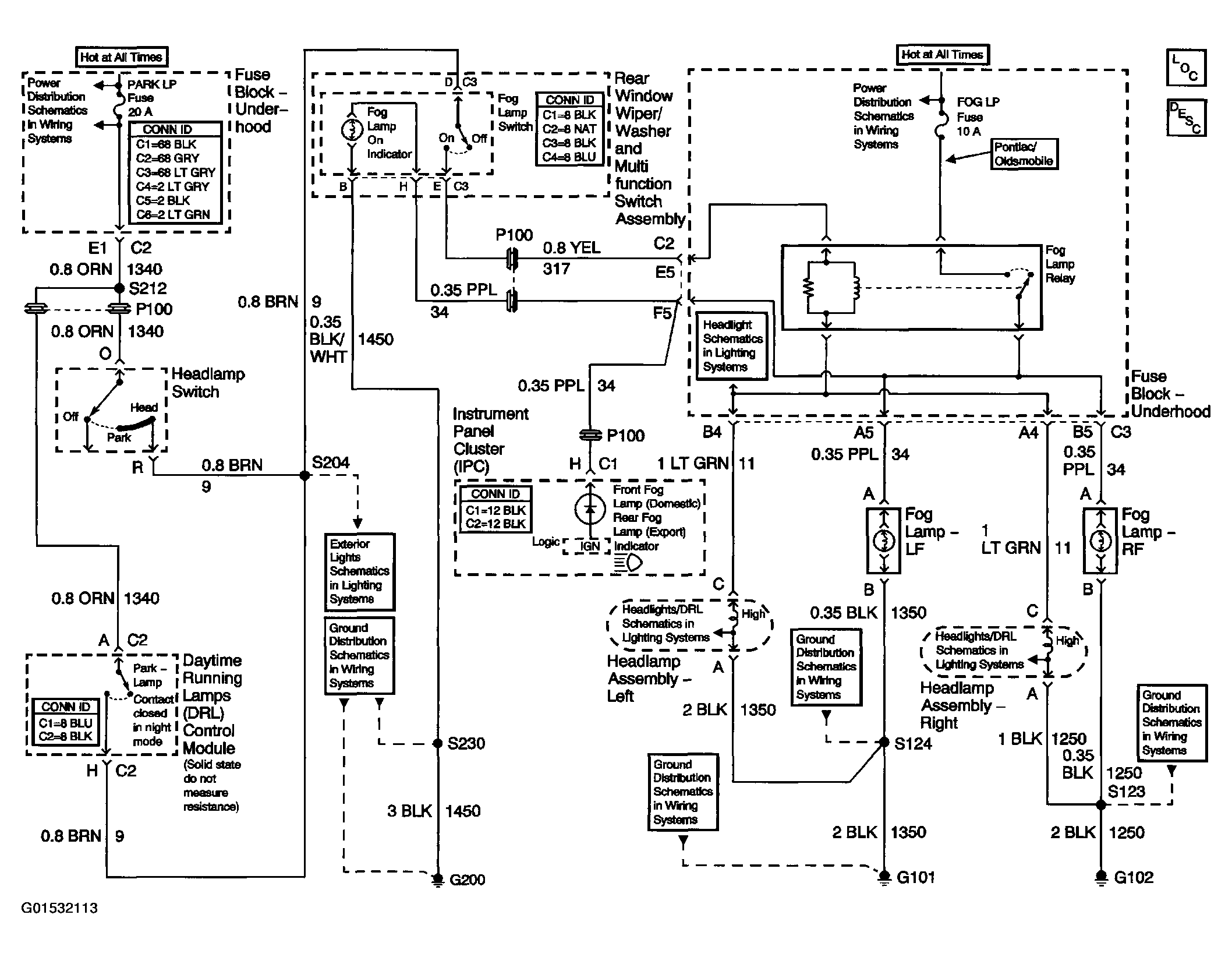

Fig 8: Fog Light Schematic (Domestic)

G01532113

Courtesy of GENERAL MOTORS CORP.

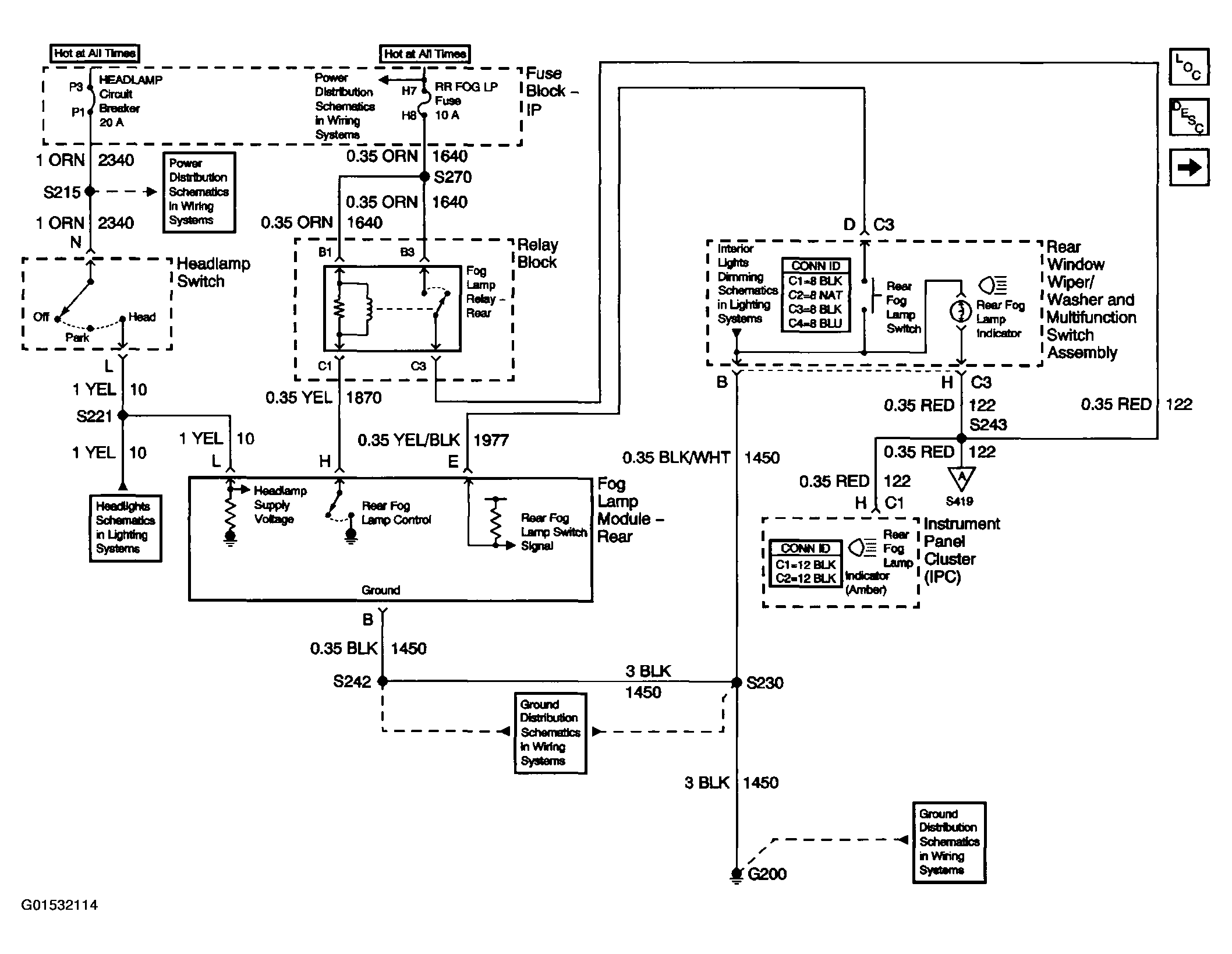

Fig 9: Rear Fog Lights Schematic (Export) (1 Of 2)

G01532114

Courtesy of GENERAL MOTORS CORP.

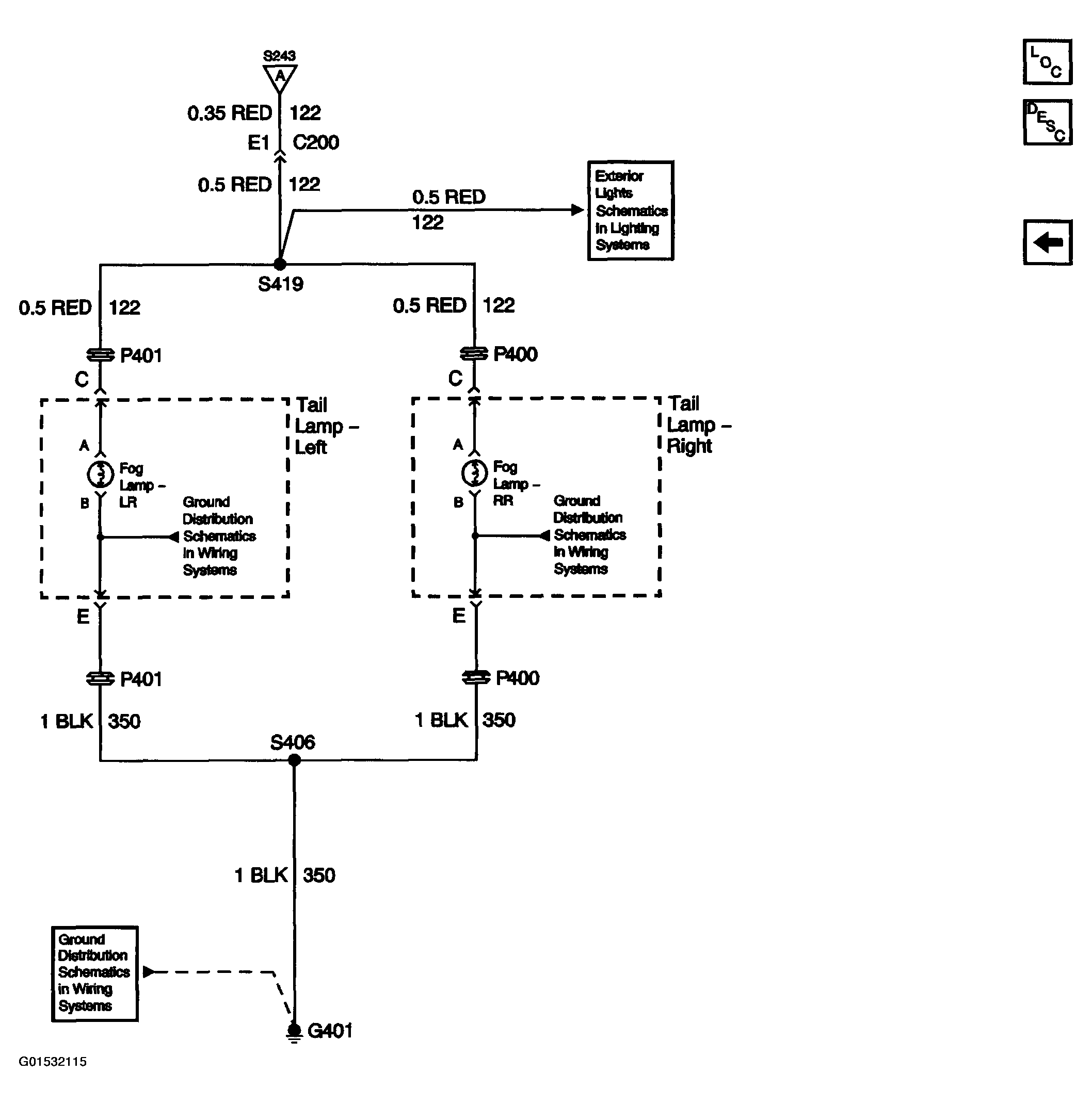

Fig 10: Rear Fog Lights Schematic (Export) (2 Of 2)

G01532115

Courtesy of GENERAL MOTORS CORP.

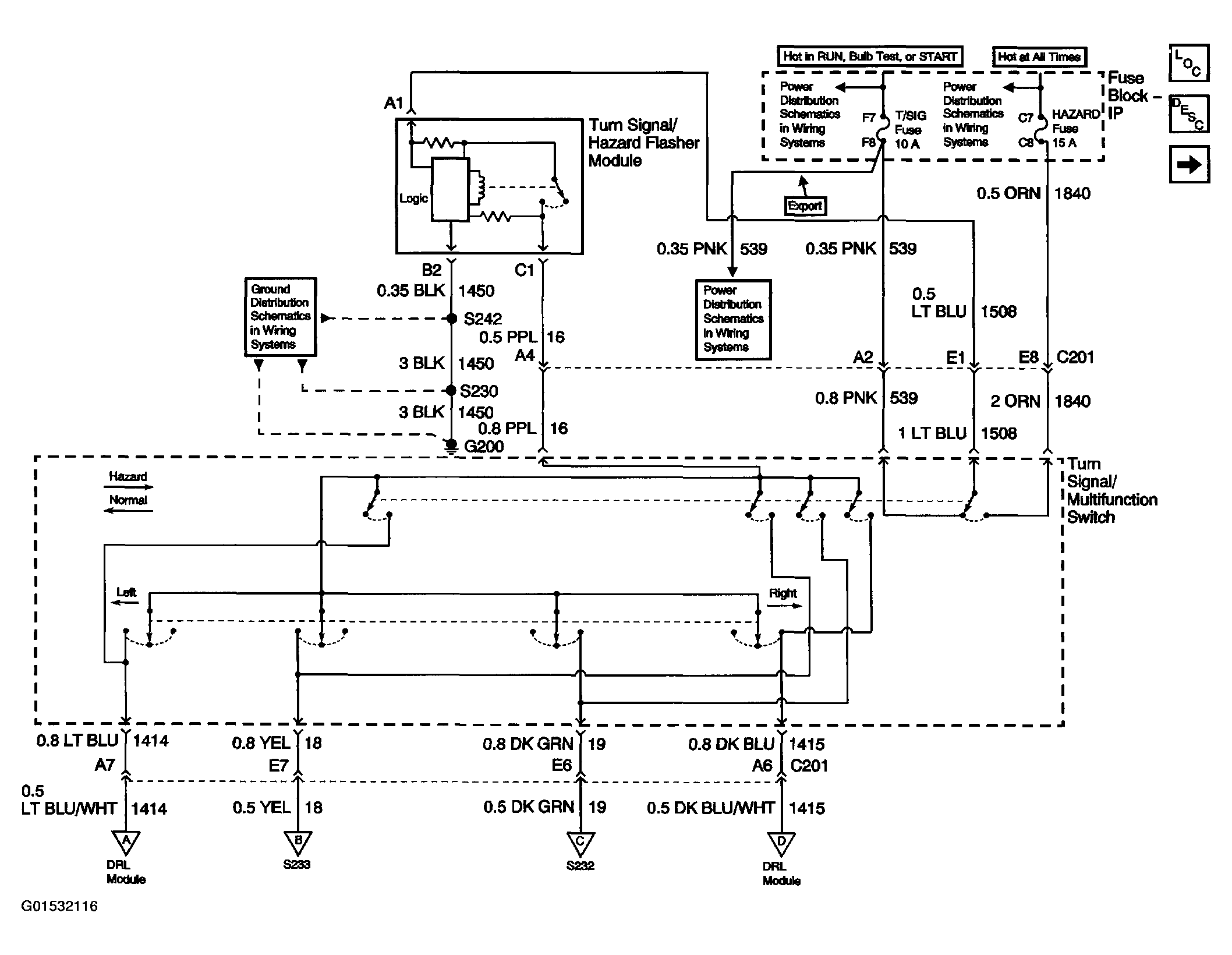

Fig 11: Exterior Light Schematic (Hazard Lamp/Turn Signal Flasher And Turn Signal Switch) (Domestic)

G01532116

Courtesy of GENERAL MOTORS CORP.

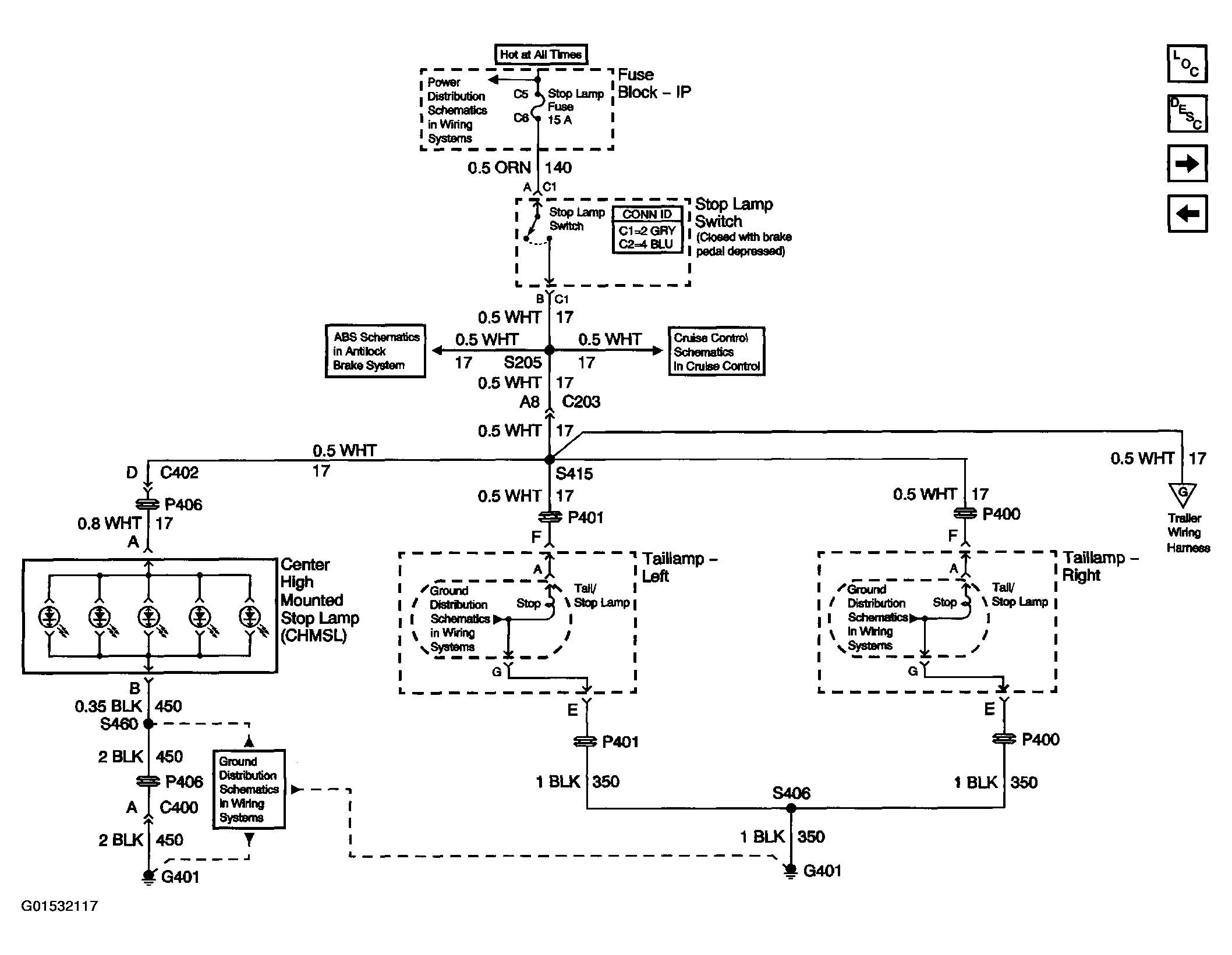

Fig 12: Exterior Light Schematic (Stop Lamp Switch And Center High Mounted Stop Lamp) (Domestic)

G01532117

Courtesy of GENERAL MOTORS CORP.

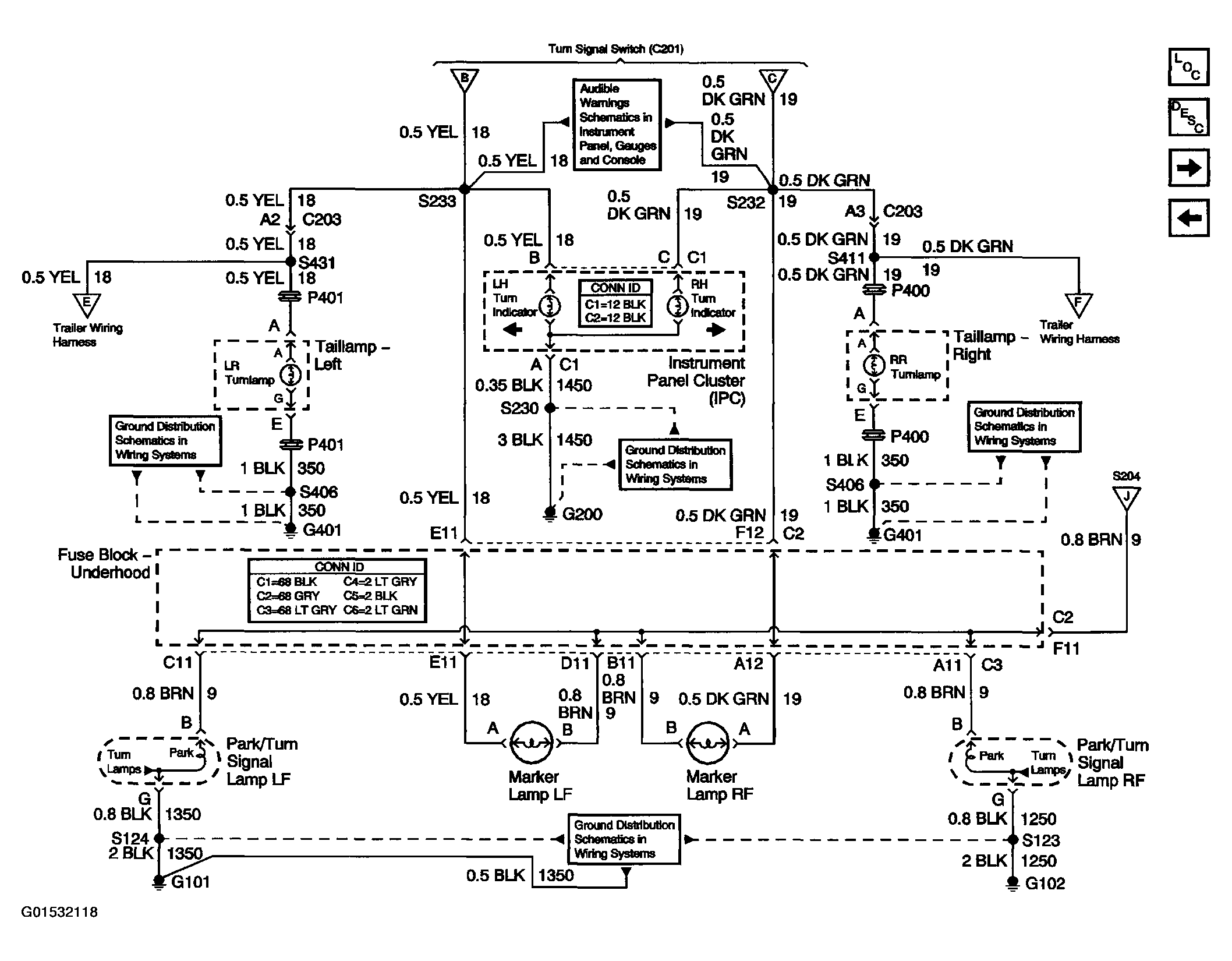

Fig 13: Exterior Light Schematic (Tail Lamps, Side Markers And Park/Turn Lamps) (Domestic)

G01532118

Courtesy of GENERAL MOTORS CORP.

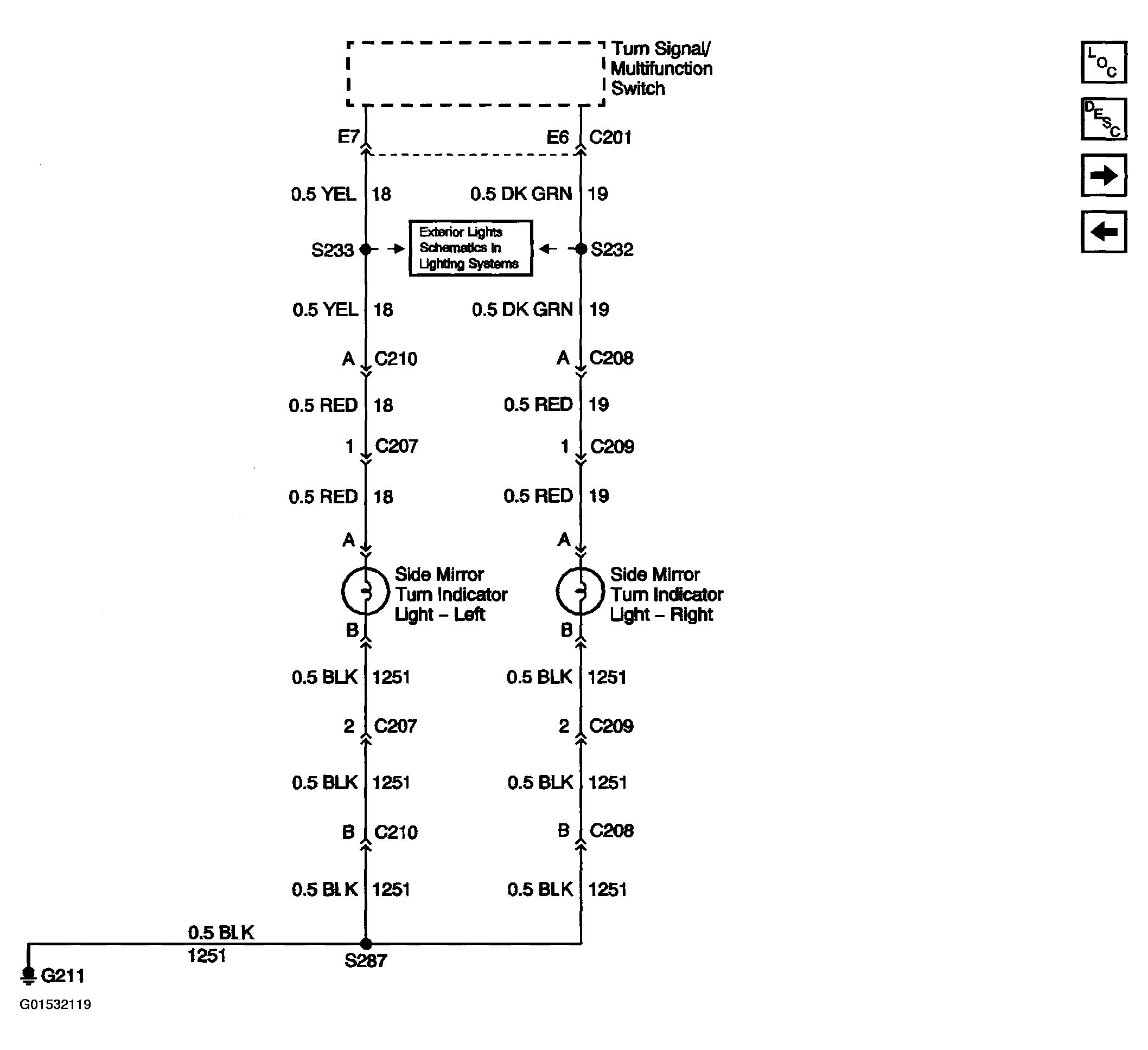

Fig 14: Exterior Light Schematic (Side Mirror Turn Indicator Lights) (Domestic)

G01532119

Courtesy of GENERAL MOTORS CORP.

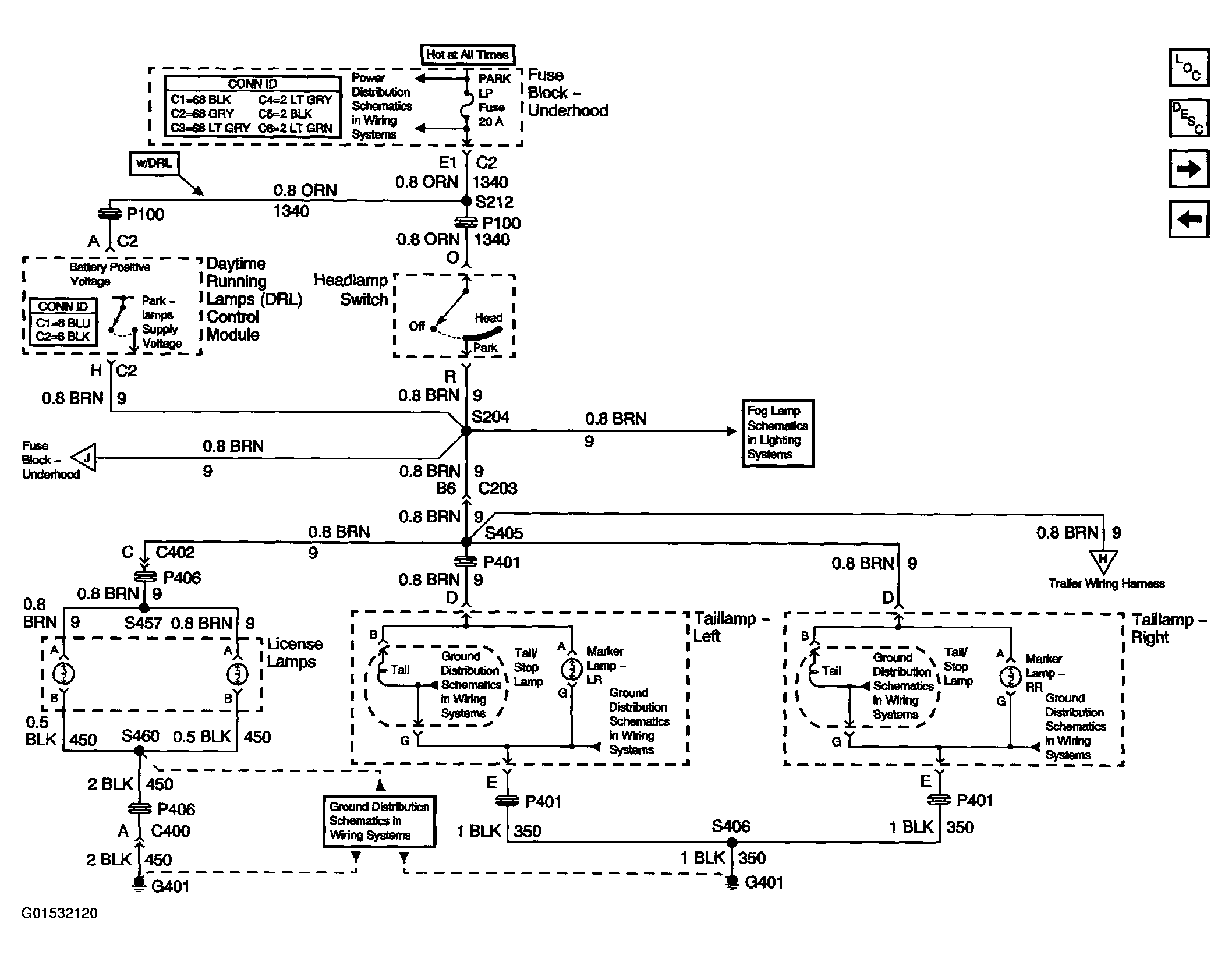

Fig 15: Exterior Light Schematic (License Lamps) (Domestic)

G01532120

Courtesy of GENERAL MOTORS CORP.

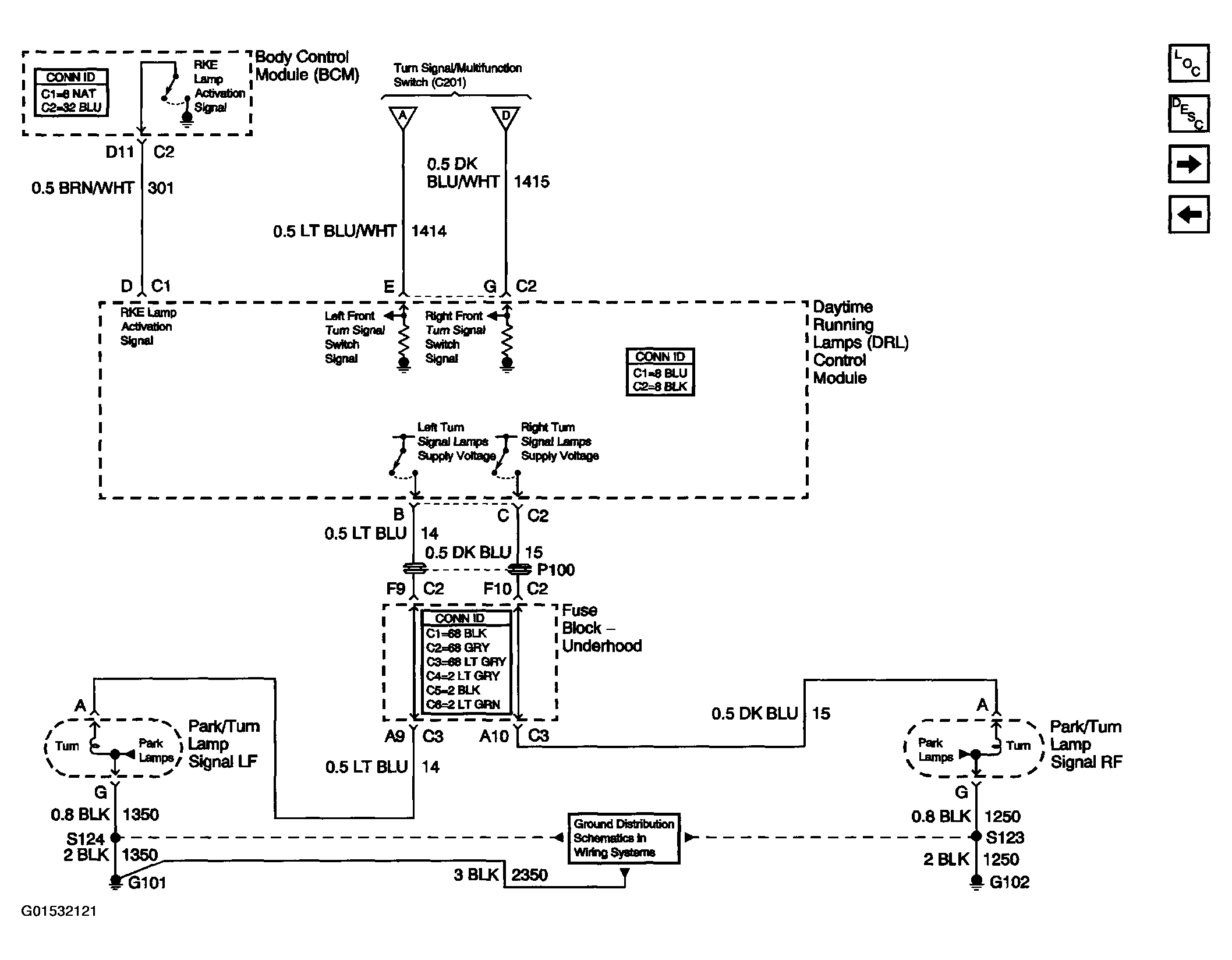

Fig 16: Exterior Light Schematic (DRL Ambient Light Sensor And DRL Control Module) (Domestic)

G01532121

Courtesy of GENERAL MOTORS CORP.

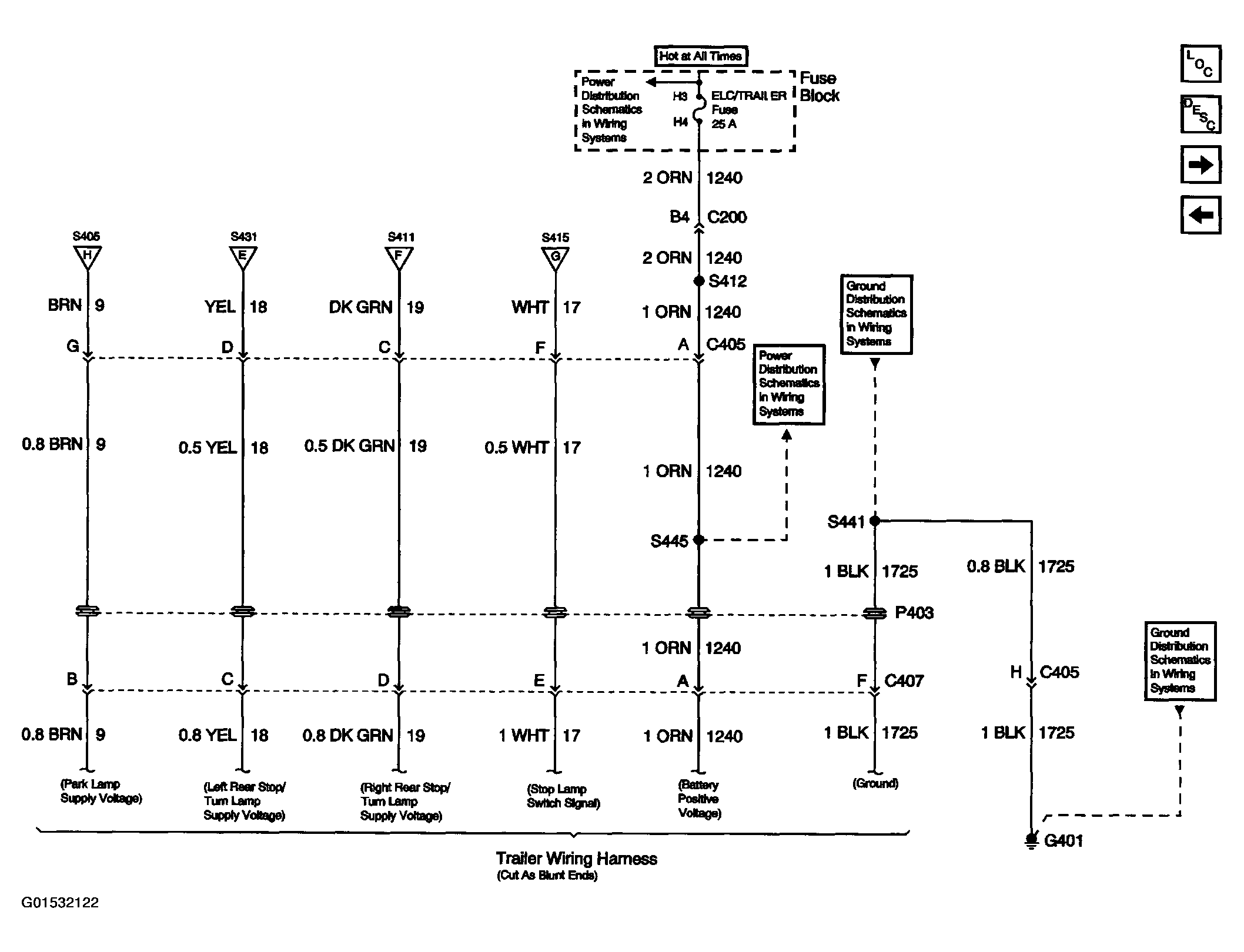

Fig 17: Exterior Light Schematic (Trailer Wiring, Power And Ground) (Domestic)

G01532122

Courtesy of GENERAL MOTORS CORP.

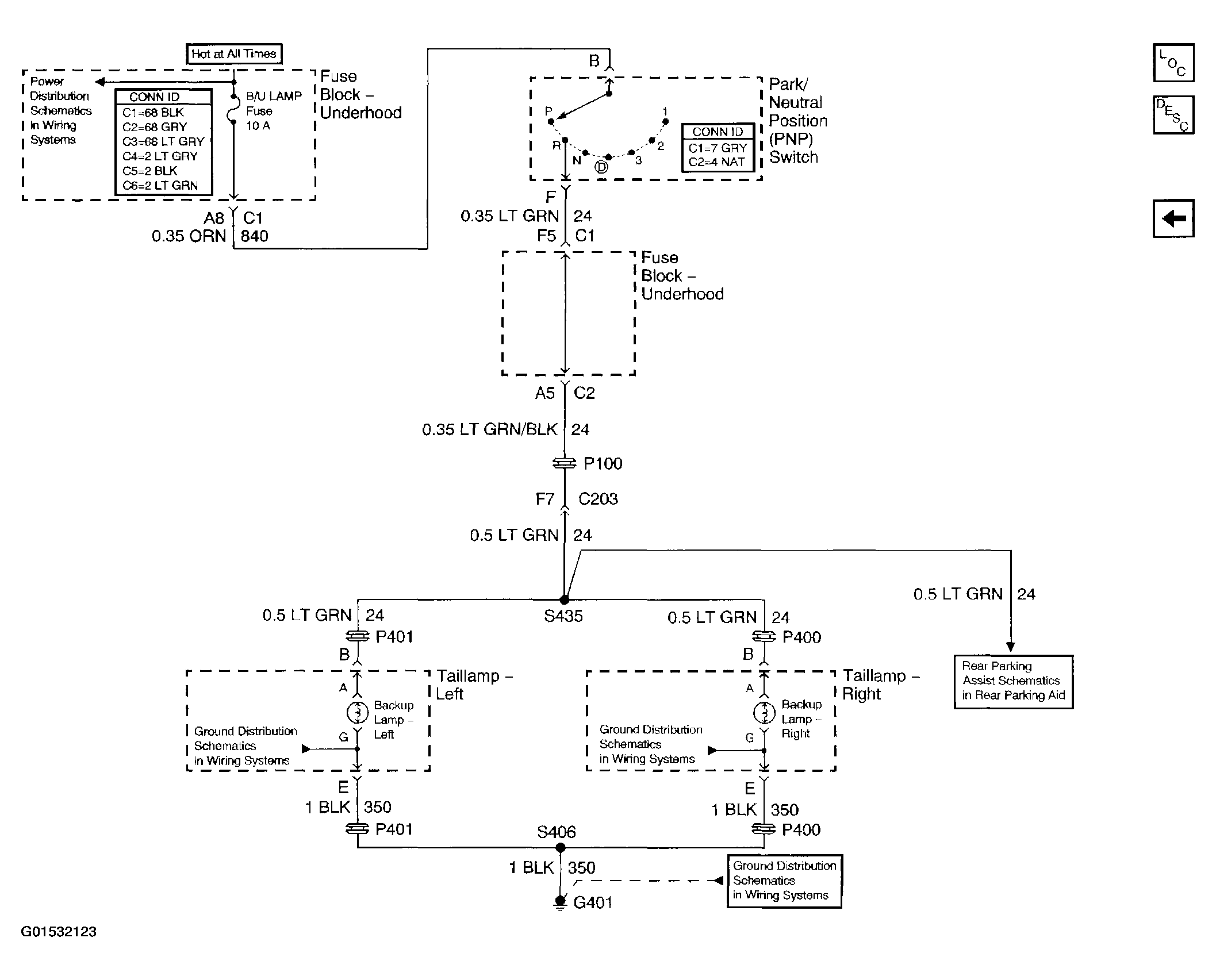

Fig 18: Exterior Light Schematic (Backup Lights) (Domestic)

G01532123

Courtesy of GENERAL MOTORS CORP.

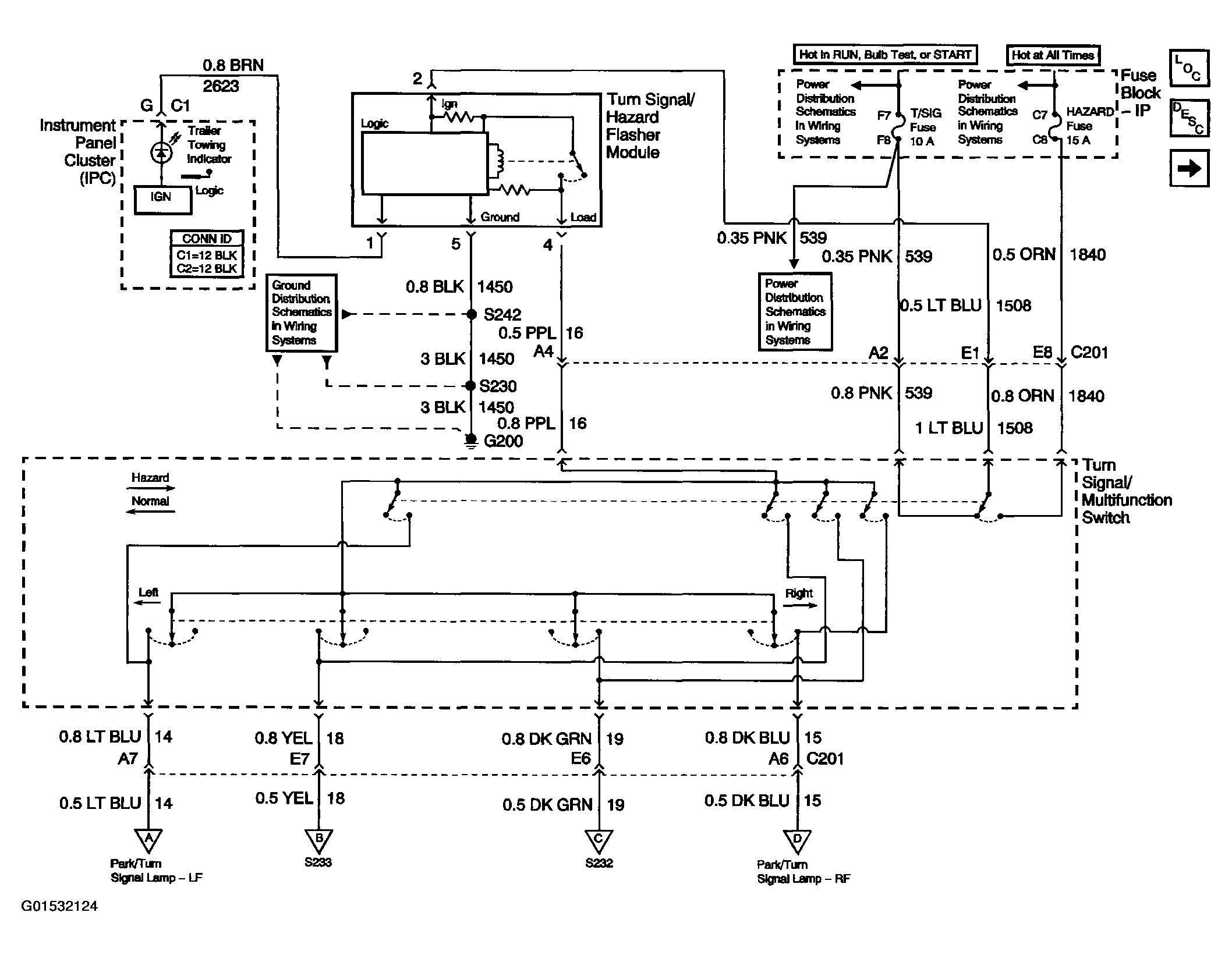

Fig 19: Exterior Light Schematic (Hazard Lamp/Turn Signal Flasher And Turn Signal Switch) (Export)

G01532124

Courtesy of GENERAL MOTORS CORP.

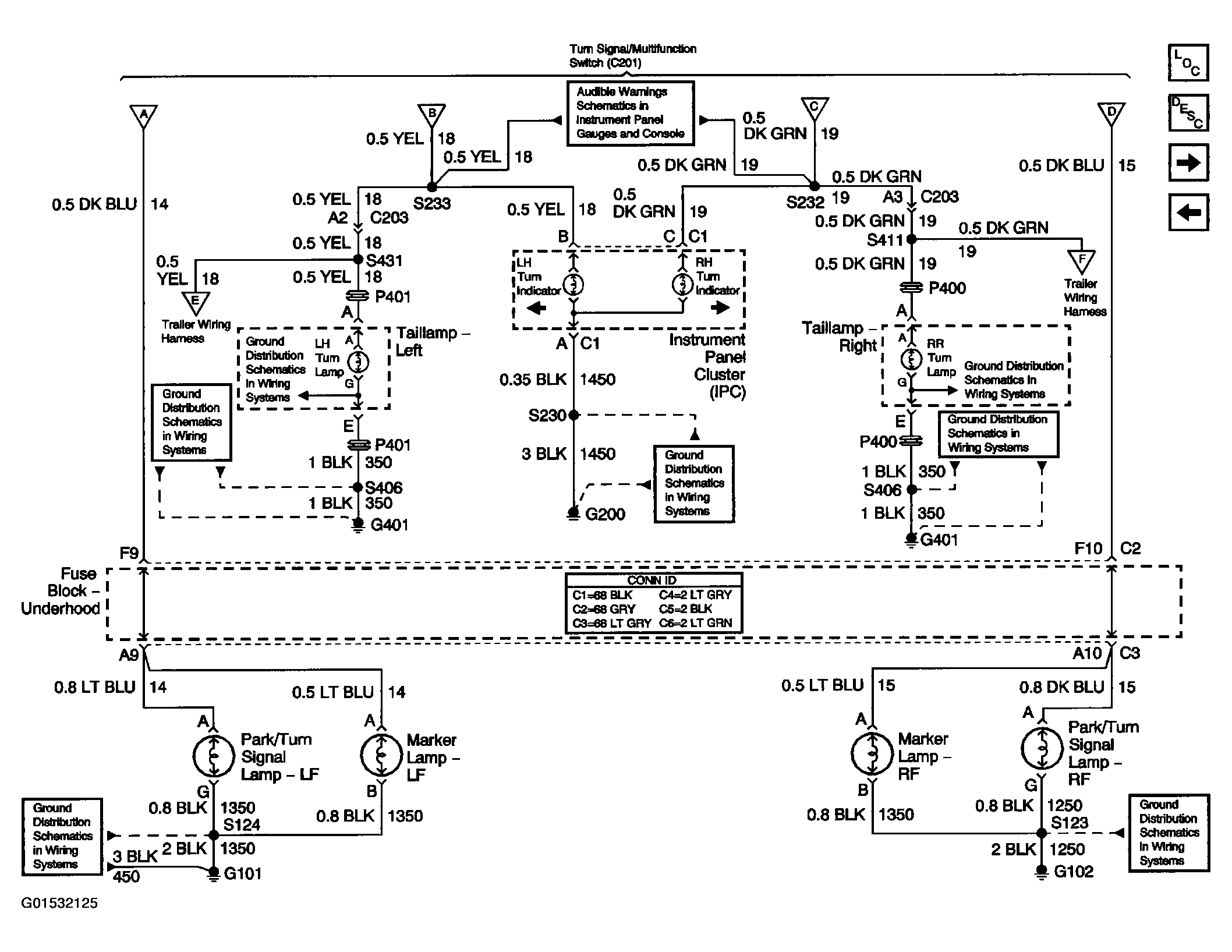

Fig 20: Exterior Light Schematic (Turn And Side Marker Lamps) (Export)

G01532125

Courtesy of GENERAL MOTORS CORP.

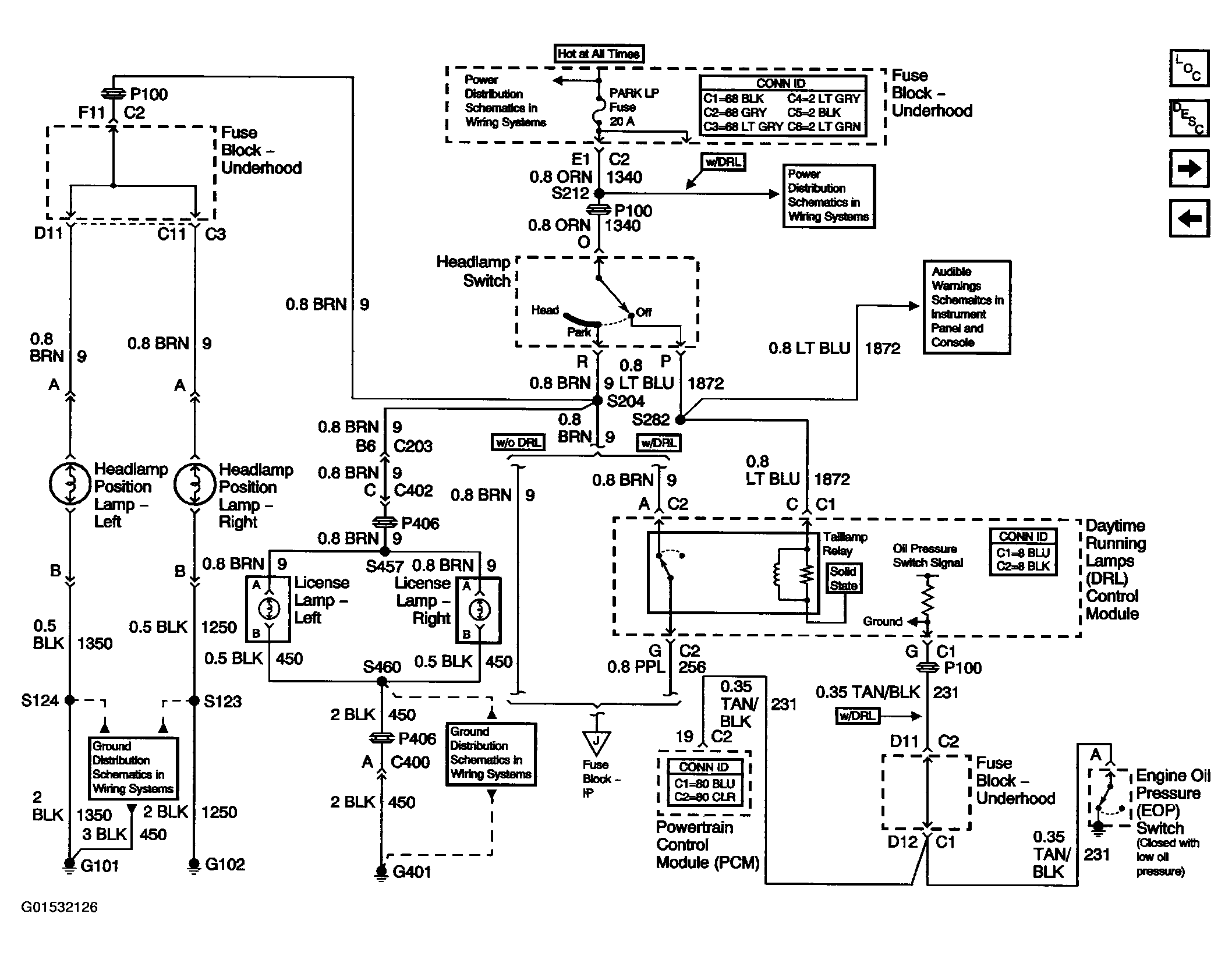

Fig 21: Exterior Light Schematic (Headlamp Position Lamps/License Lamps) (Export)

G01532126

Courtesy of GENERAL MOTORS CORP.

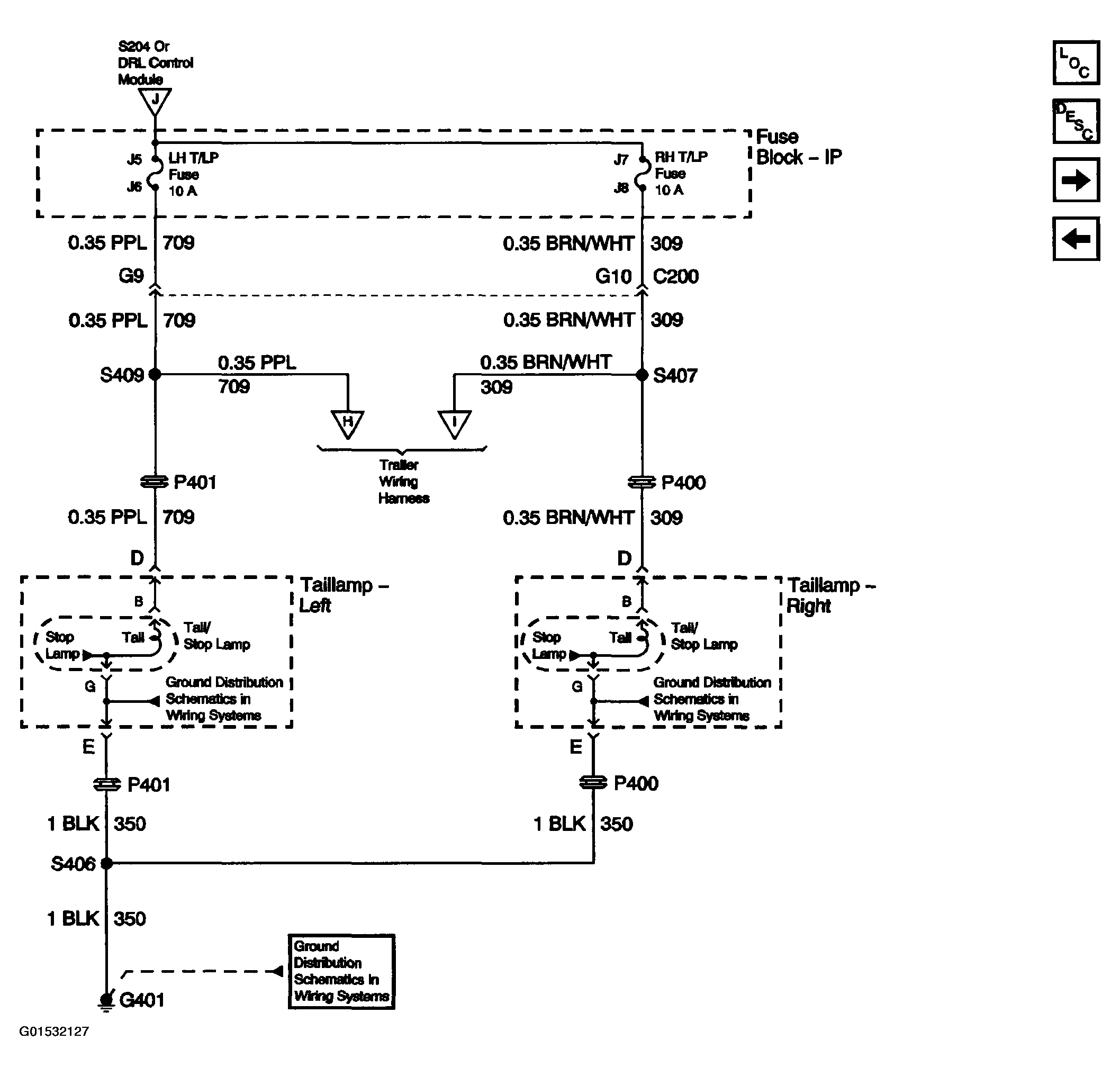

Fig 22: Exterior Light Schematic (Tail Lamps) (Export)

G01532127

Courtesy of GENERAL MOTORS CORP.

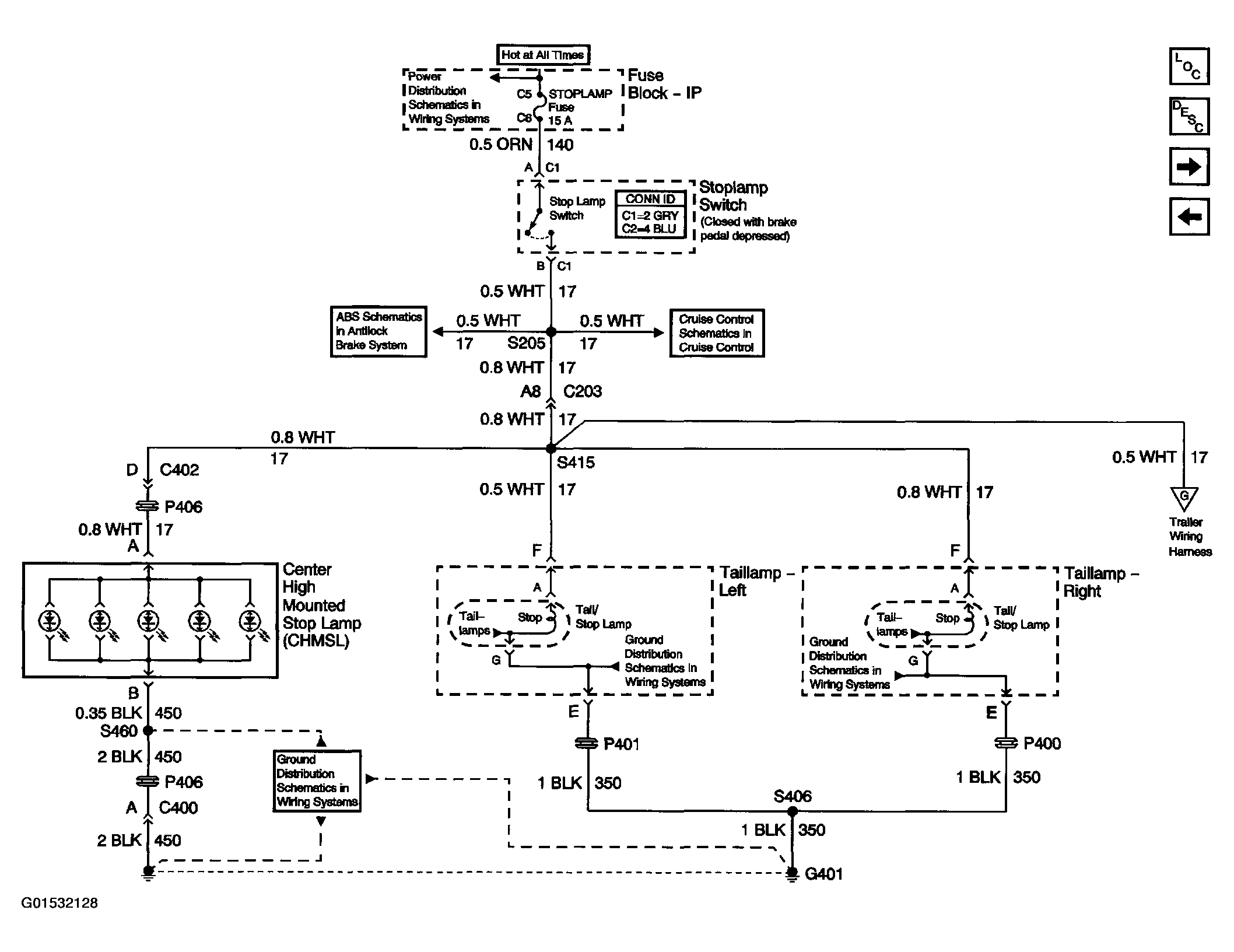

Fig 23: Exterior Light Schematic (Stop Lamps And CHMSL) (Export)

G01532128

Courtesy of GENERAL MOTORS CORP.

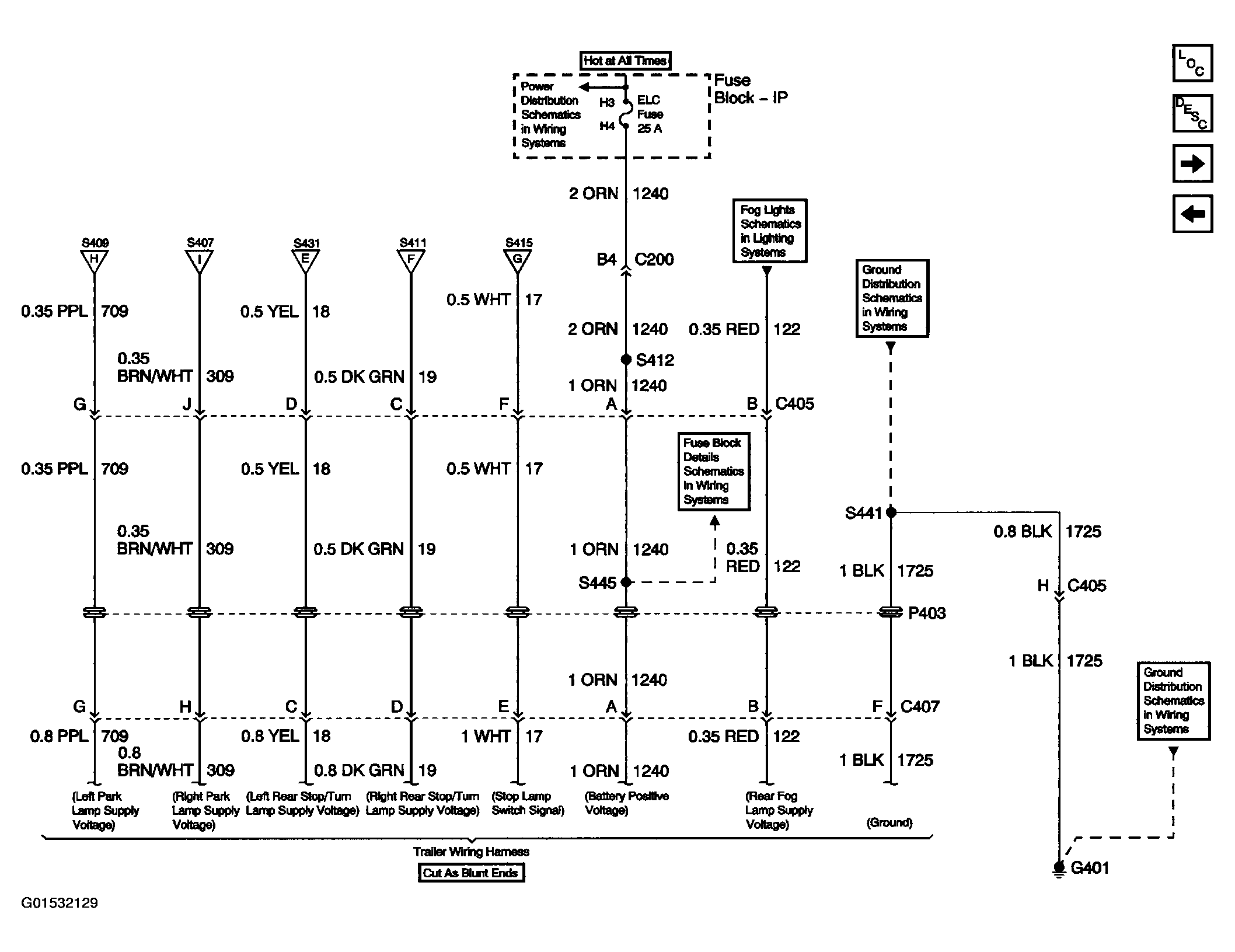

Fig 24: Exterior Light Schematic (Trailer Wiring, Power And Ground) (Export)

G01532129

Courtesy of GENERAL MOTORS CORP.

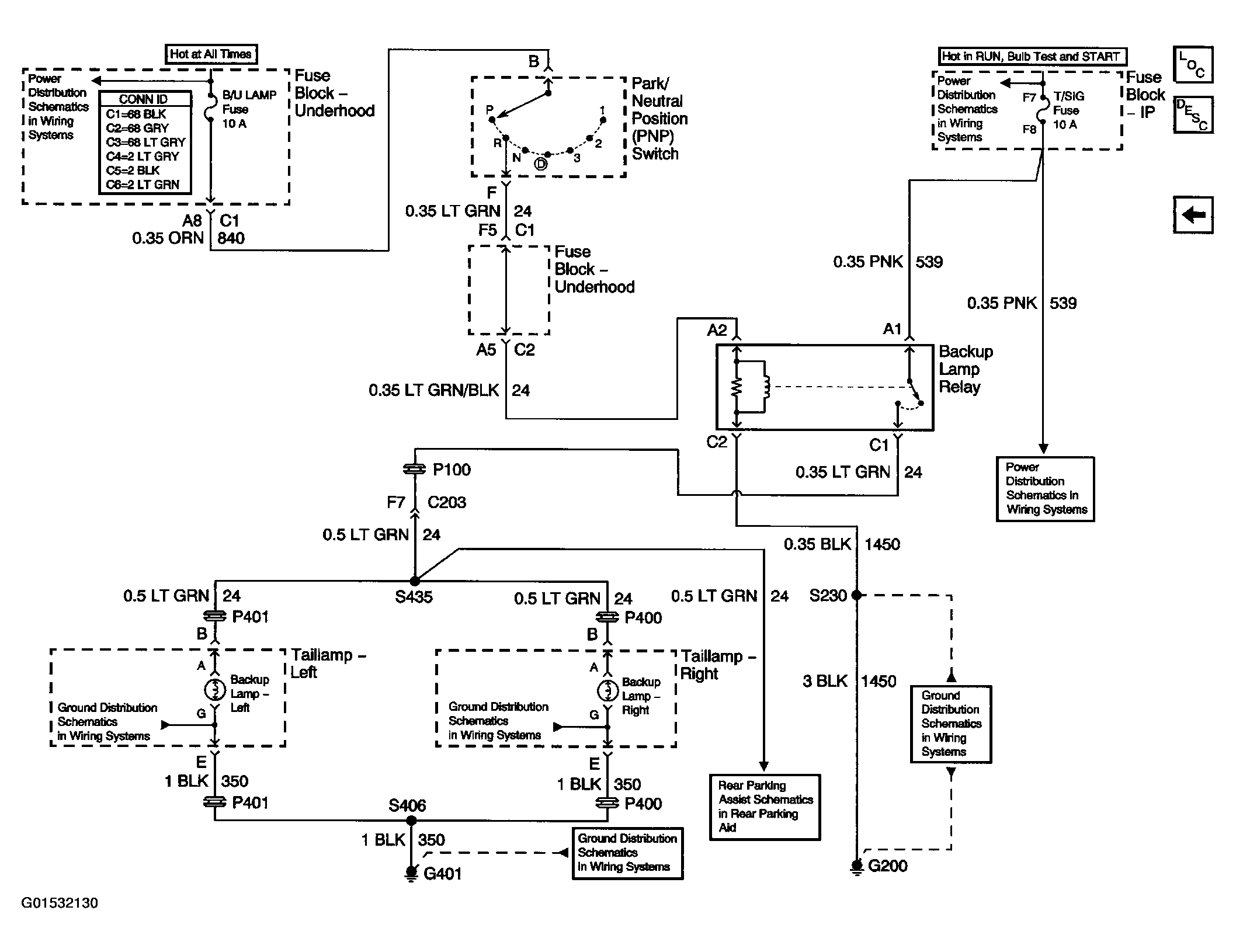

Fig 25: Exterior Light Schematic (Backup Lights) (Export)

G01532130

Courtesy of GENERAL MOTORS CORP.

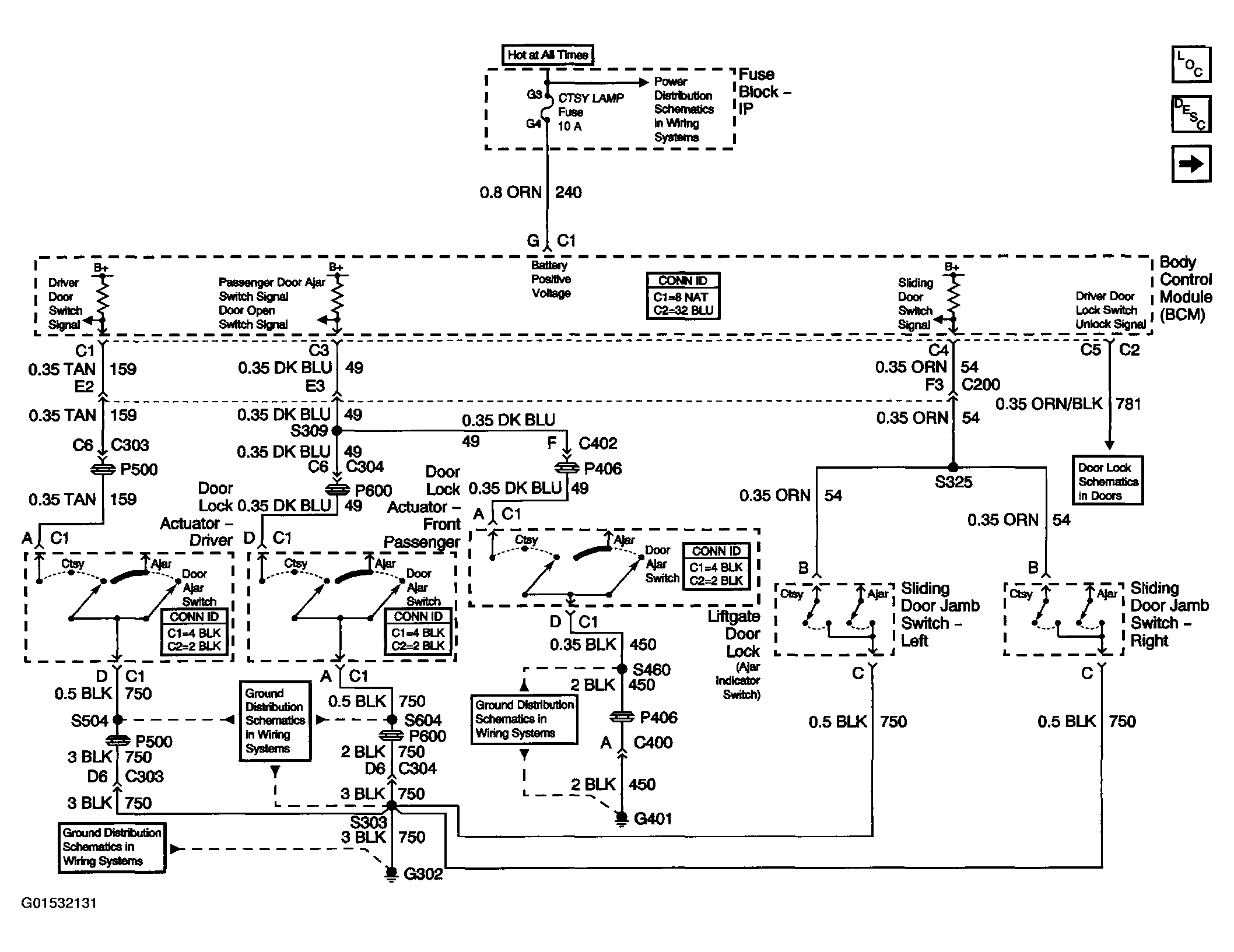

Fig 26: Interior Light Schematic (Door Locks, Sliding Door Jamb Switches And Liftgate Door Lock)

G01532131

Courtesy of GENERAL MOTORS CORP.

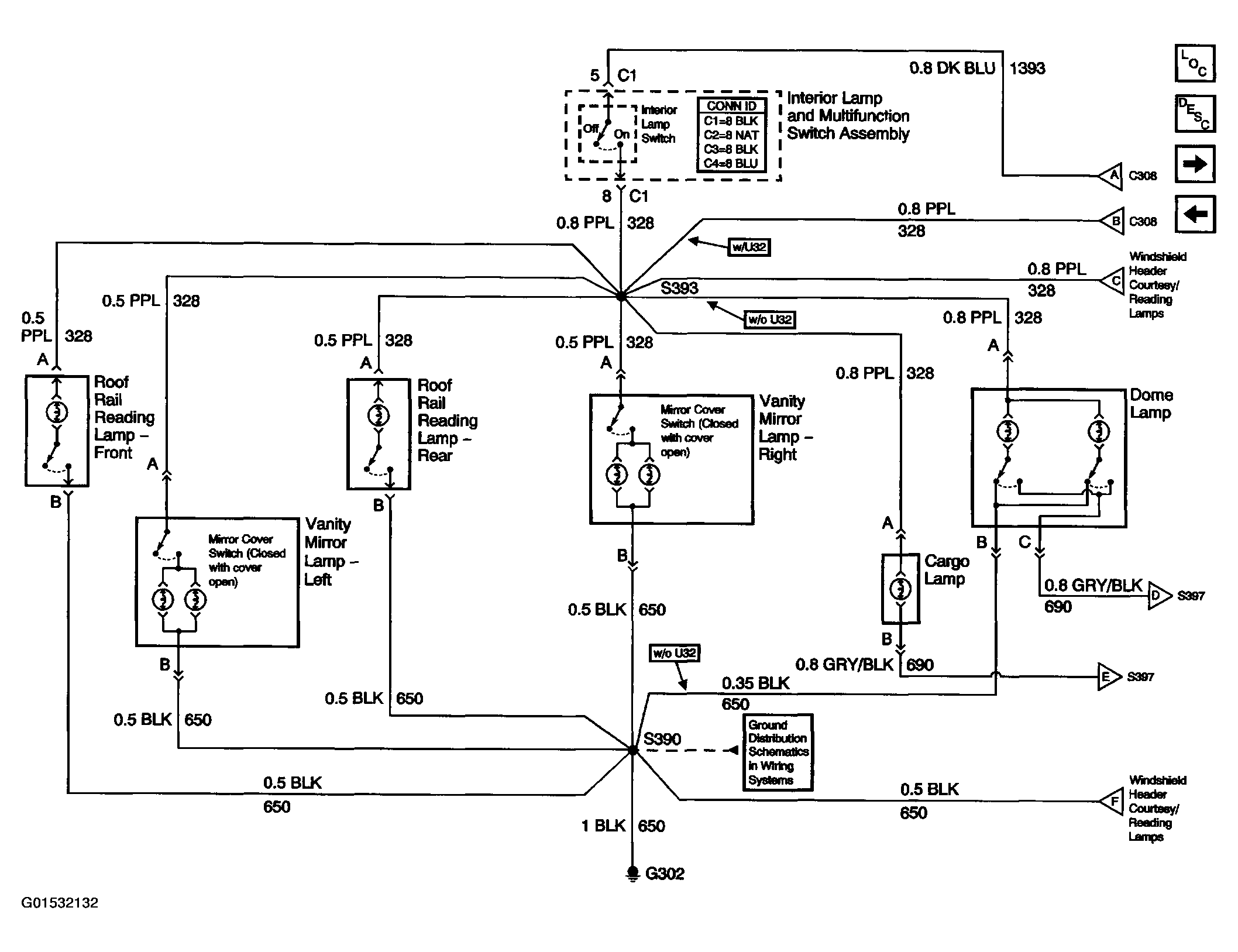

Fig 27: Interior Lights Schematic (Vanity And Reading Lamps)

G01532132

Courtesy of GENERAL MOTORS CORP.

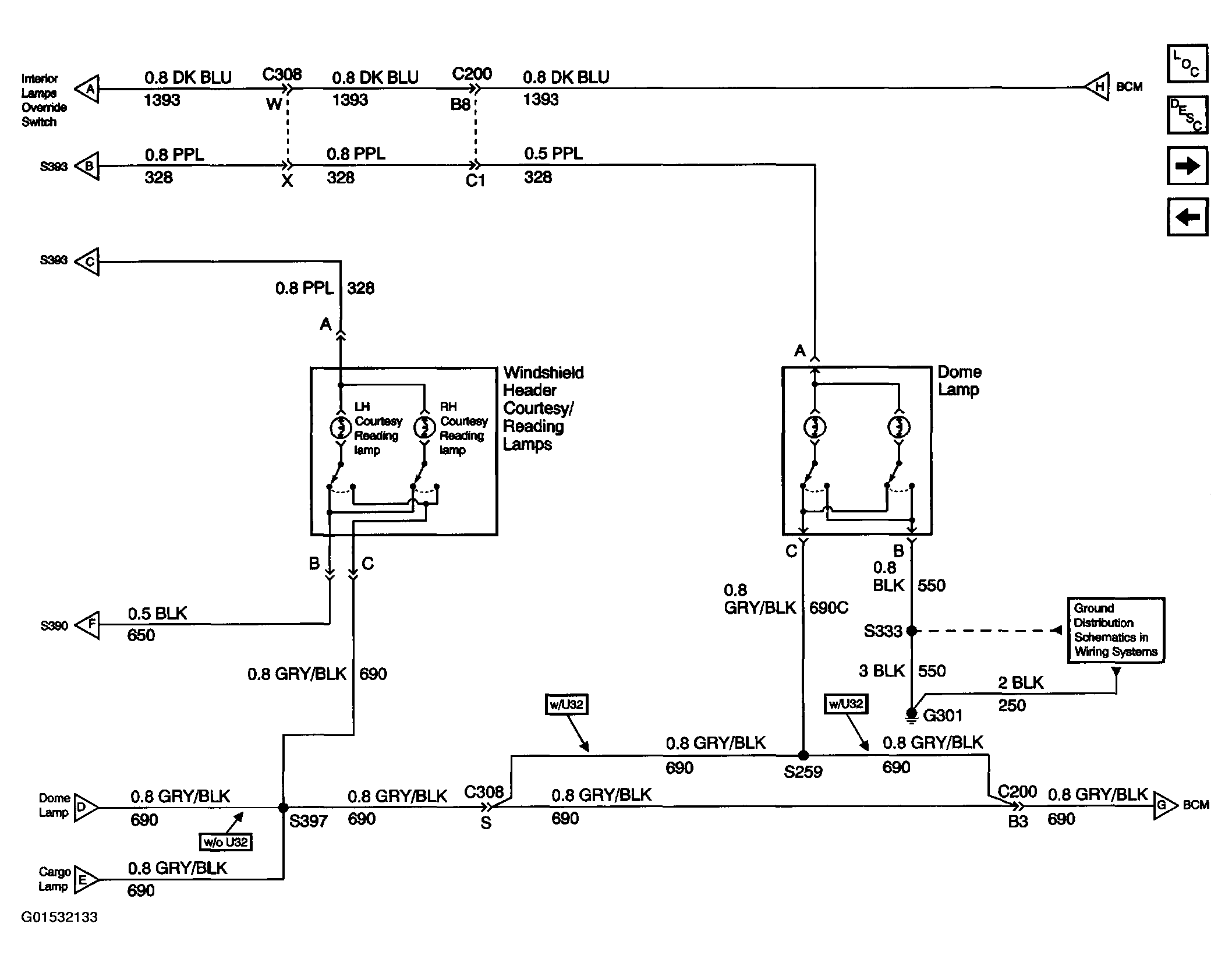

Fig 28: Interior Lights Schematic (Windshield Header/Courtesy Reading Lamps)

G01532133

Courtesy of GENERAL MOTORS CORP.

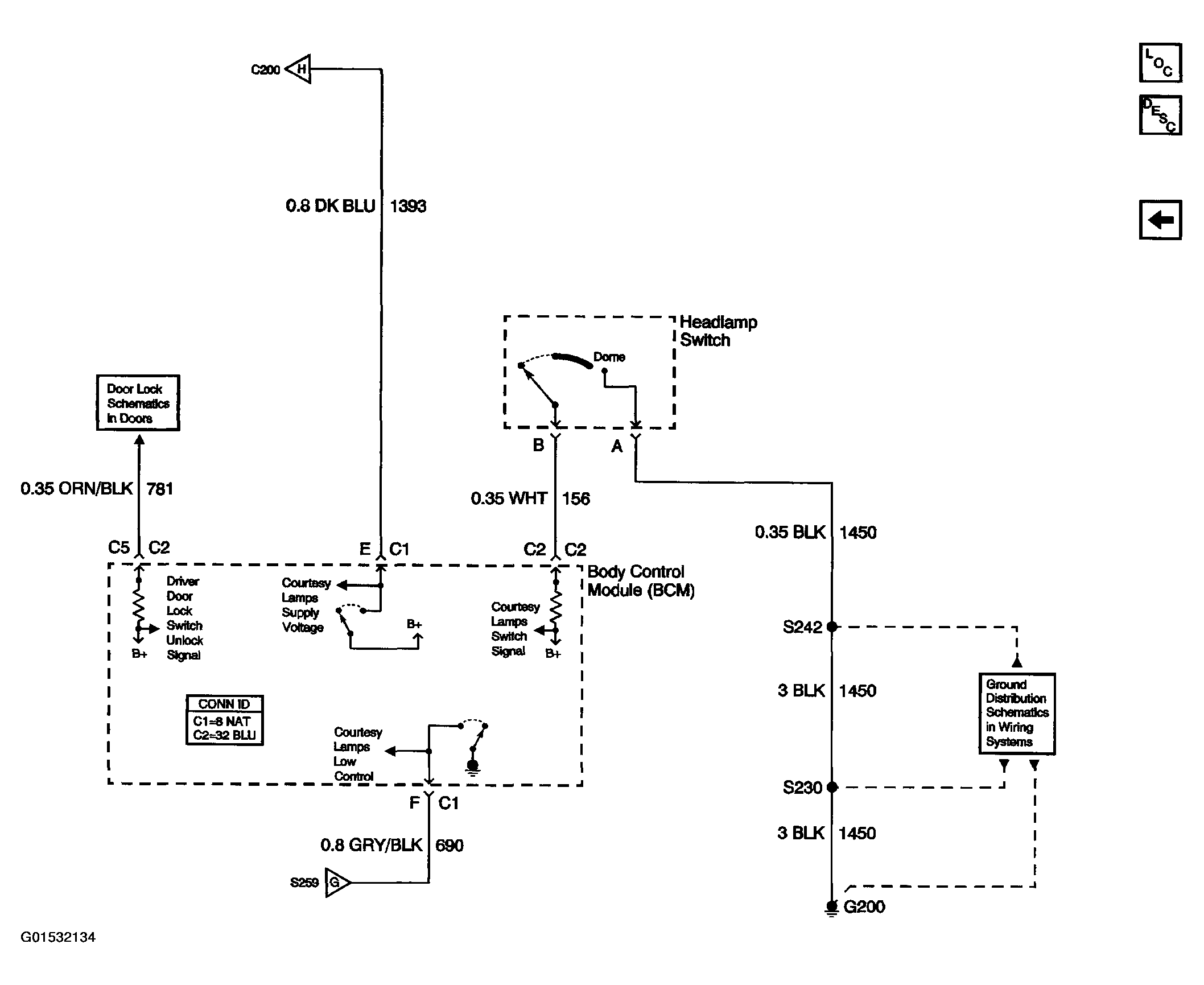

Fig 29: Interior Lights Schematic (BCM, Headlamp And I/P Lamp Dimmer Switch)

G01532134

Courtesy of GENERAL MOTORS CORP.

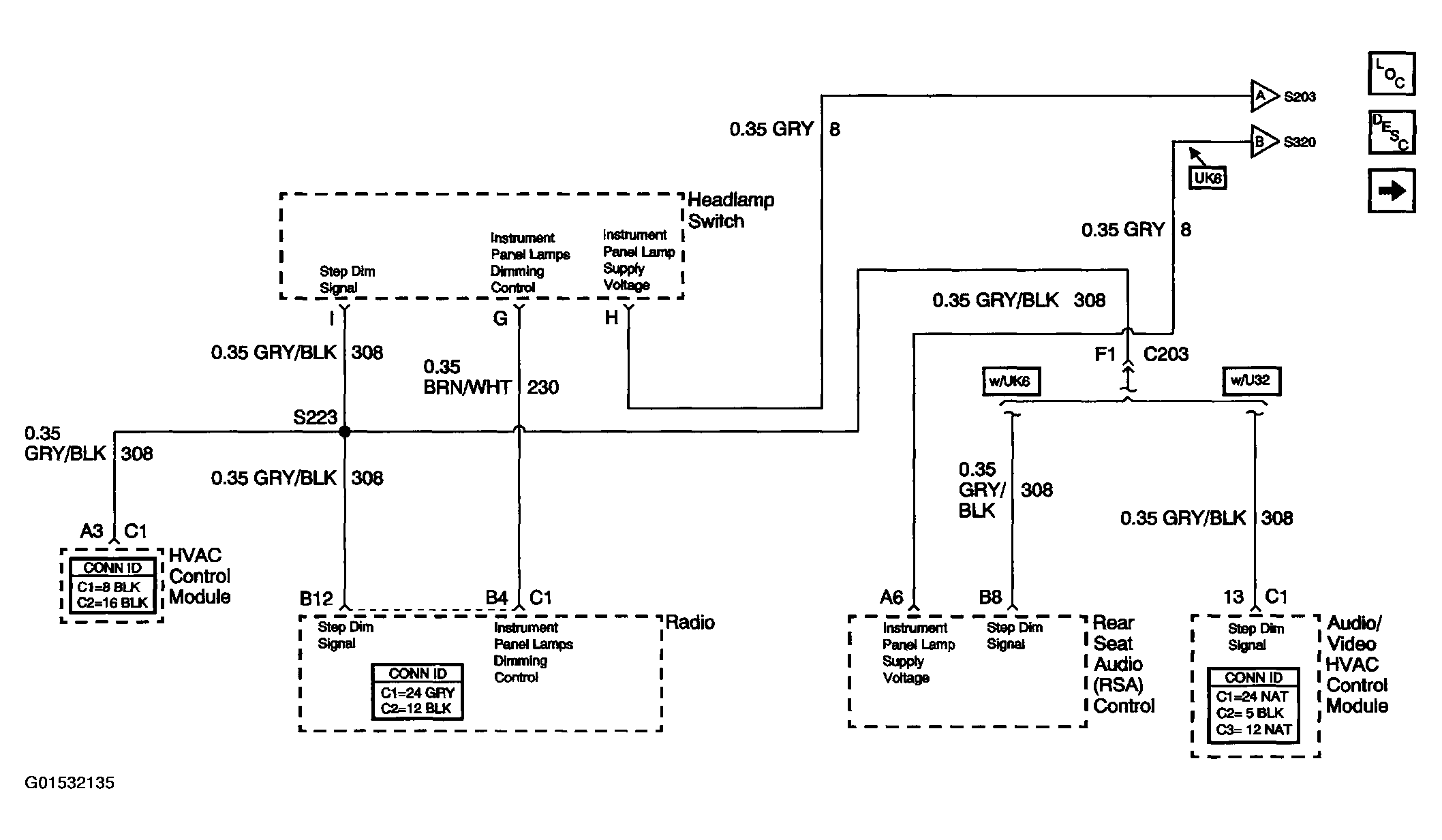

Fig 30: Interior Lights Dimming Schematic (Headlamp And I/P Lamp Dimmer Switch)

G01532135

Courtesy of GENERAL MOTORS CORP.

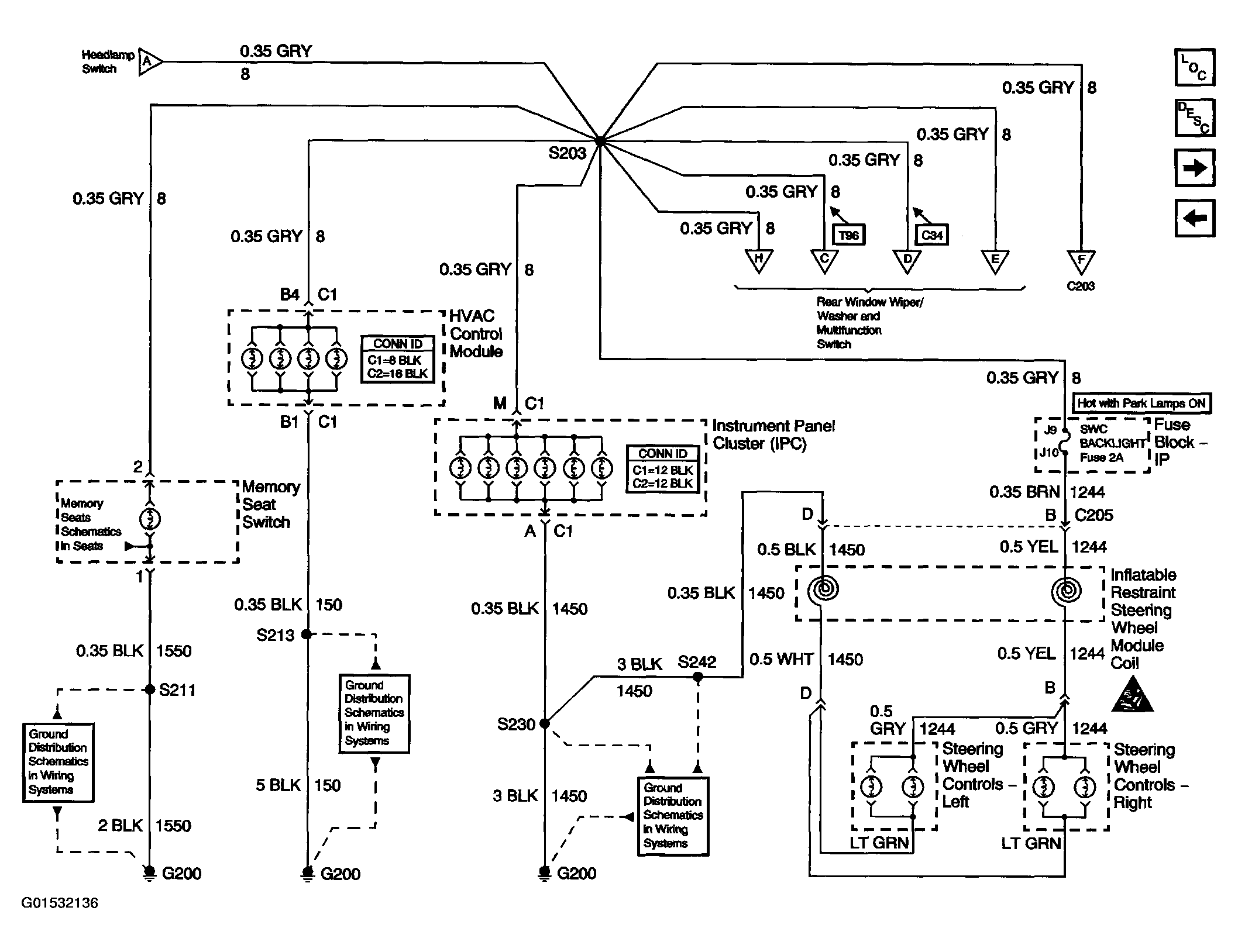

Fig 31: Interior Lights Dimming Schematic (Heater-A/C Control Switches And Instrument Panel Cluster)

G01532136

Courtesy of GENERAL MOTORS CORP.

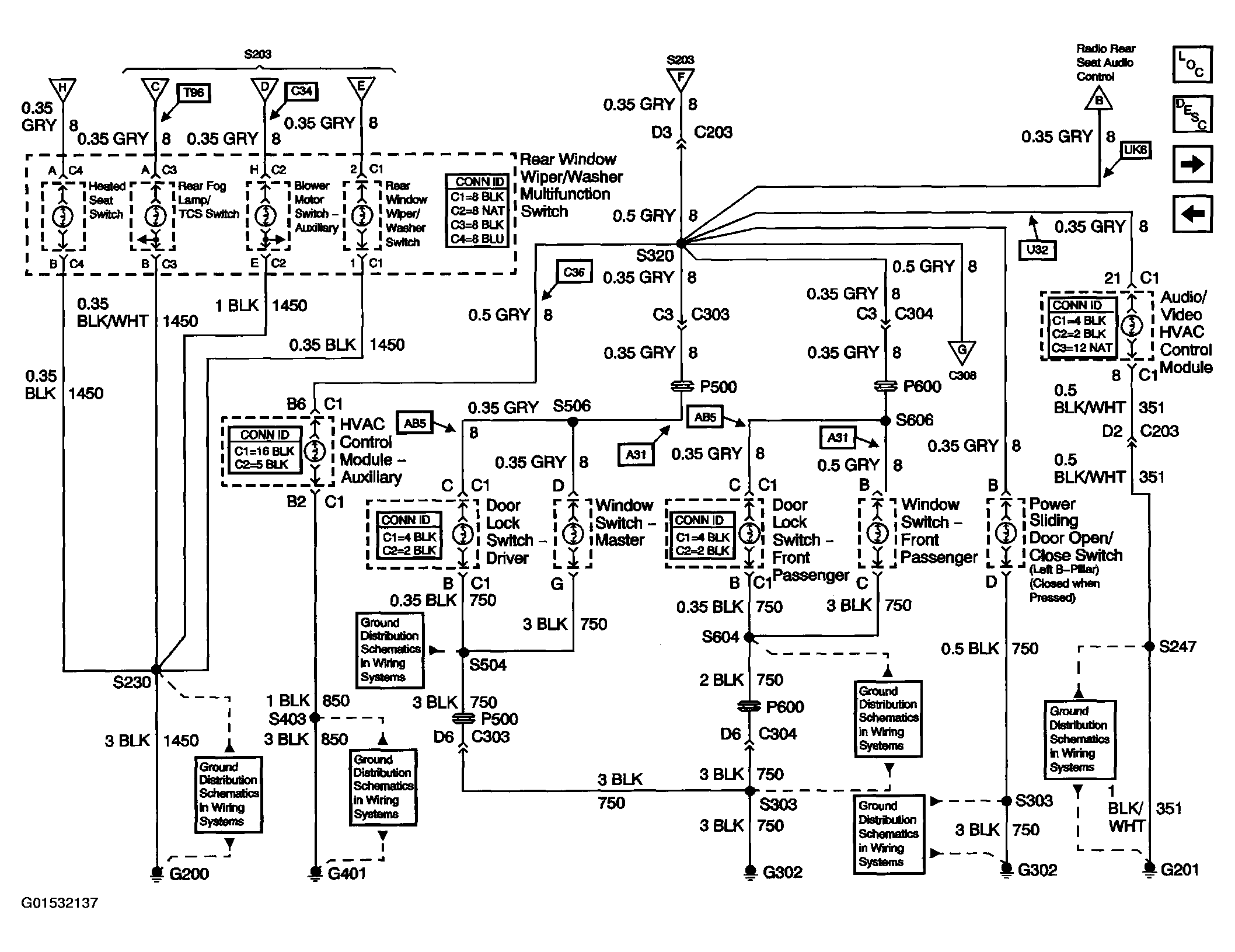

Fig 32: Interior Lights Dimming Schematic (Rear Wiper/Washer And Door Lock Switches)

G01532137

Courtesy of GENERAL MOTORS CORP.

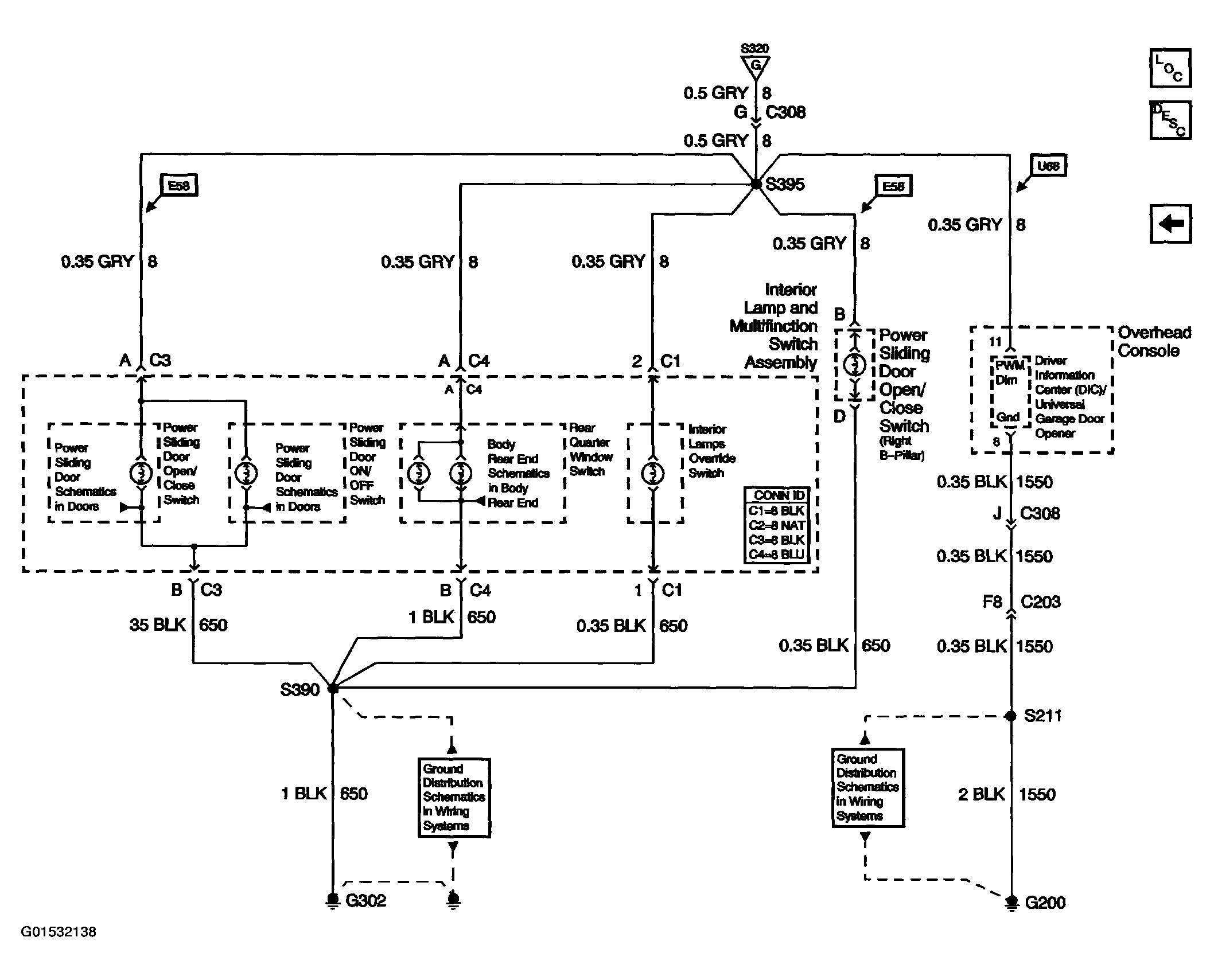

Fig 33: Interior Lights Dimming Schematic (Interior Lamp And Release Actuator Switch)

G01532138

Courtesy of GENERAL MOTORS CORP.
