Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the wiper drive system module cover to the pinchweld flange.
  2. Install the wiper drive system module cover to the pinchweld flange, pressing down until fully seated.
  3. Install the hood rear seal to the pinchweld flange.
  4. Close the hood.

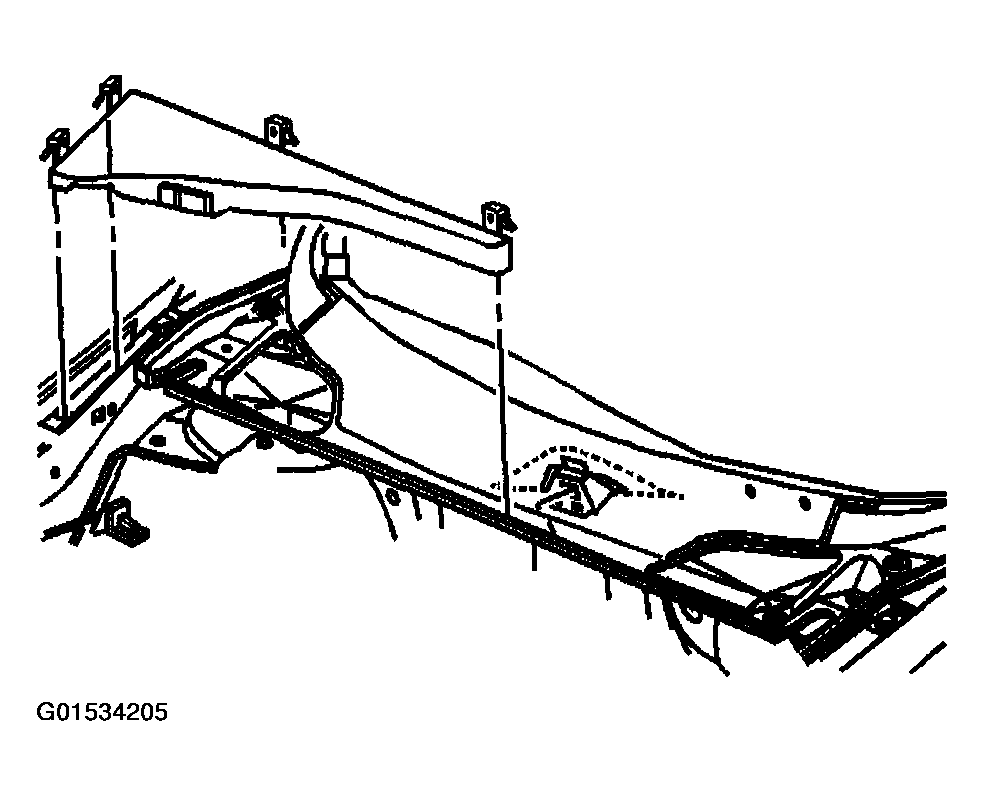

    Fig 1: Installing Wiper Drive System Module Cover To Pinchweld Flange
    G01534205Courtesy of GENERAL MOTORS CORP.
