Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Connect the wiper motor electrical connector.
Position the wiper motor to the wiper drive system module.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the wiper motor screws.
Tighten

Tighten the screws to 7 N.m (62 lb in).
Install the front washer hose around the wiper motor.
Install the wiper motor crank arm. Refer to WIPER MOTOR CRANK ARM REPLACEMENT .
Inspect the wipers for proper operation.

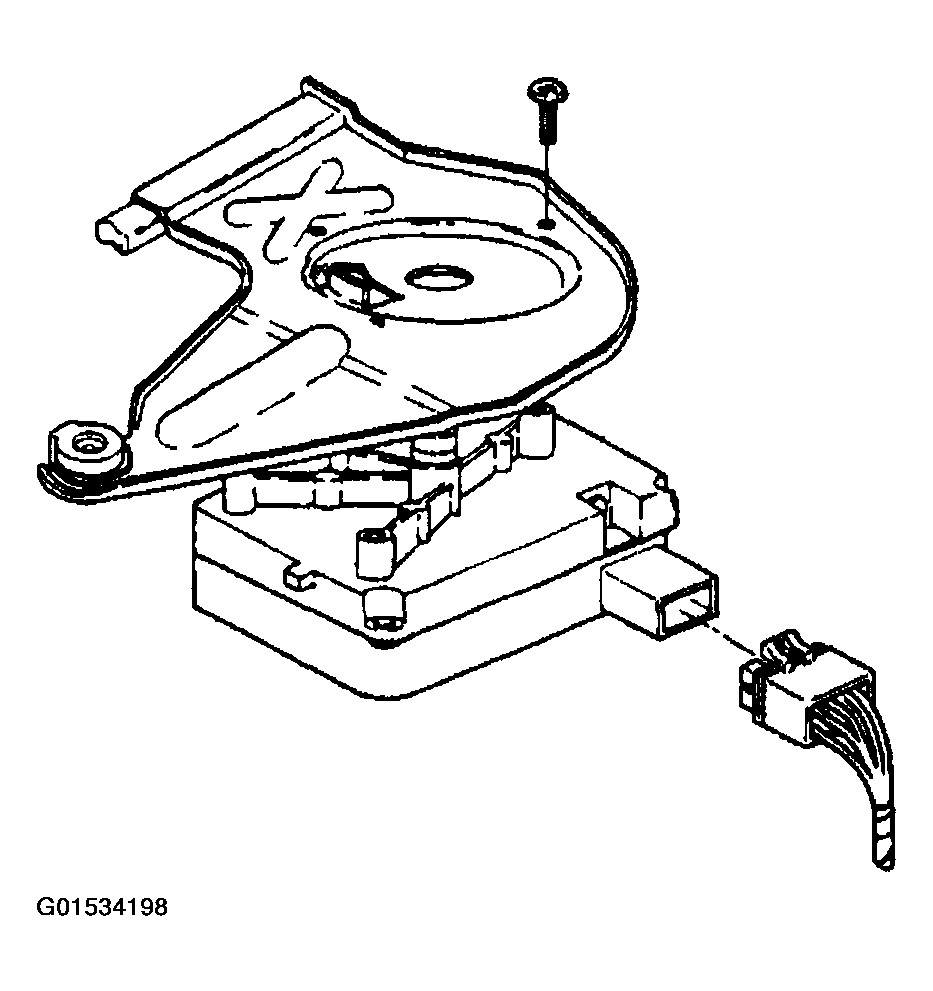

Fig 1: Installing Wiper Motor To Wiper Drive System Module
Courtesy of GENERAL MOTORS CORP.
