Cruise Release Switch Adjustment
WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Proper stoplamp switch adjustment is essential. Improper stoplamp switch adjustment may cause brake drag, heat buildup and excessive brake lining wear.
- Remove the left side instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT in Instrument Panel, Gages and Console.

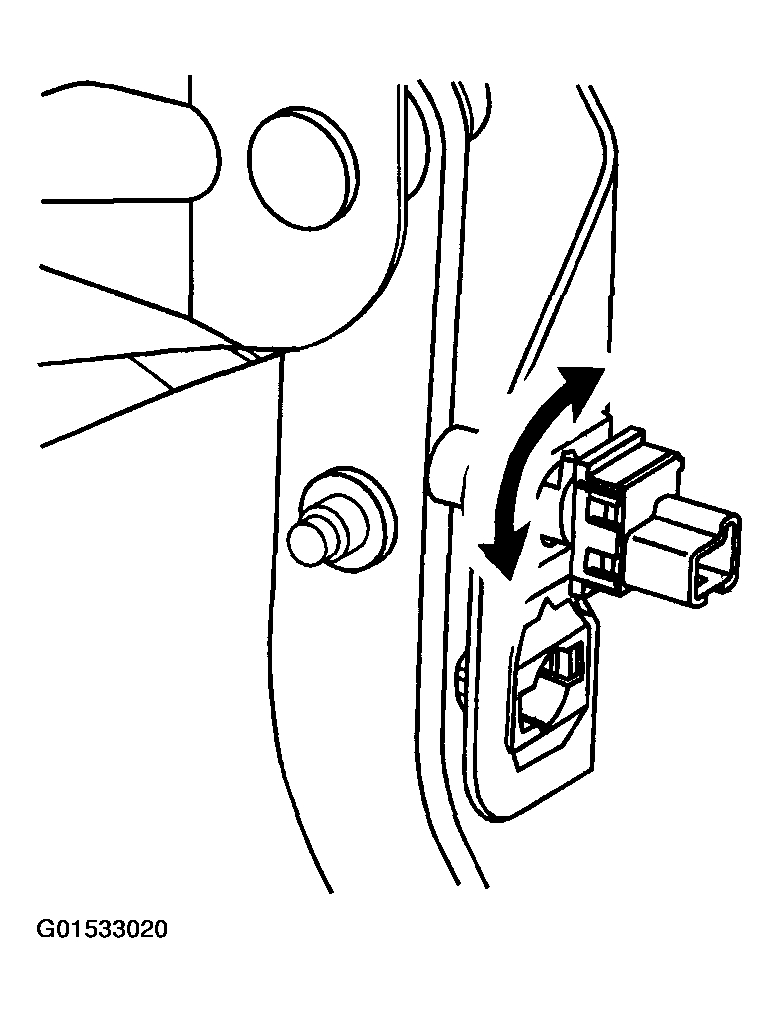

- Rotate the switch counter-clockwise until the travel stop is reached (approximately 60 degrees).
Important: Do NOT move or push the brake pedal.
- Insert the switch into the retainer until the switch plunger is fully depressed into the switch barrel.
- Rotate the switch until the travel stop is reached (approximately 60 degrees). The electrical connector index notch should be at the 12 o'clock position.
- Ensure that the cruise control system operates properly.
- Install the left side instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT in Instrument Panel, Gages and Console.
