Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Install the hood latch support to upper tie bar.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the bolts to the hood latch support at the upper tie bar.
Tighten

Tighten the bolts to 25 N.m (18 lb ft).
Install the primary hood latch. Refer to HOOD LATCH REPLACEMENT - PRIMARY .
Close the hood.

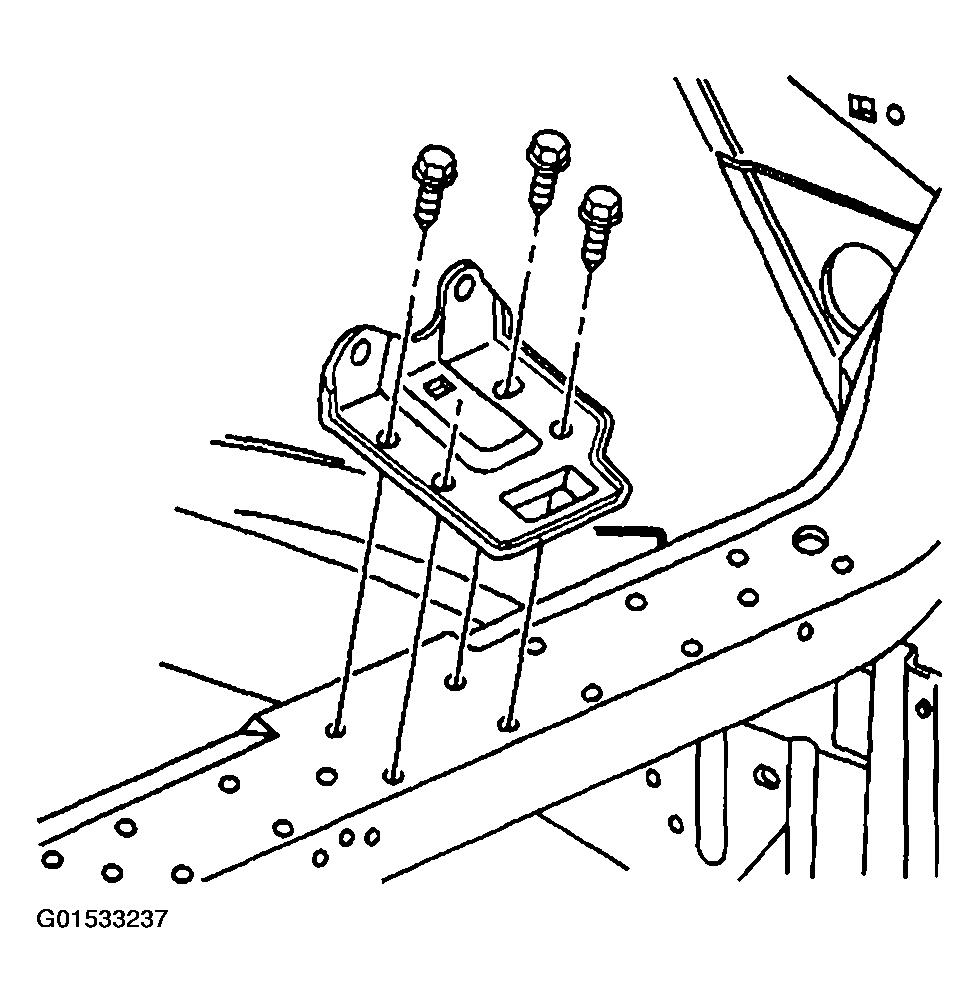

Fig 1: Installing Bolts To Hood Latch Support At Upper Tie Bar
Courtesy of GENERAL MOTORS CORP.
