Cruise Control Schematics

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.

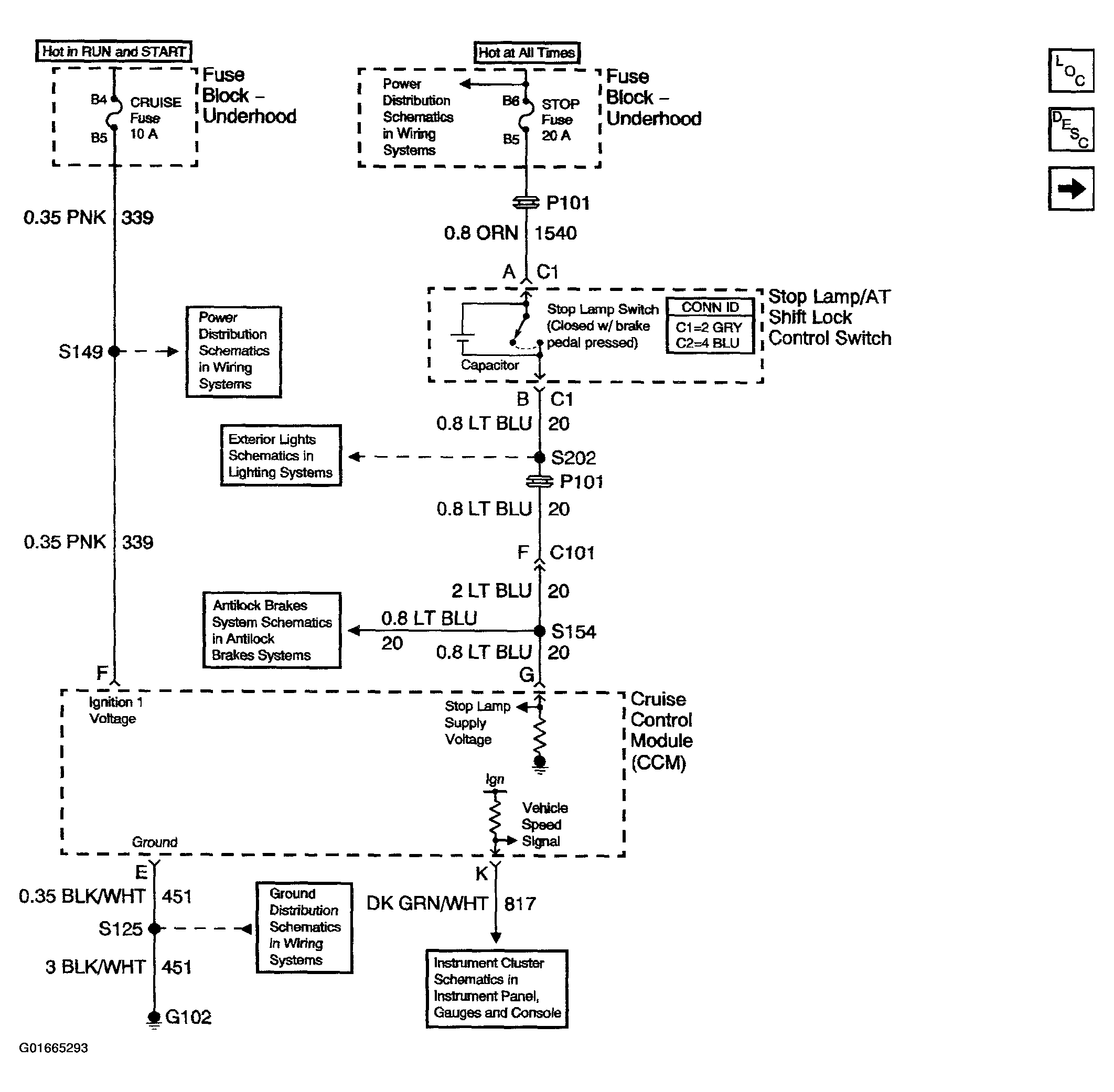

Fig 1: Cruise Control Schematics (Power, Ground & VSS)

Courtesy of GENERAL MOTORS CORP.

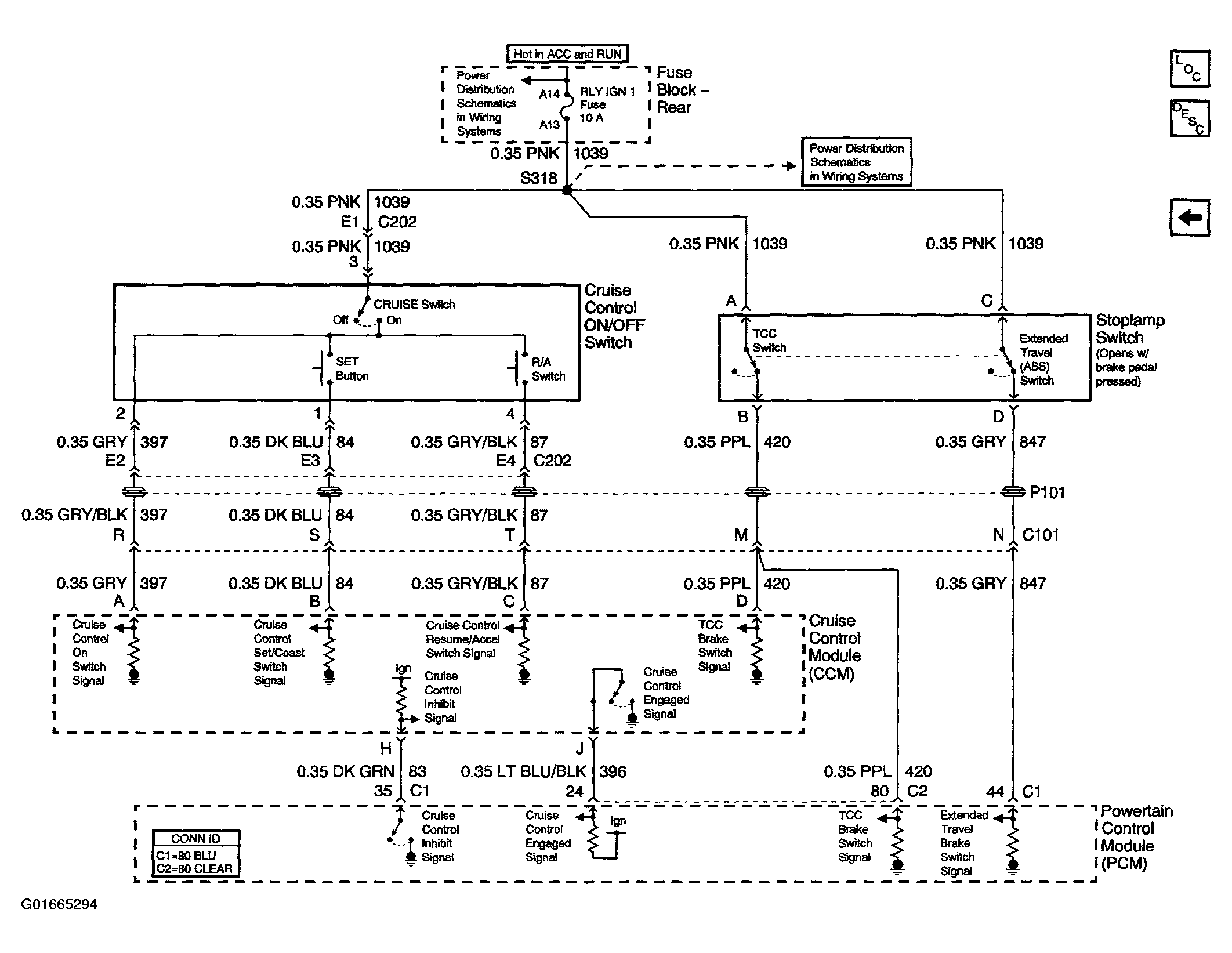

Fig 2: Cruise Control Schematics (Switches)

Courtesy of GENERAL MOTORS CORP.
