Cooling System Component Views

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Engine Compartment, Front

Courtesy of GENERAL MOTORS CORP.

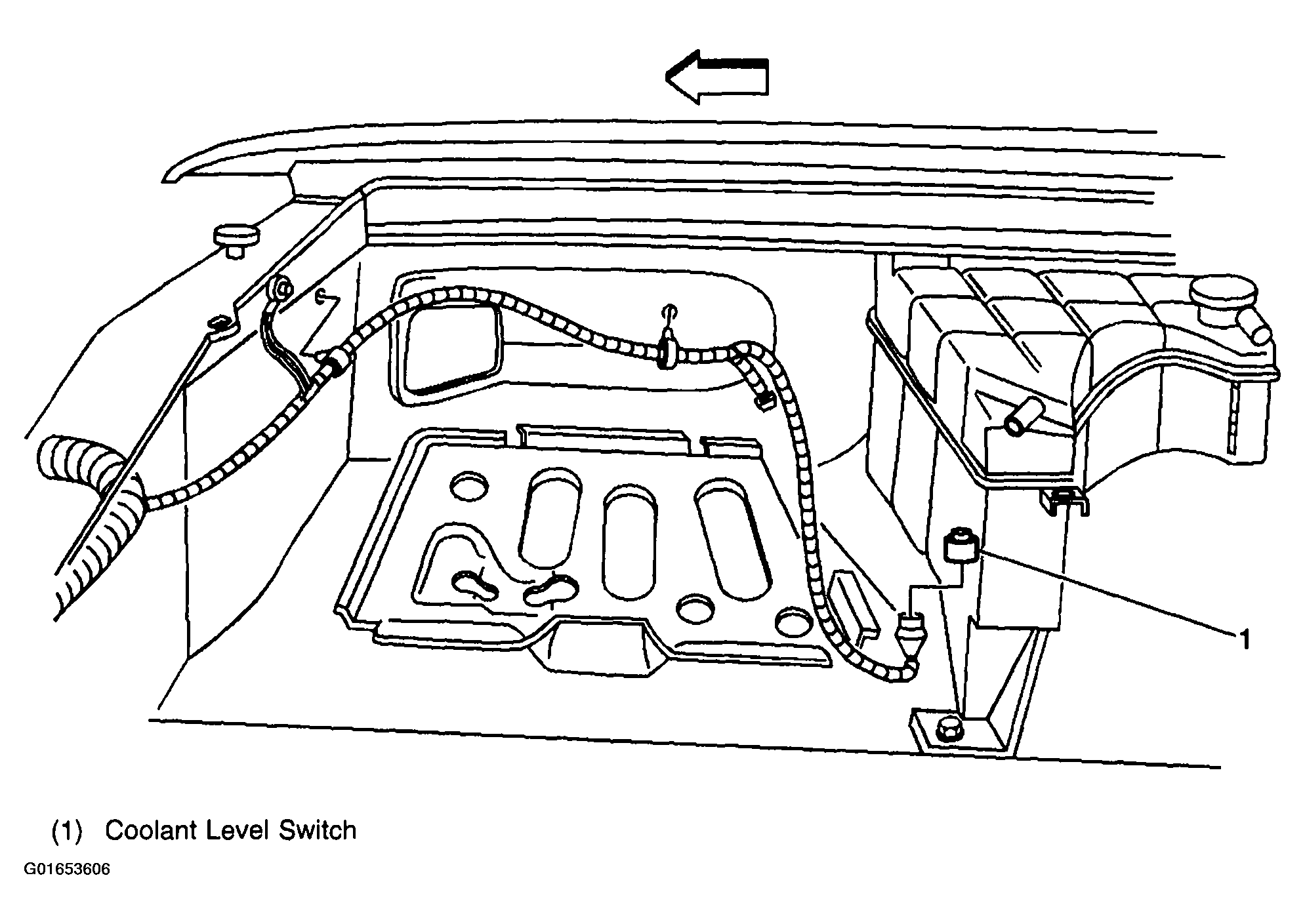

Fig 2: Coolant Level Switch

Courtesy of GENERAL MOTORS CORP.
