Cooling System Connector End Views

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.

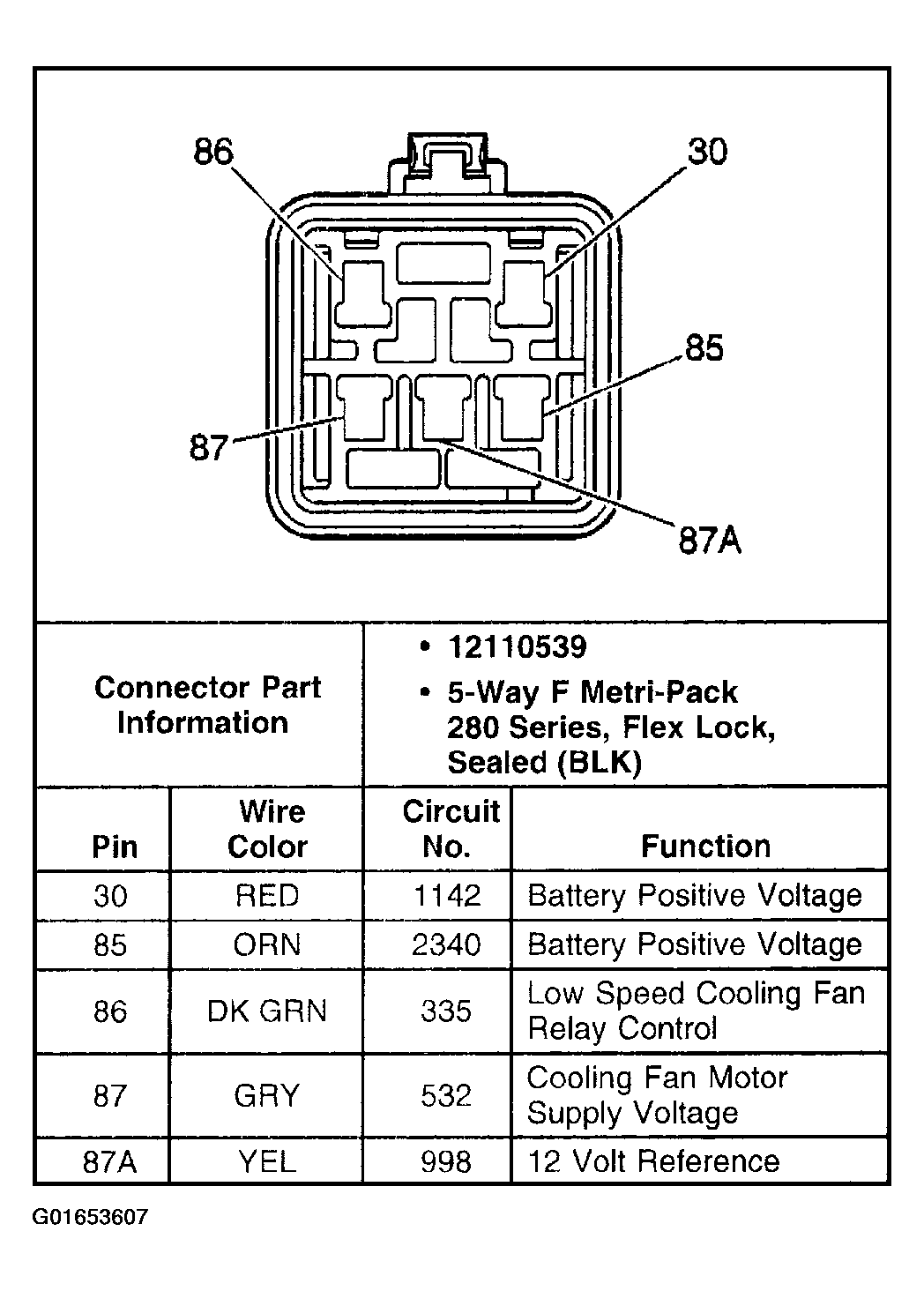

Fig 1: Cooling Fan 1 Relay

Courtesy of GENERAL MOTORS CORP.

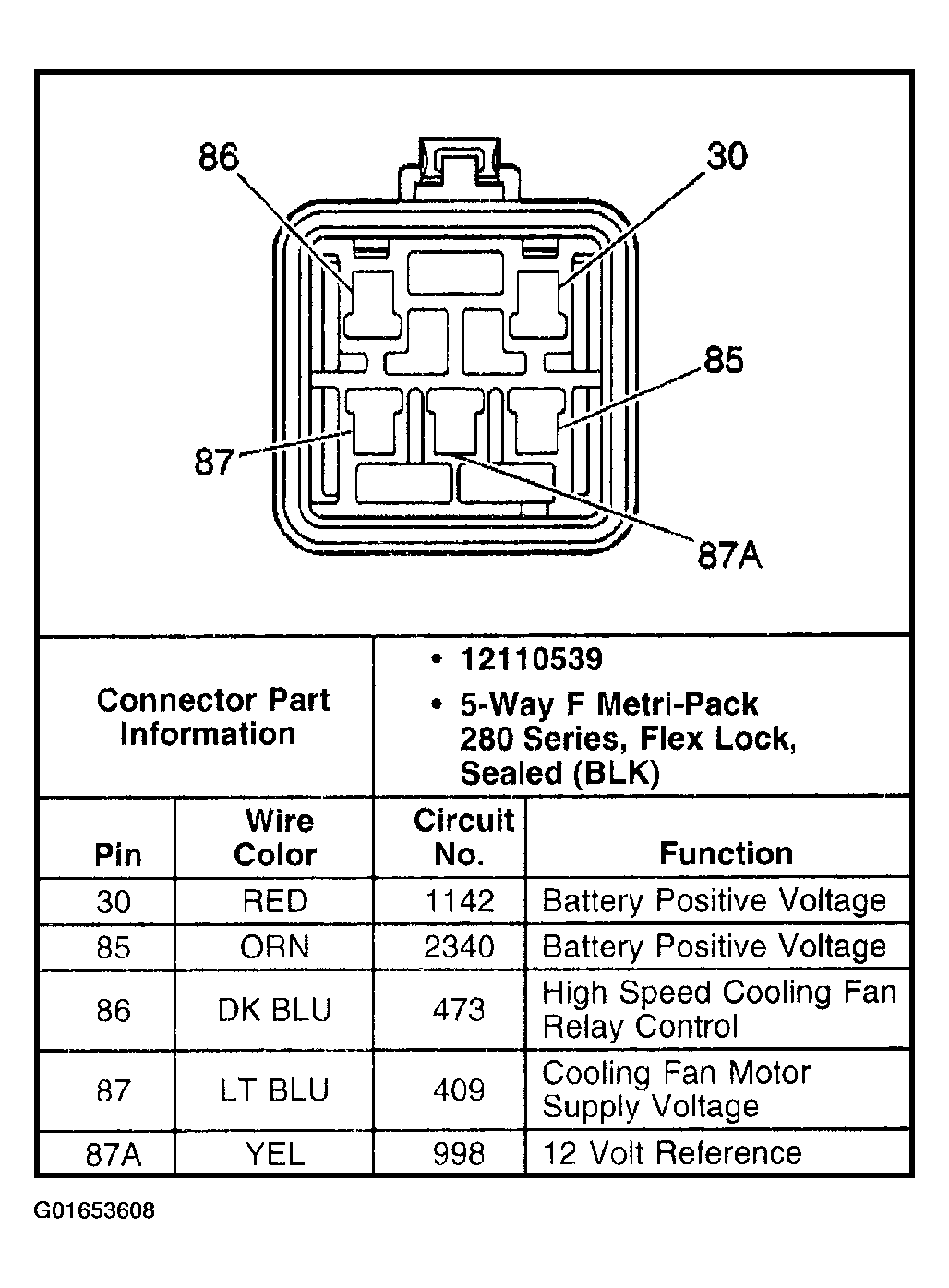

Fig 2: Cooling Fan 2 Relay

Courtesy of GENERAL MOTORS CORP.

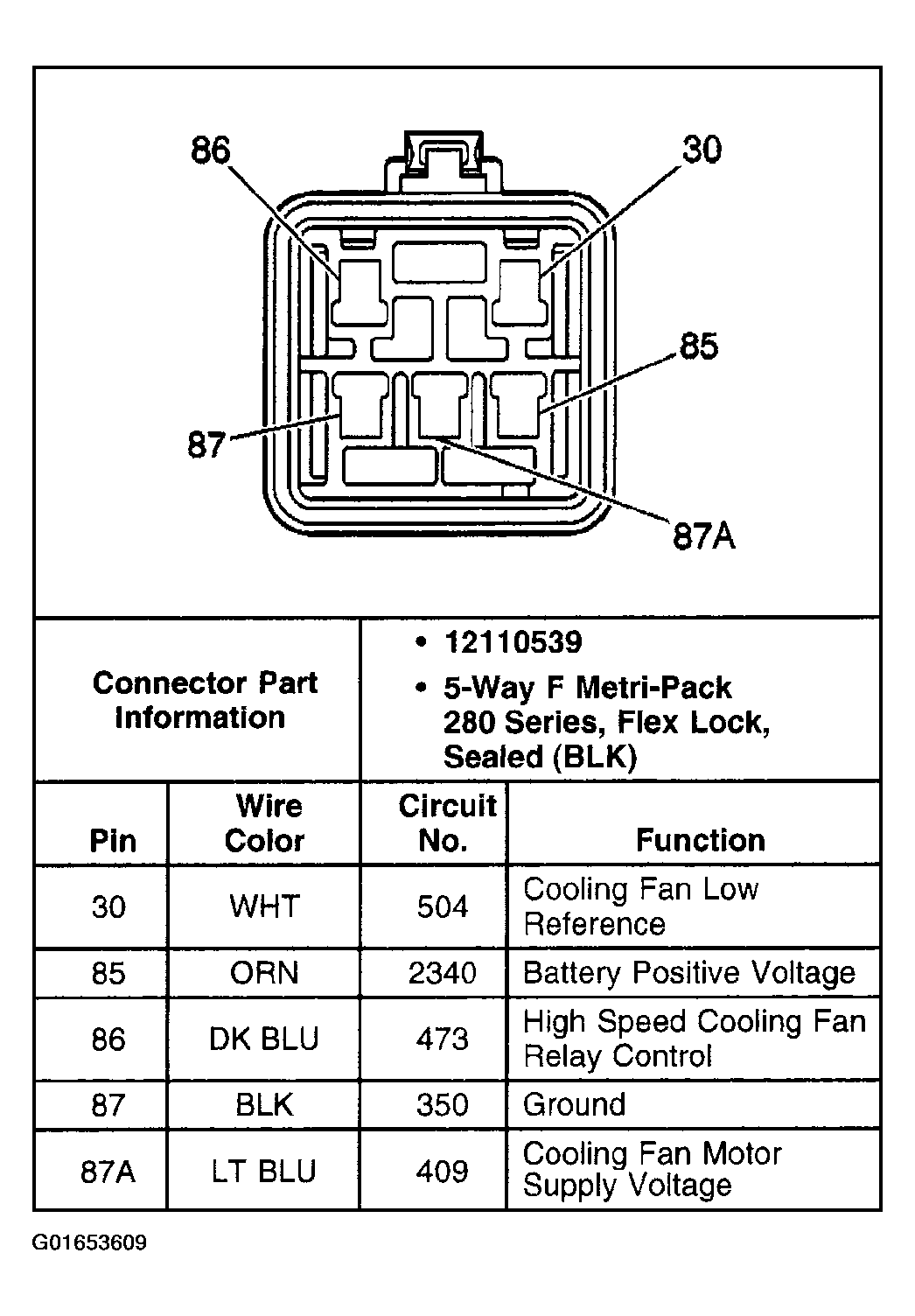

Fig 3: Cooling Fan S/P Relay

Courtesy of GENERAL MOTORS CORP.

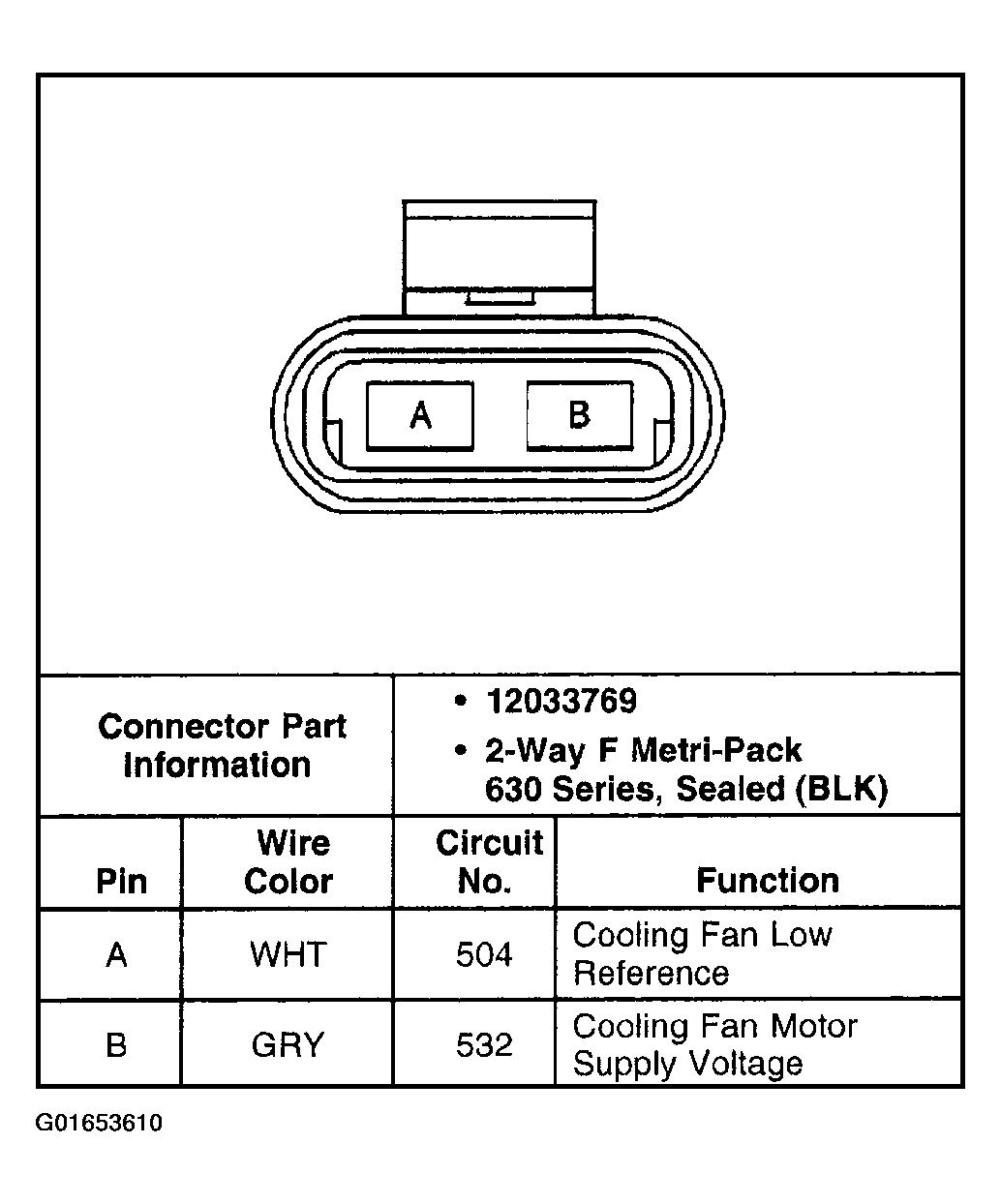

Fig 4: Cooling Fan - Left

Courtesy of GENERAL MOTORS CORP.

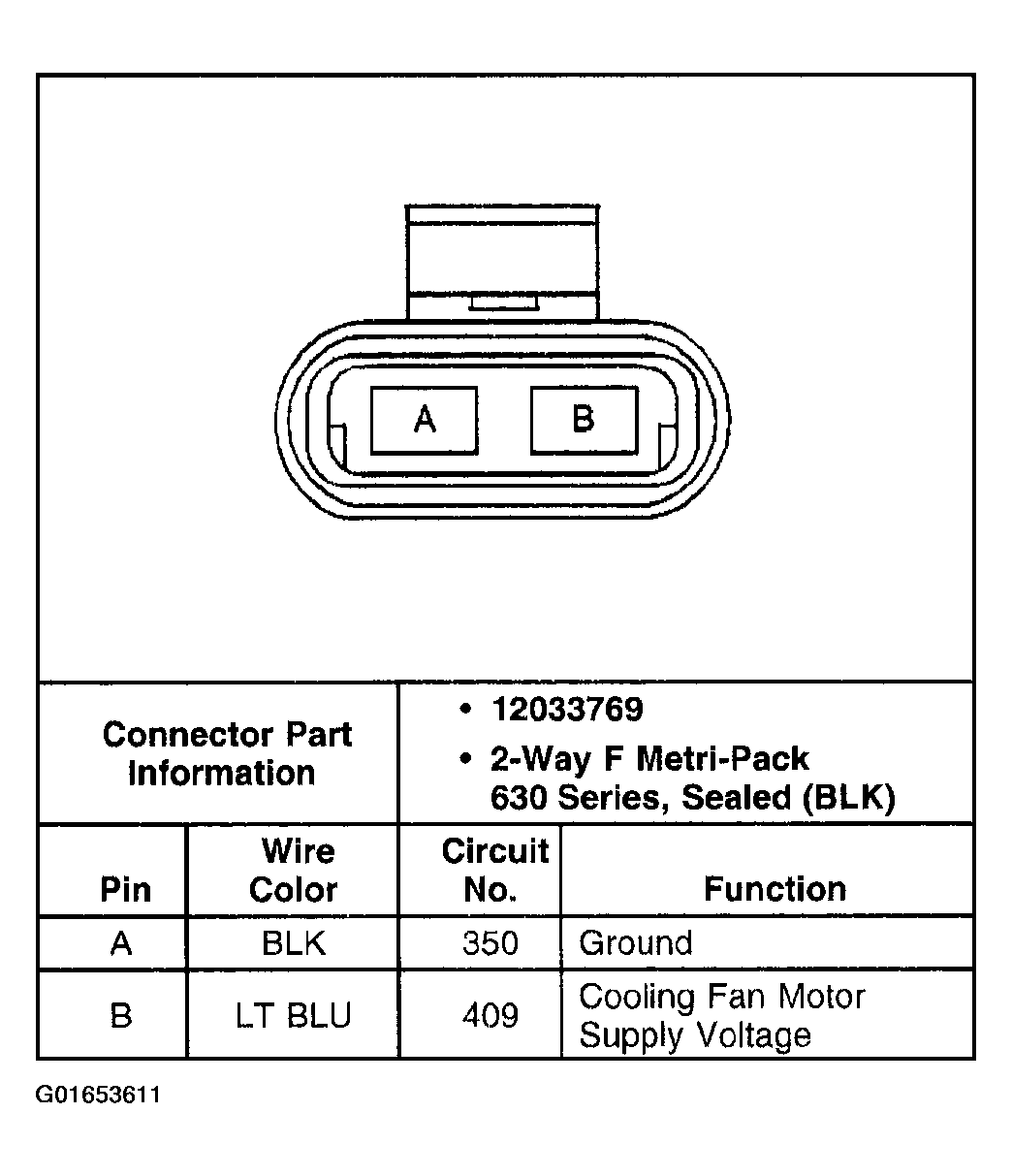

Fig 5: Cooling Fan - Right

Courtesy of GENERAL MOTORS CORP.

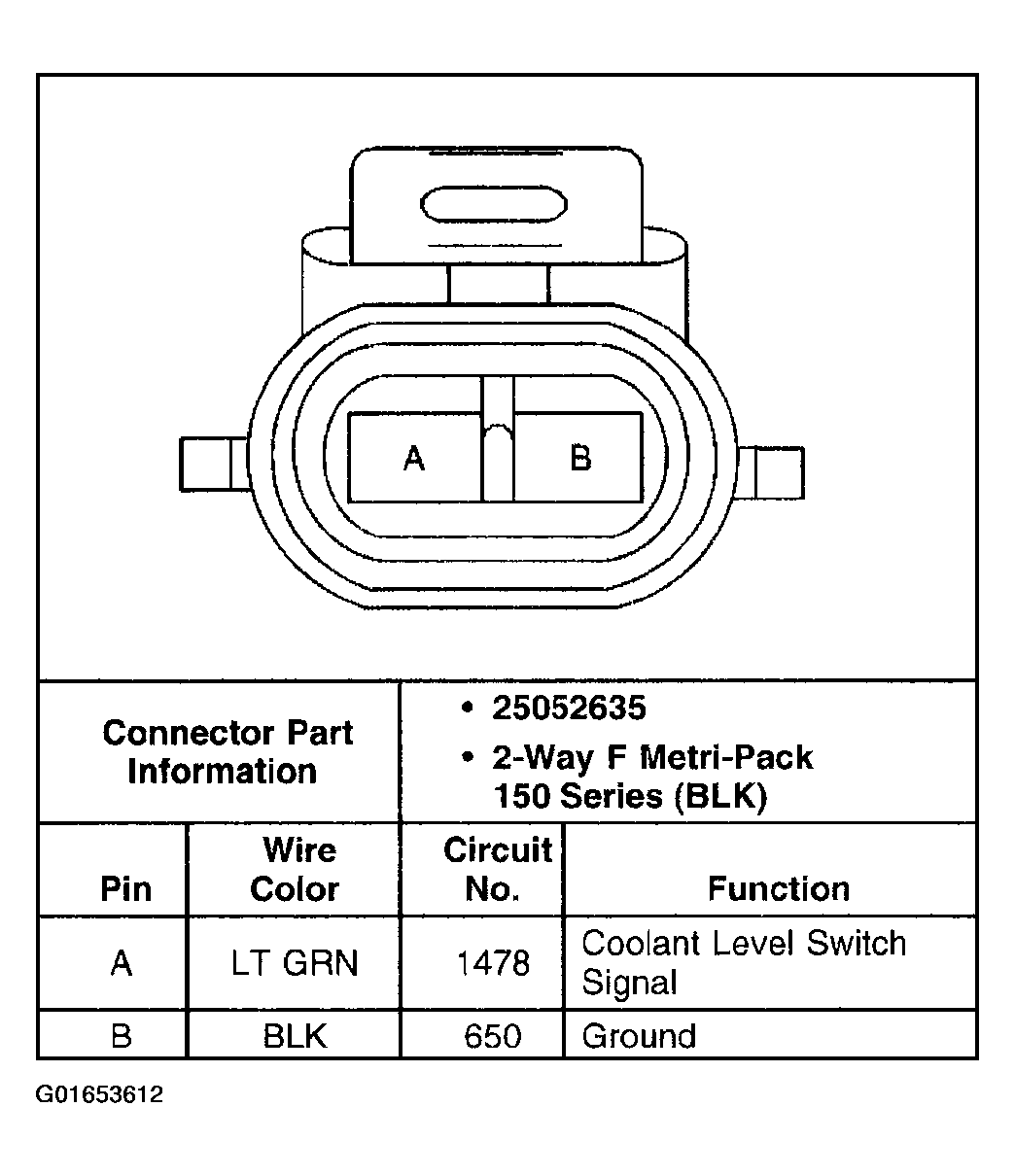

Fig 6: Coolant Level Switch

Courtesy of GENERAL MOTORS CORP.
