Removal Procedure
WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR in Seats.
- Disconnect the electrical connector.

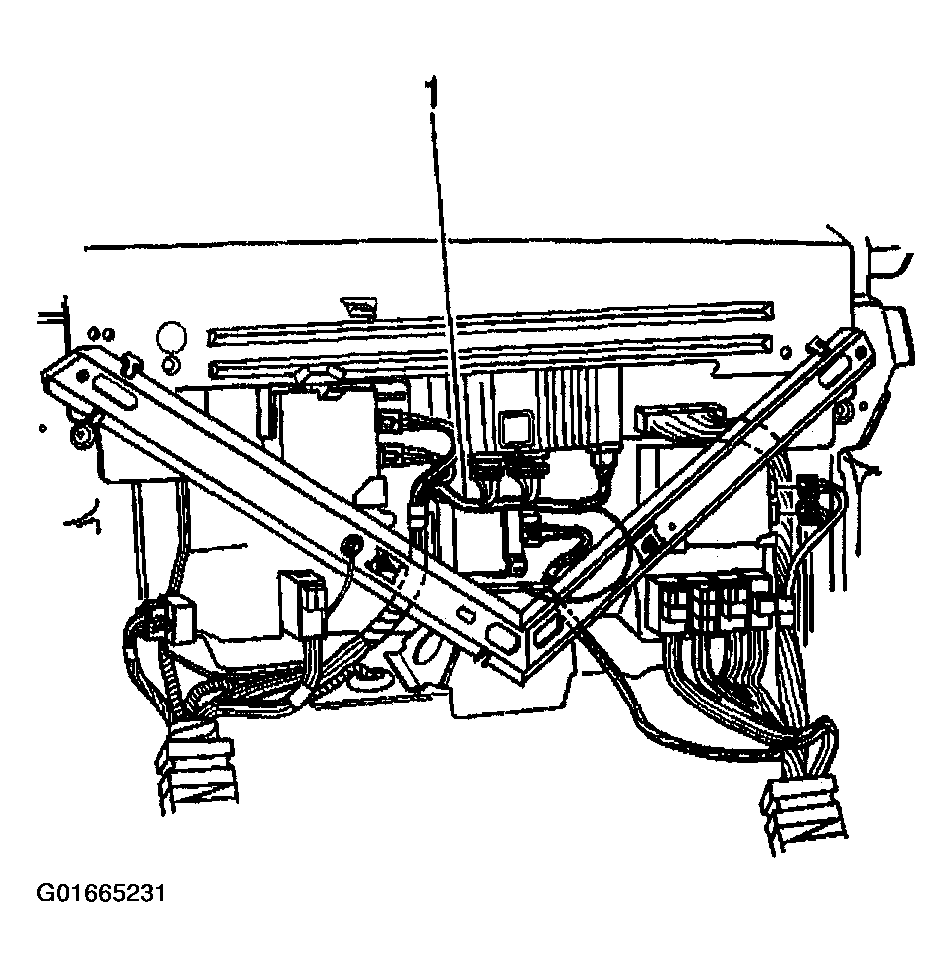

- Depress the locking tabs in order to remove the remote control door lock receiver (1) from the electronics bay board.
- Remove the remote control door lock receiver.
