Fig 1: Identifying Left Air Temperature Actuator Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

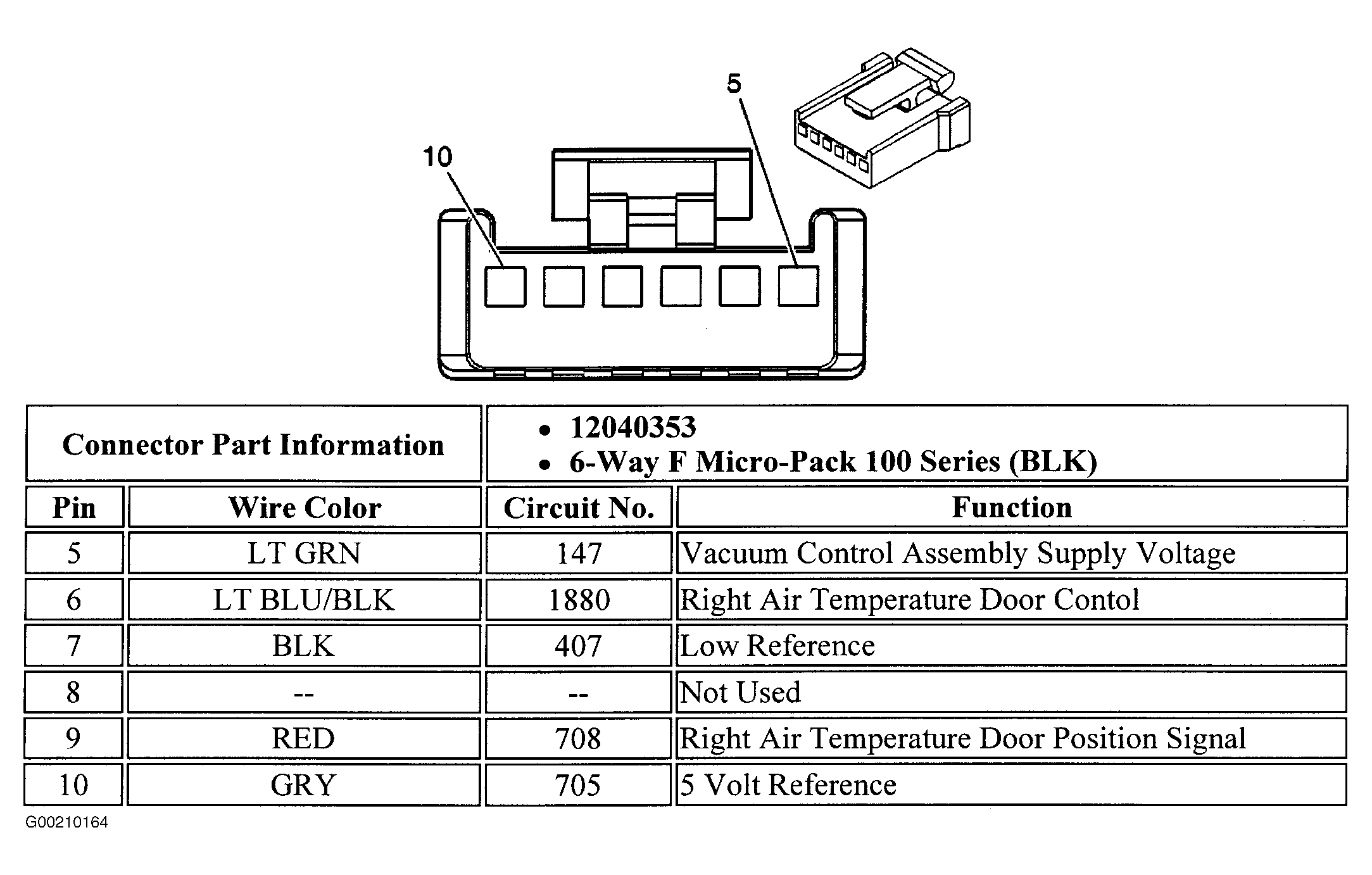

Fig 2: Identifying Right Air Temperature Actuator Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

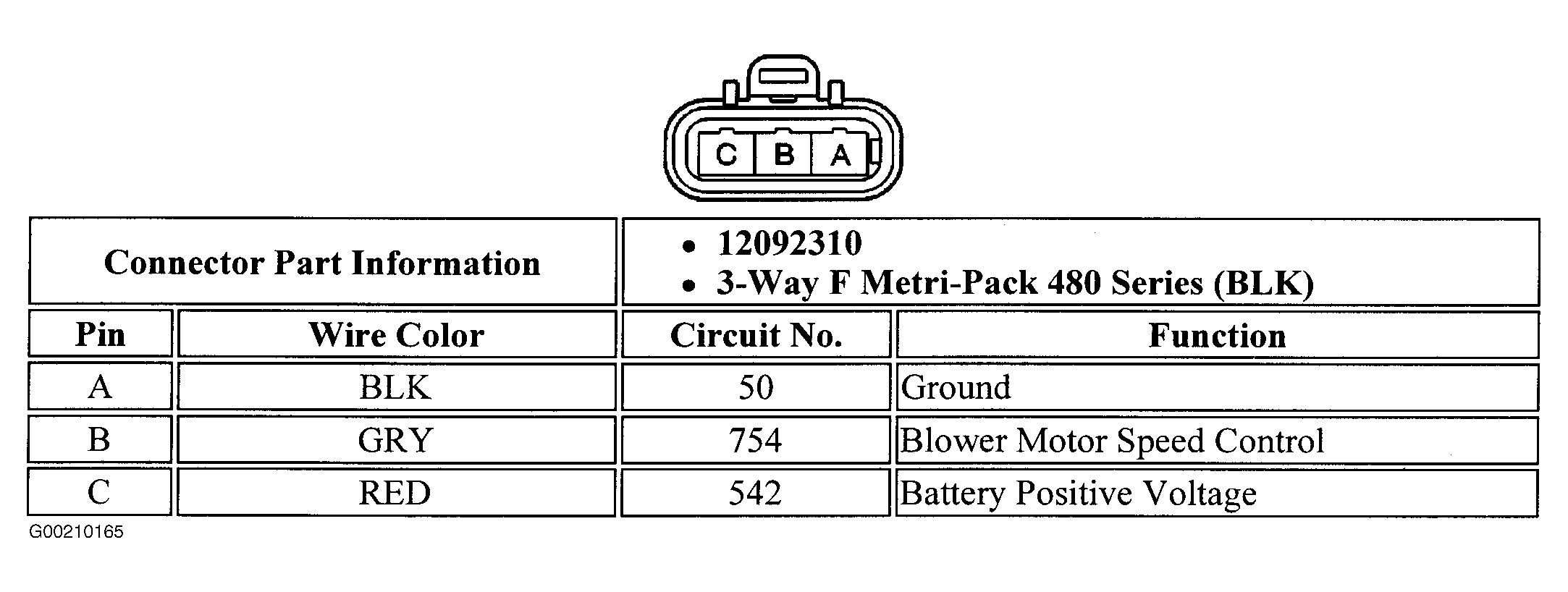

Fig 3: Identifying Blower Motor (Main) Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

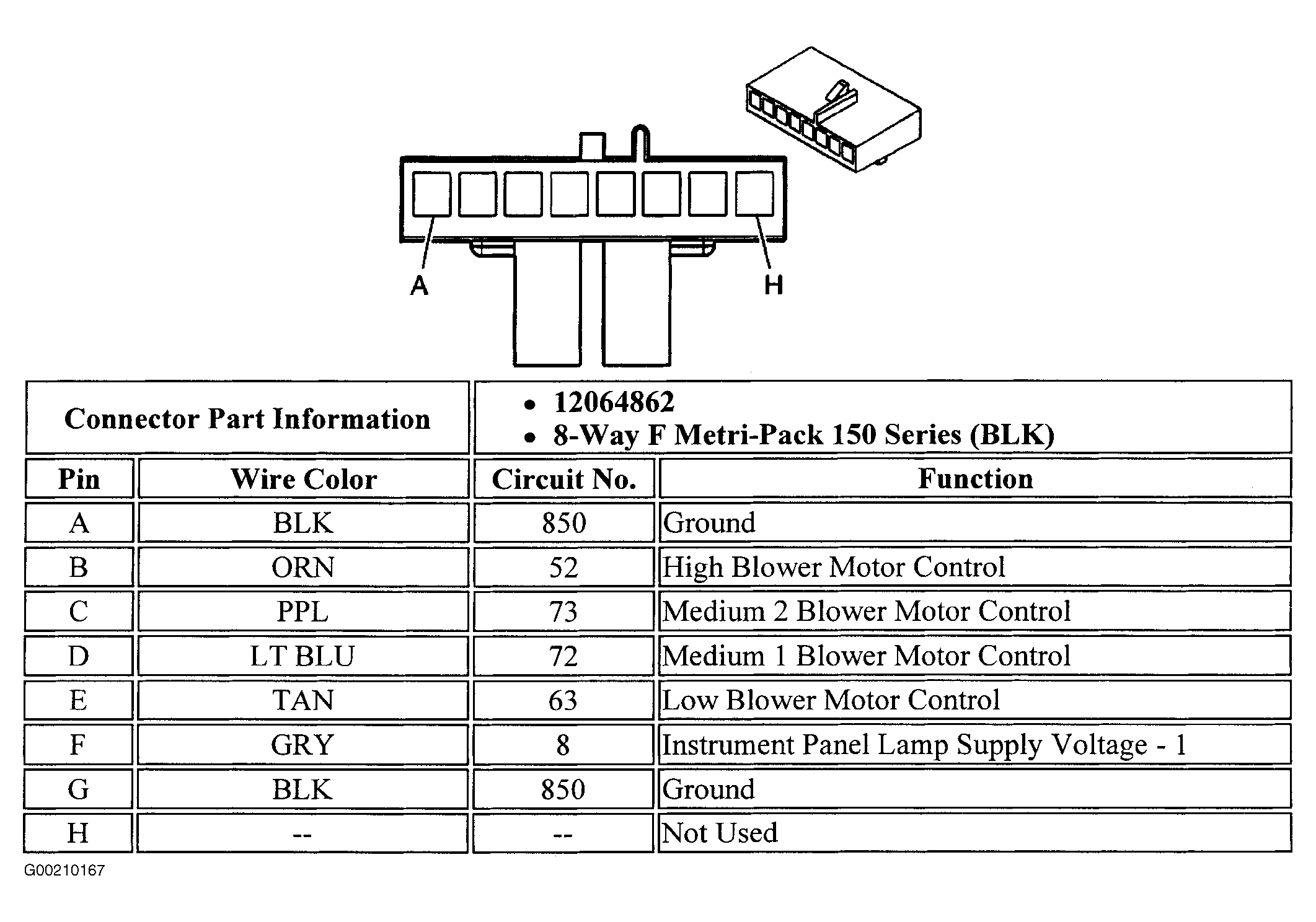

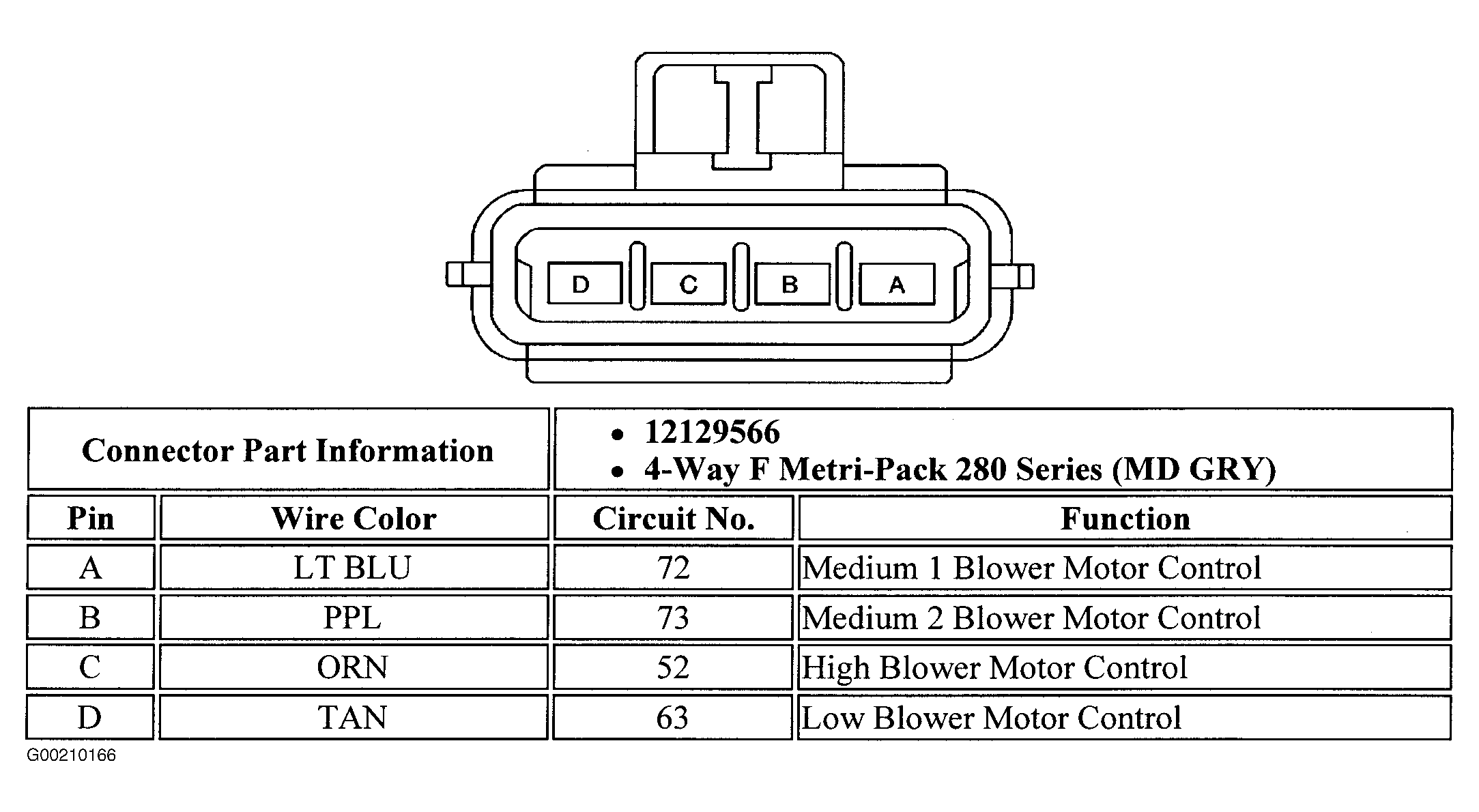

Fig 4: Identifying Blower Motor Resistor (Auxiliary) Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 5: Identifying Blower Motor Switch (Auxiliary) Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

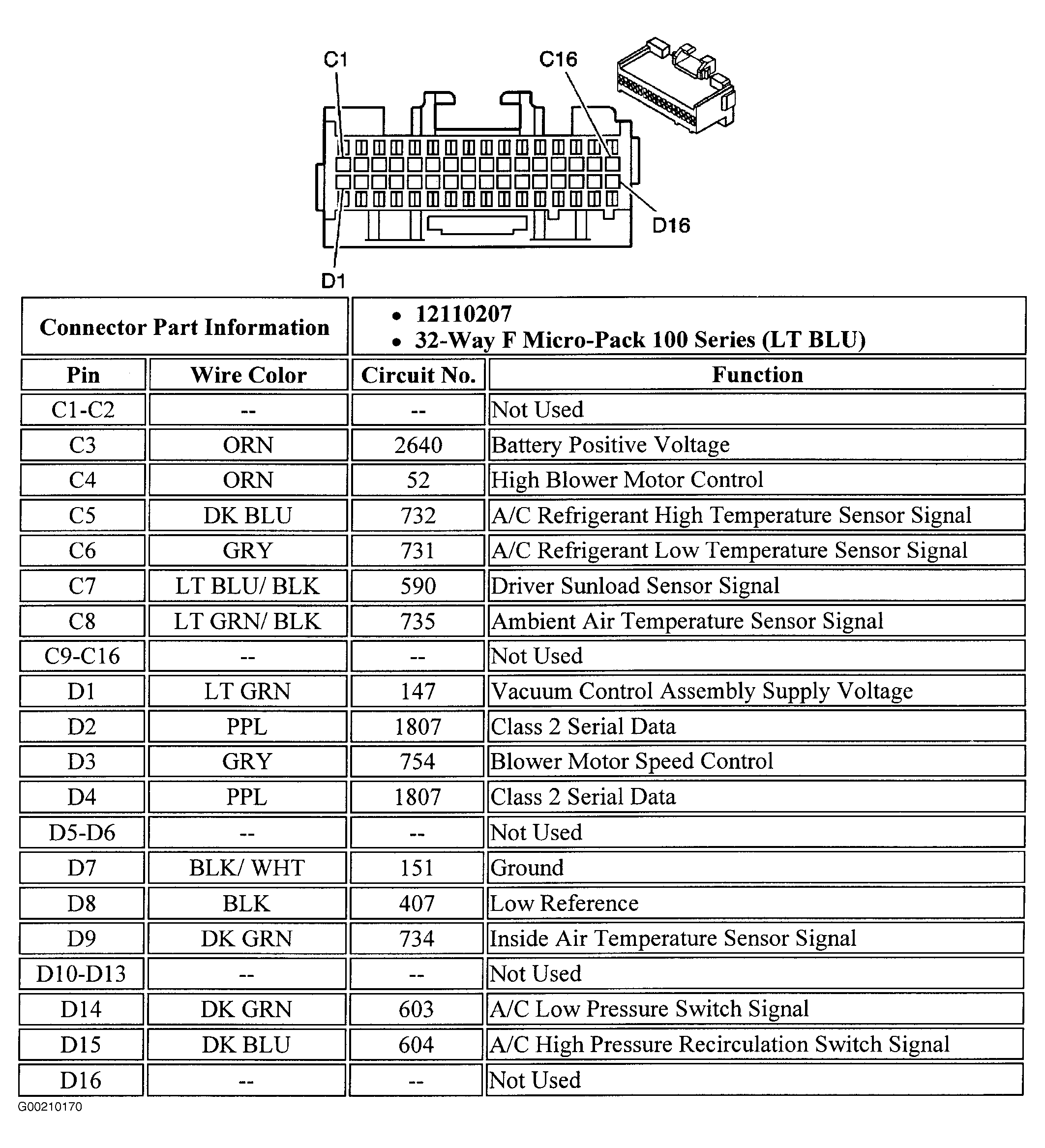

Fig 6: Identifying HVAC Control Module Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

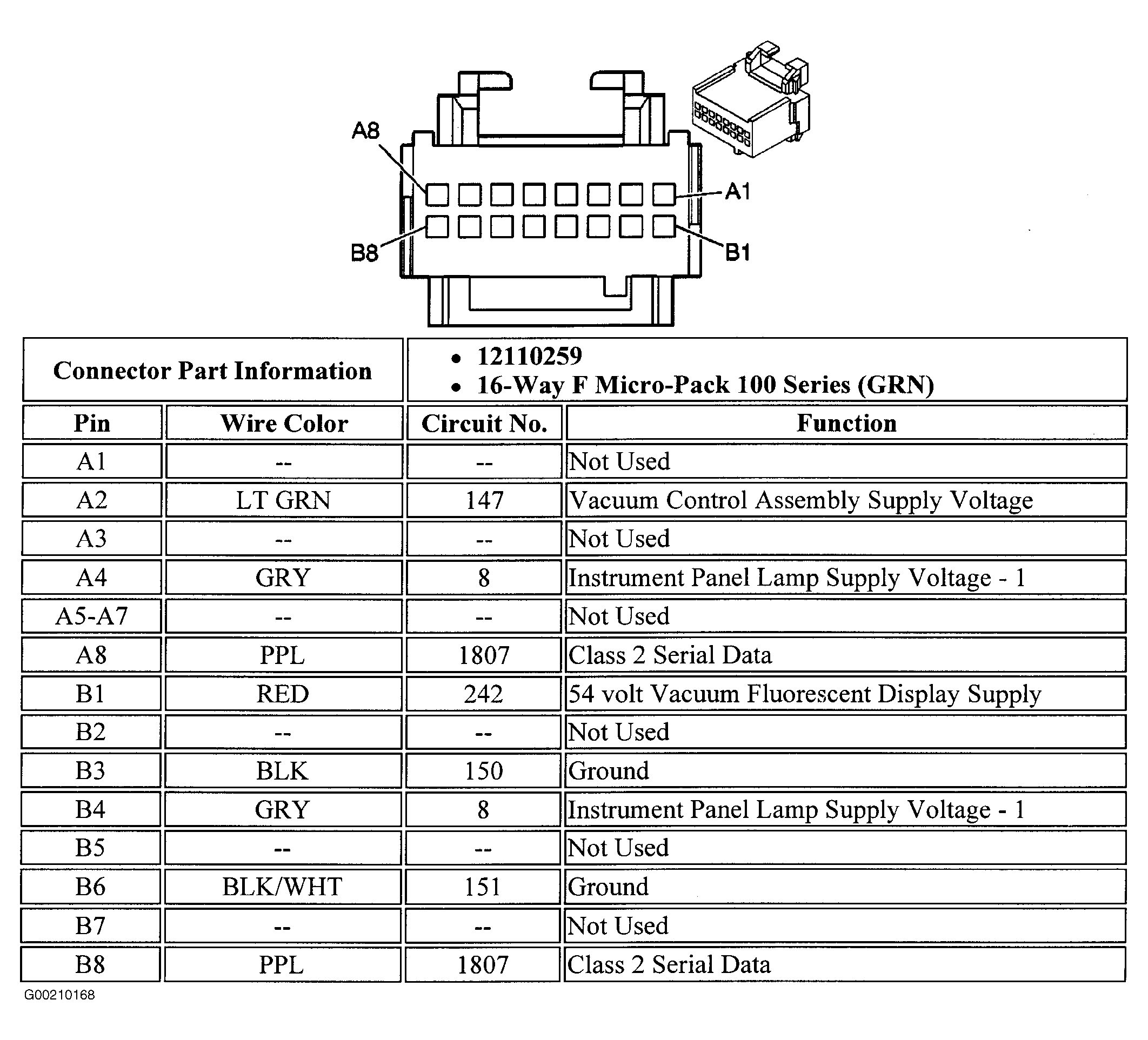

Fig 7: Identifying HVAC Control Processor C1 Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

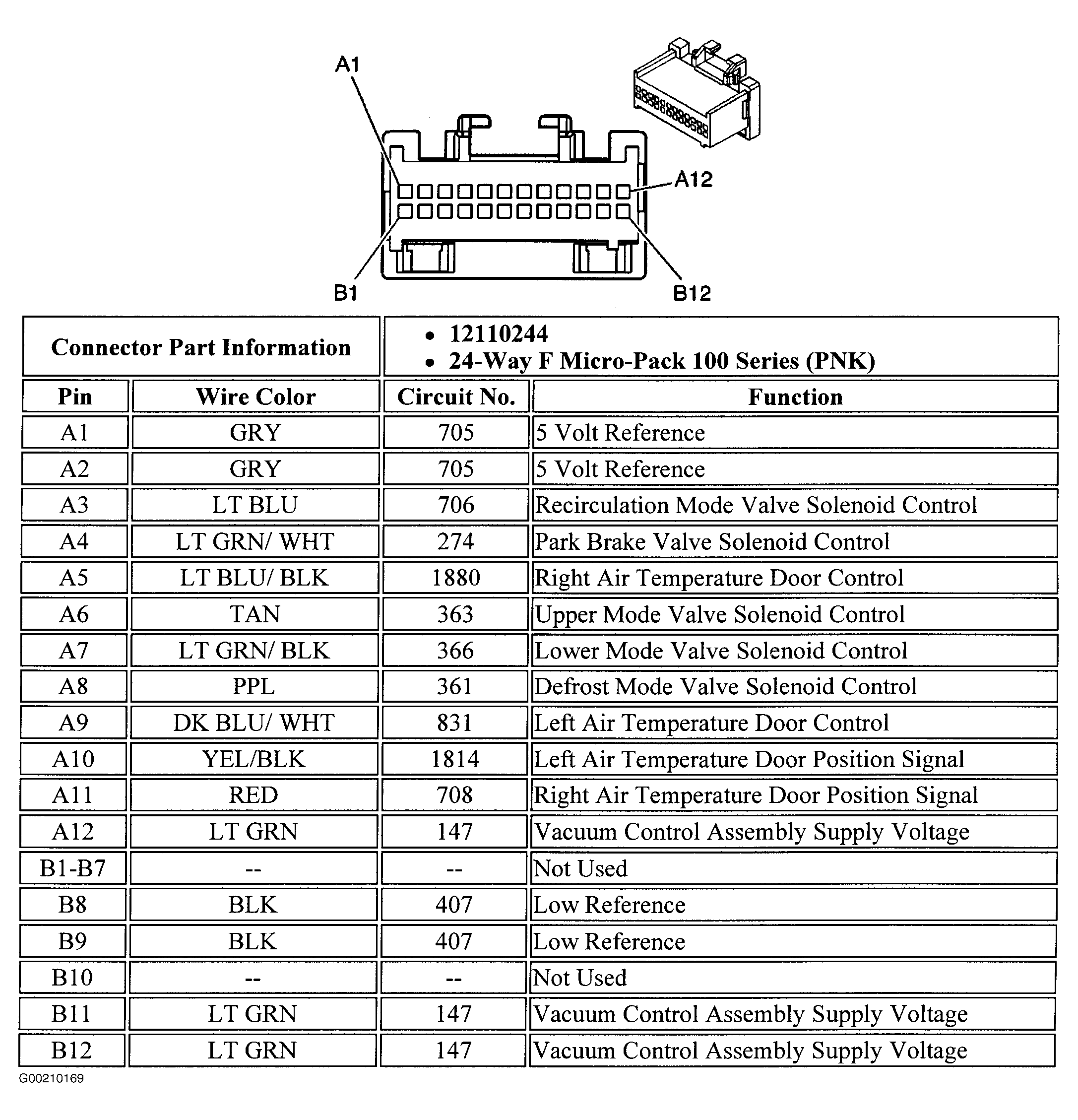

Fig 8: Identifying HVAC Control Processor C2 Harness Connector Terminals
