Removal Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR .
Remove the inside door handle from the door trim panel. Refer to DOOR HANDLE REPLACEMENT - FRONT INSIDE .

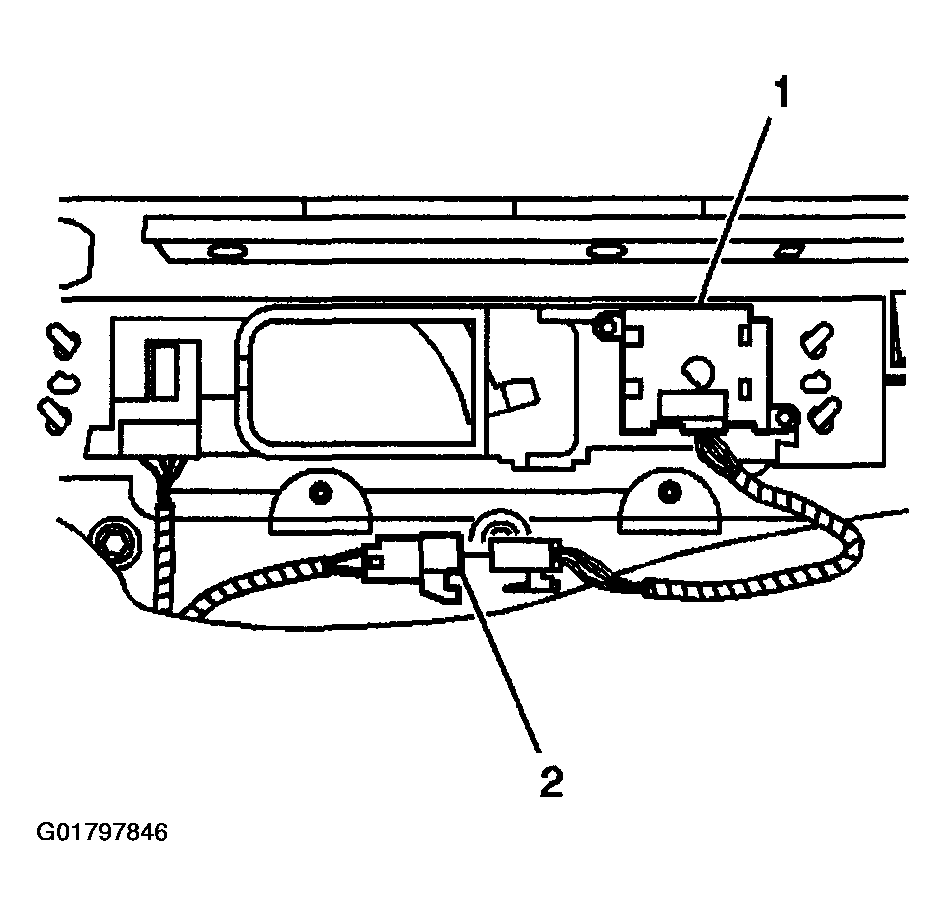

Disconnect the memory seat switch (1) electrical connector (2).

Fig 1: Memory Seat Switch Electrical Connector
Courtesy of GENERAL MOTORS CORP.

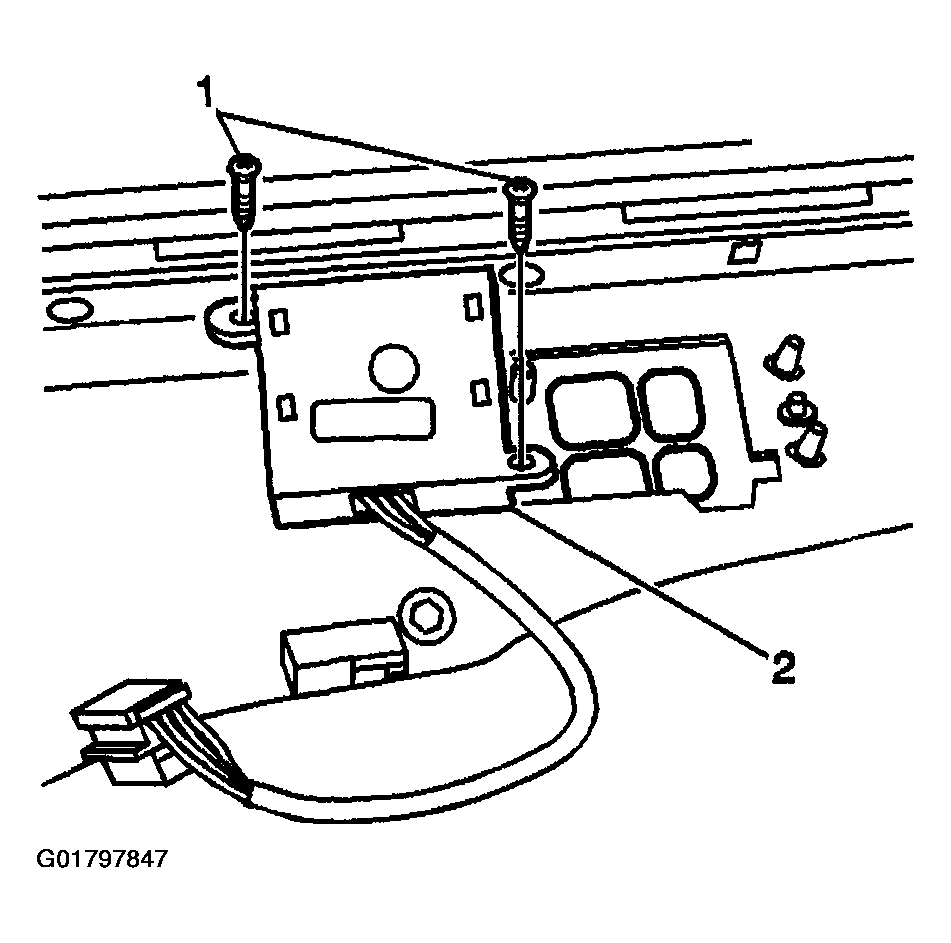

Remove the fasteners (1) from the memory seat switch (2).

Fig 2: Memory Seat Switch

Courtesy of GENERAL MOTORS CORP.

Remove the memory seat switch (2). from the door trim panel.
