Wiper/Washer System Connector End Views

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

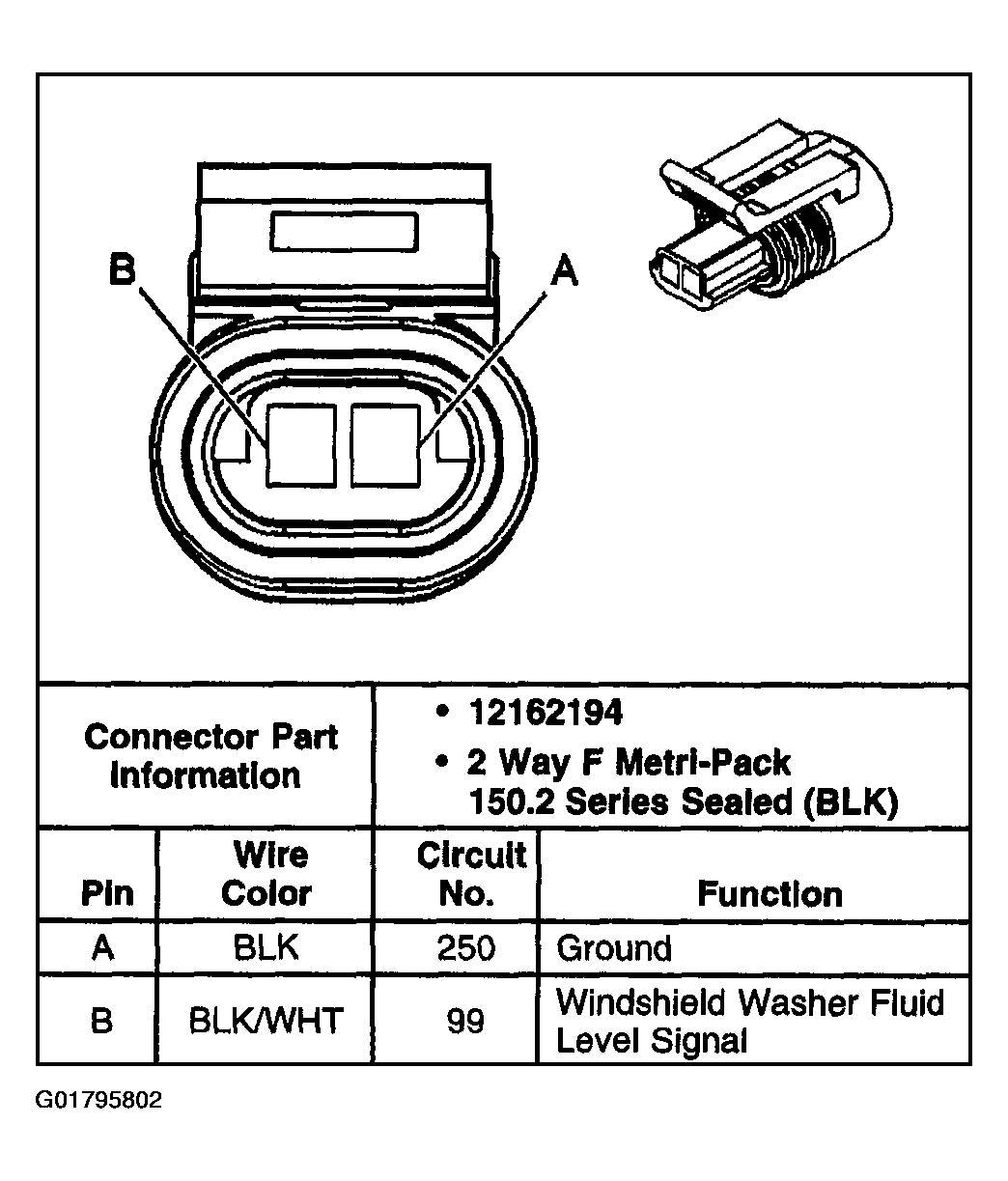

Fig 1: Headlamp Washer Fluid Level Switch (Export)

G01795802

Courtesy of GENERAL MOTORS CORP.

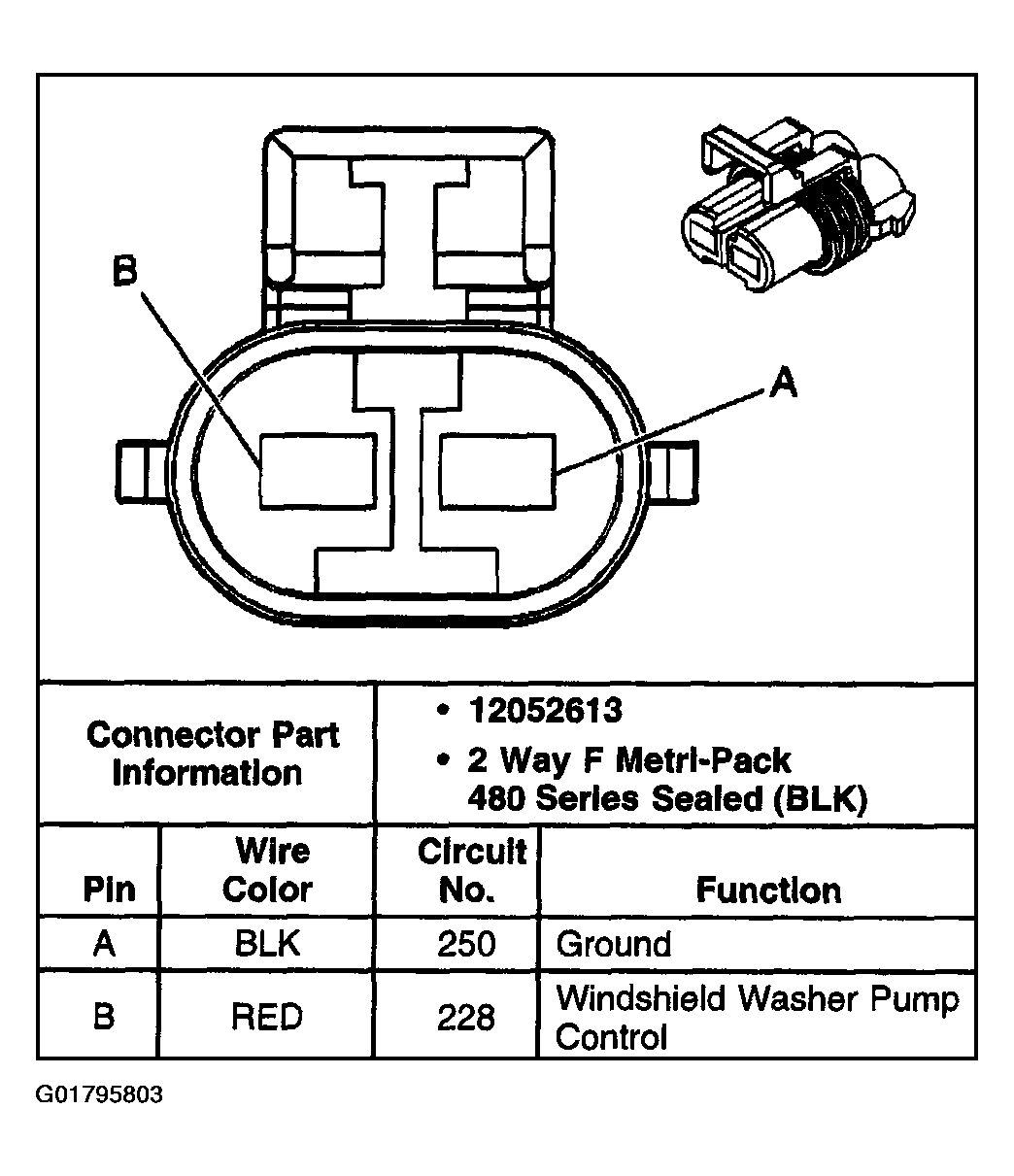

Fig 2: Headlamp Washer Fluid Pump (Export)

G01795803

Courtesy of GENERAL MOTORS CORP.

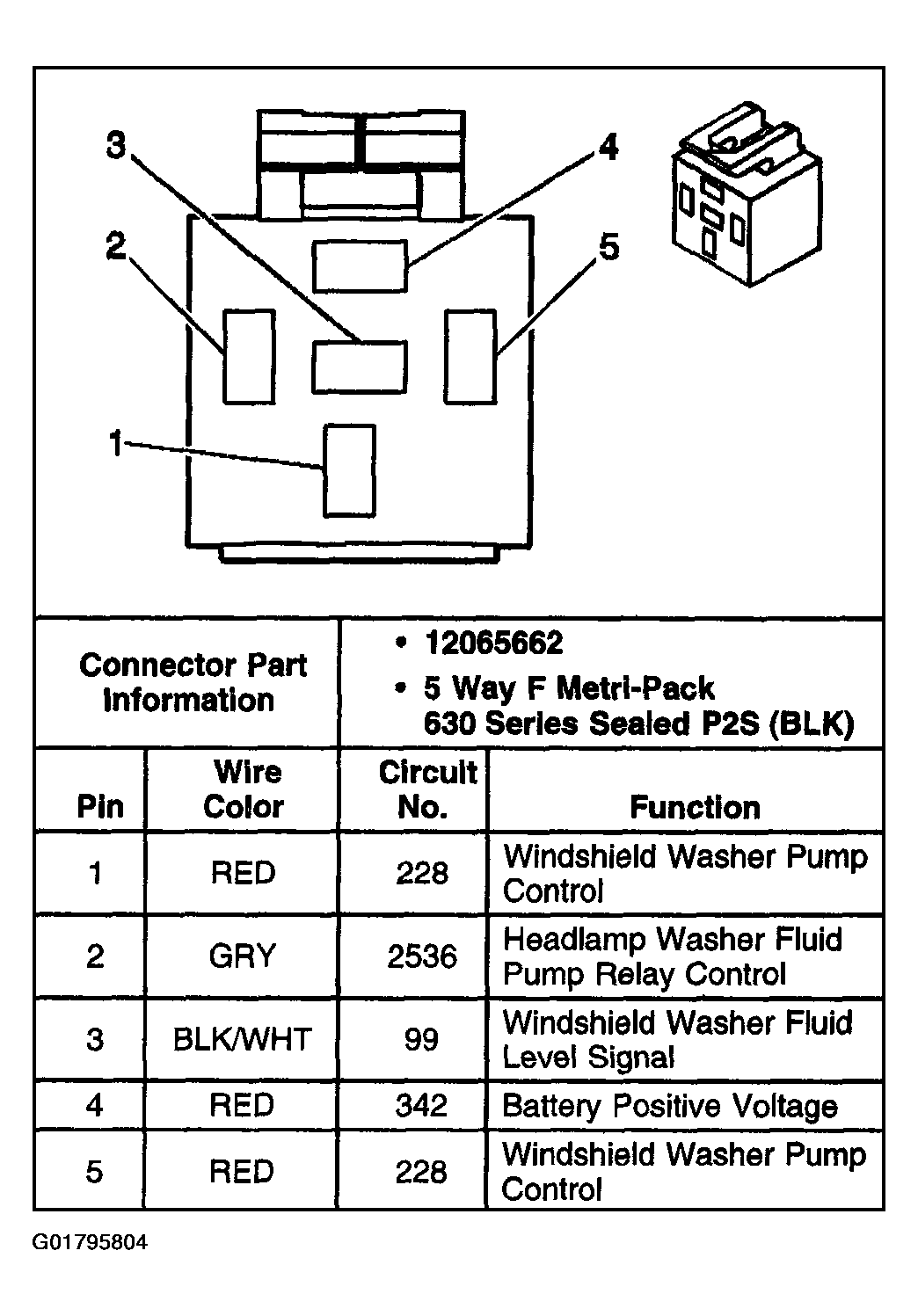

Fig 3: Headlamp Washer Fluid Pump Relay (Export)

G01795804

Courtesy of GENERAL MOTORS CORP.

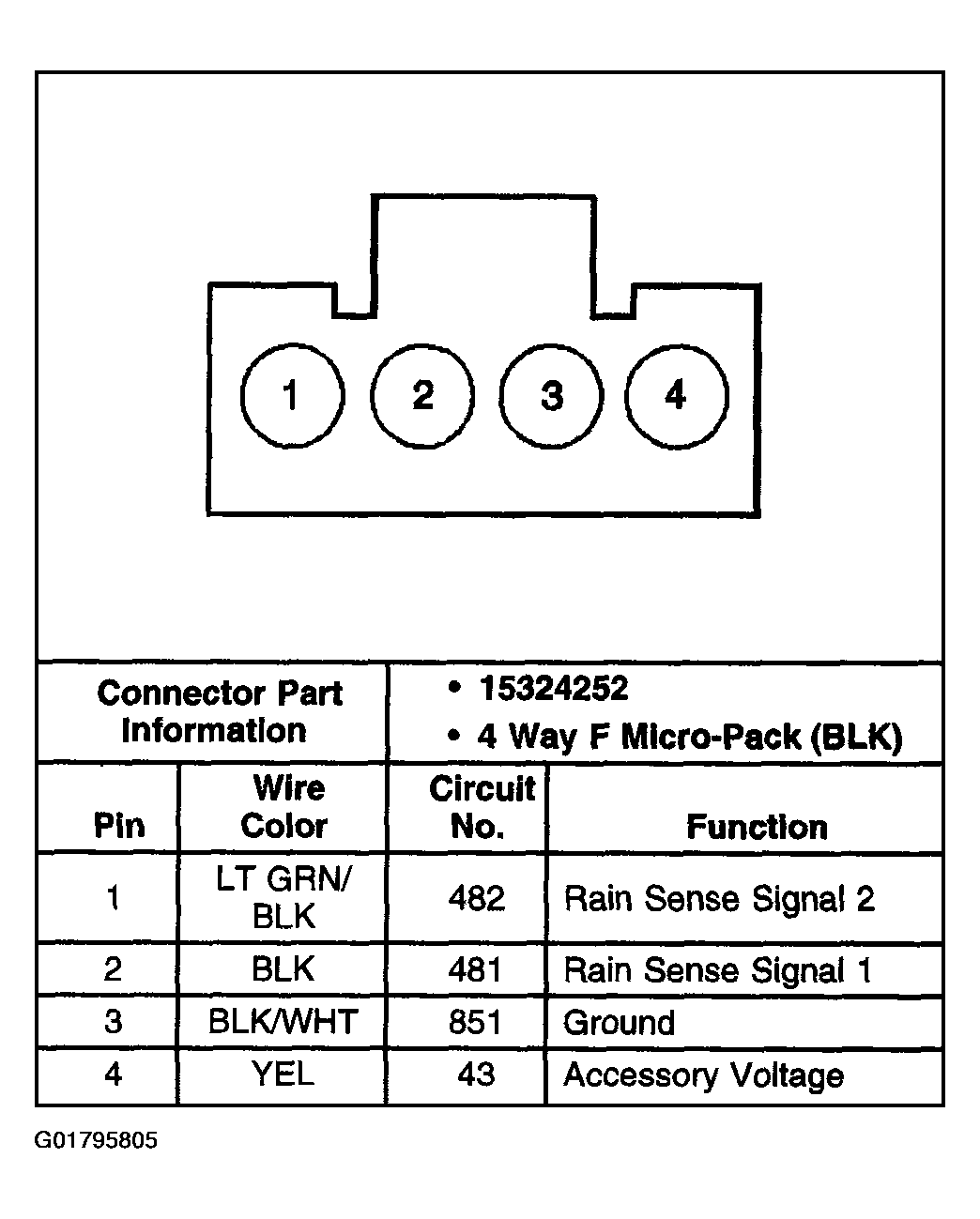

Fig 4: Outside Moisture Sensor

G01795805

Courtesy of GENERAL MOTORS CORP.

Fig 5: Windshield Washer Fluid Level Switch

G01795806

Courtesy of GENERAL MOTORS CORP.

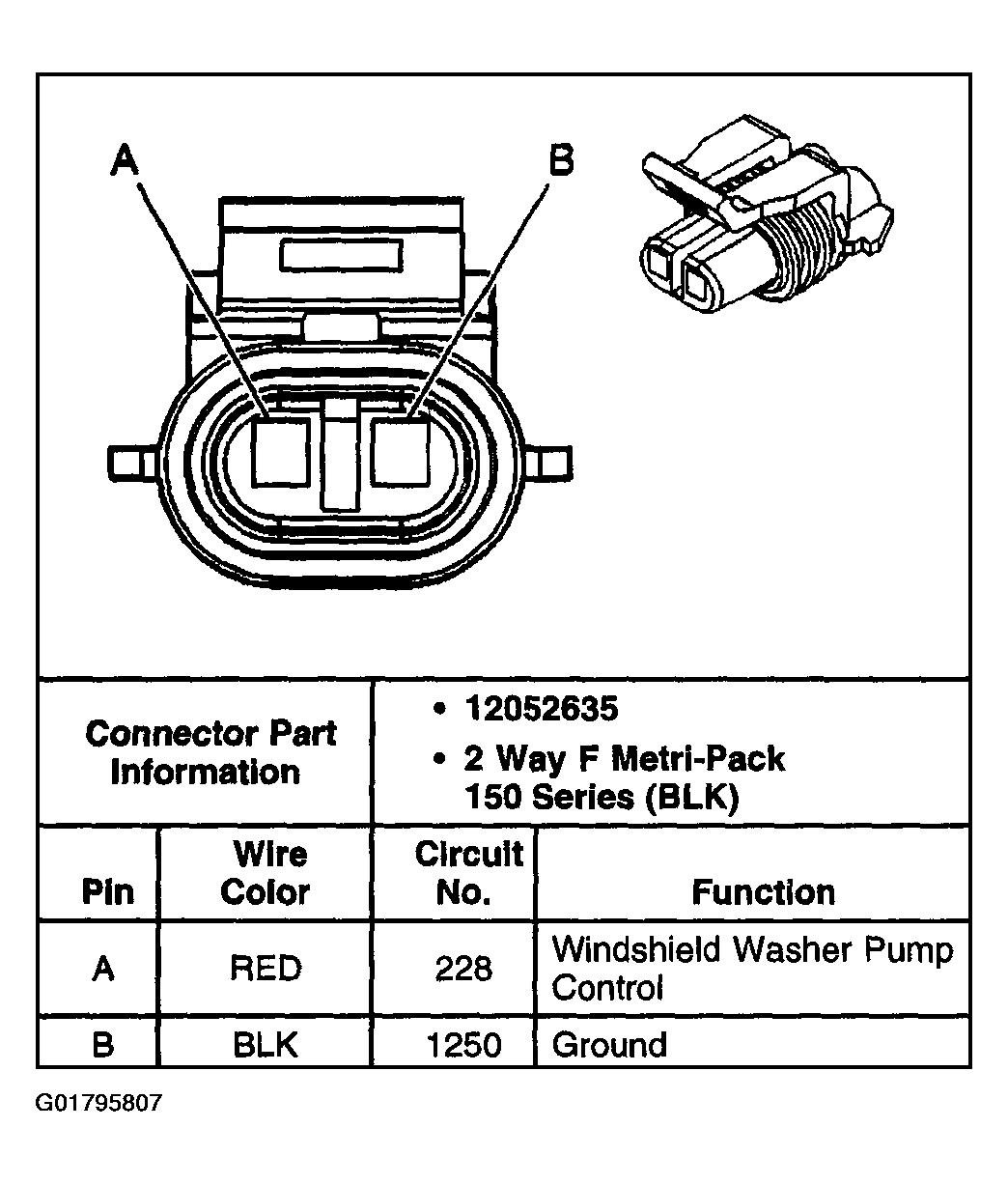

Fig 6: Windshield Washer Fluid Pump

G01795807

Courtesy of GENERAL MOTORS CORP.

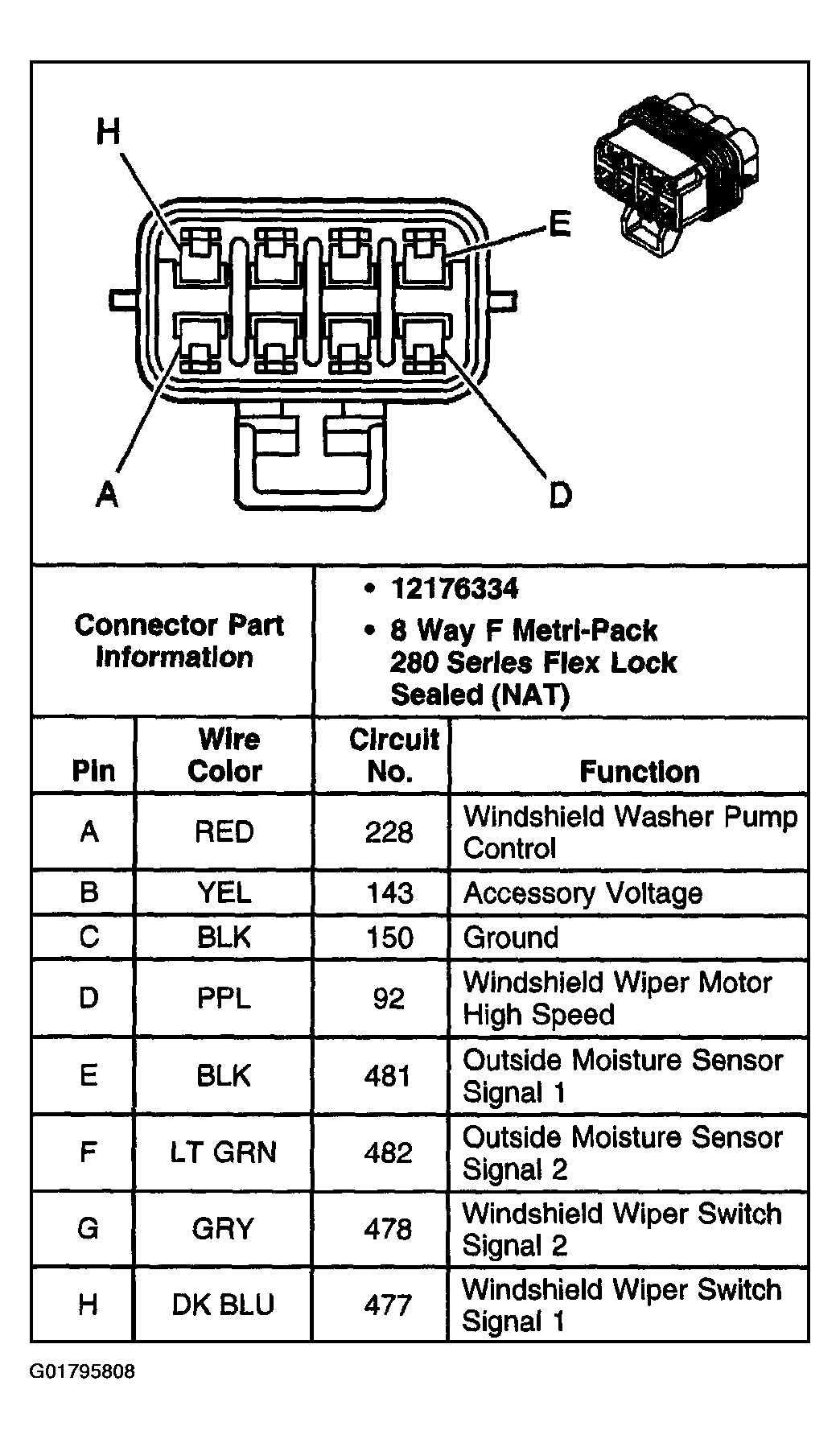

Fig 7: Windshield Wiper Motor

G01795808

Courtesy of GENERAL MOTORS CORP.
