Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville and 2001 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

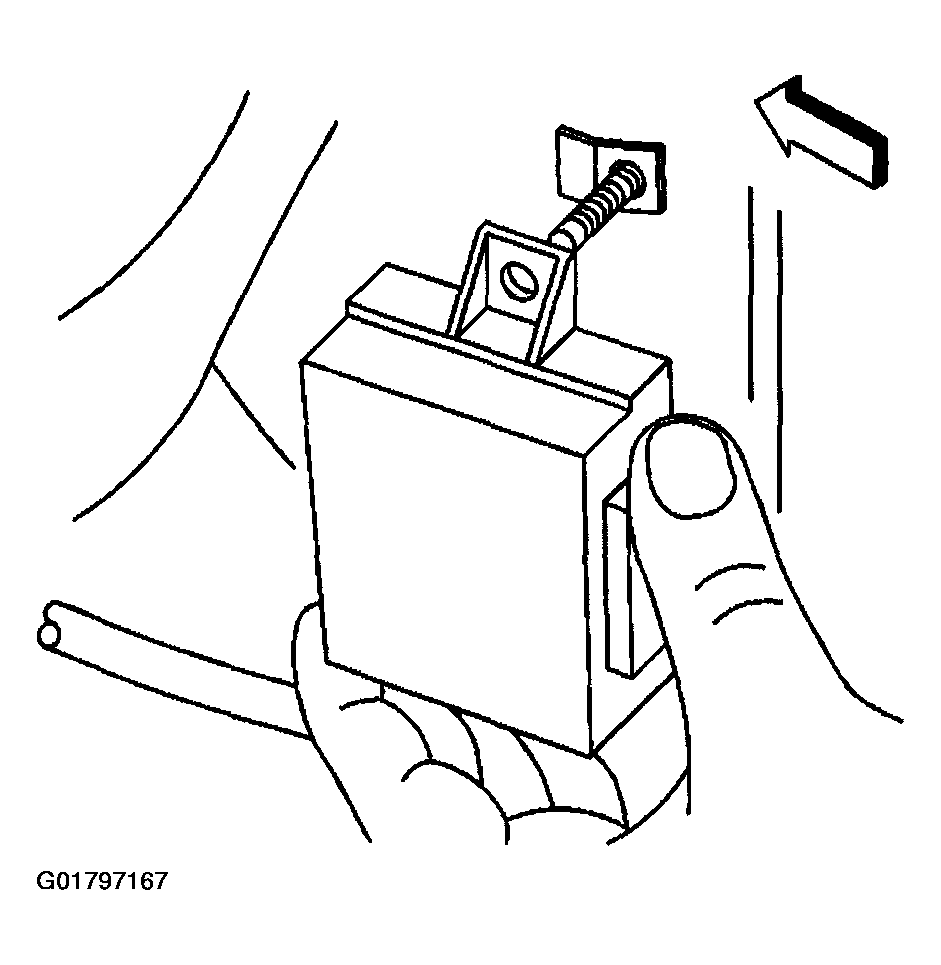

Fig 1: View Of Rear Object Sensor Control Module Assembly

Courtesy of GENERAL MOTORS CORP.

Install the rear object sensor control module assembly to the vehicle.
NOTE: Refer to FASTENER NOTICE .
Install the rear object sensor control module assembly mounting nuts.
Tighten

Tighten the rear object sensor control module assembly mounting nuts to 9 N.m (80 lb in).

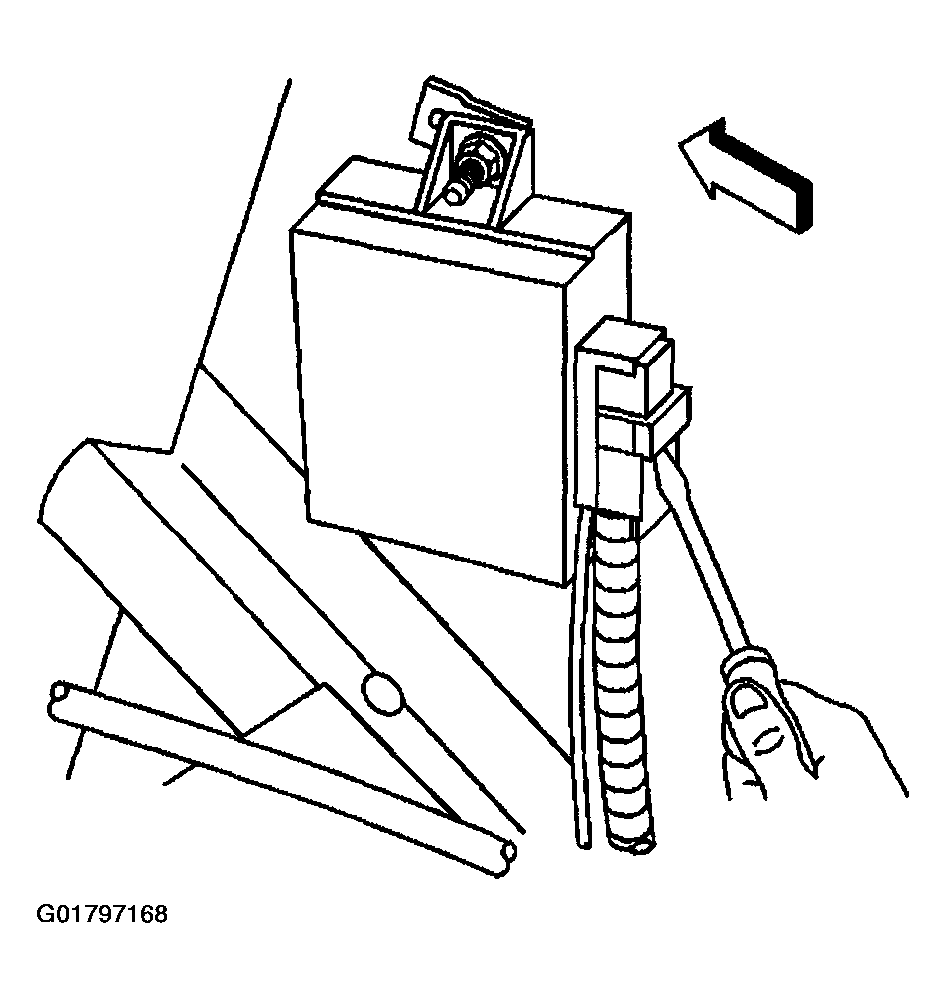

Fig 2: View Of Connector

Courtesy of GENERAL MOTORS CORP.

Install the electrical connector. Press in the locking tab.
Install the rear compartment side trim. Refer to COMPARTMENT SIDE TRIM REPLACEMENT - RH REAR .
