Removal Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville and 2001 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

Remove the right rear compartment side trim. Refer to COMPARTMENT SIDE TRIM REPLACEMENT - RH REAR .

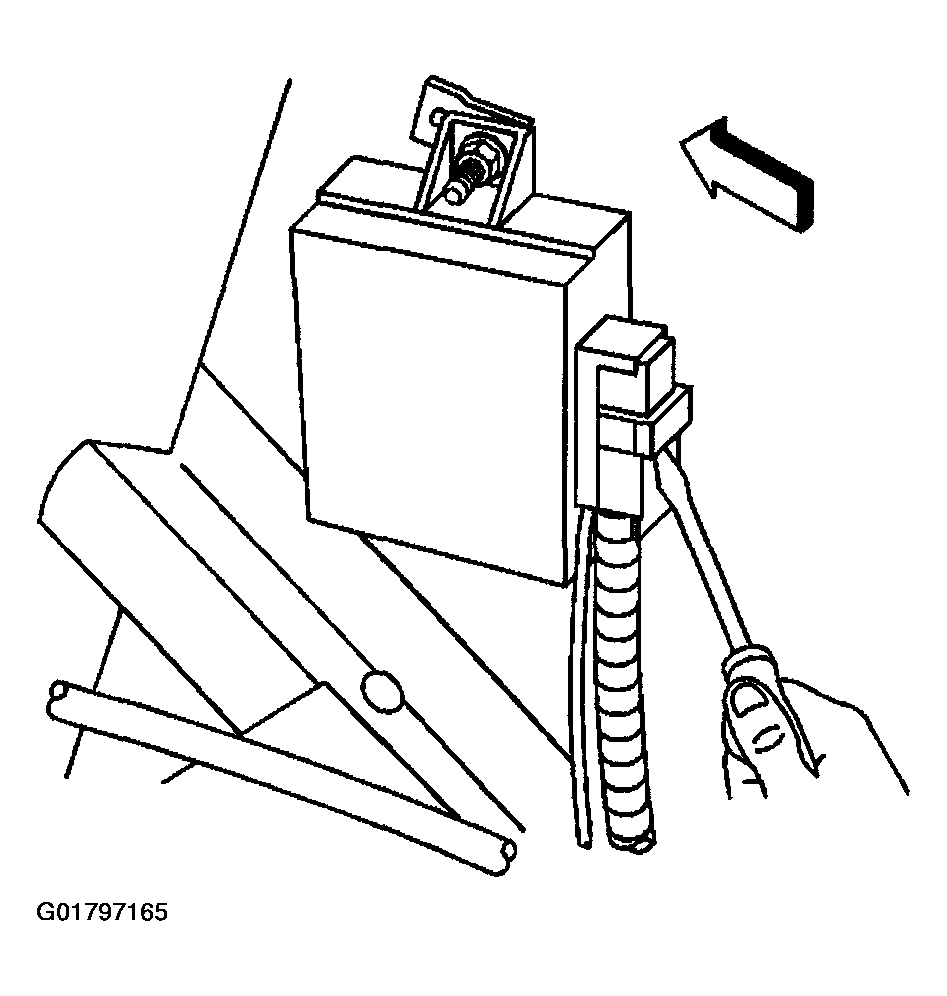

Fig 1: View Of Connector

Courtesy of GENERAL MOTORS CORP.

Insert a small bladed screwdriver under the locking tab and unlock the connector.
Disconnect the connector from the rear object sensor control module assembly.
Remove the mounting nuts retaining the rear object sensor control module assembly to the vehicle.
Remove the rear object sensor control module assembly from the vehicle.

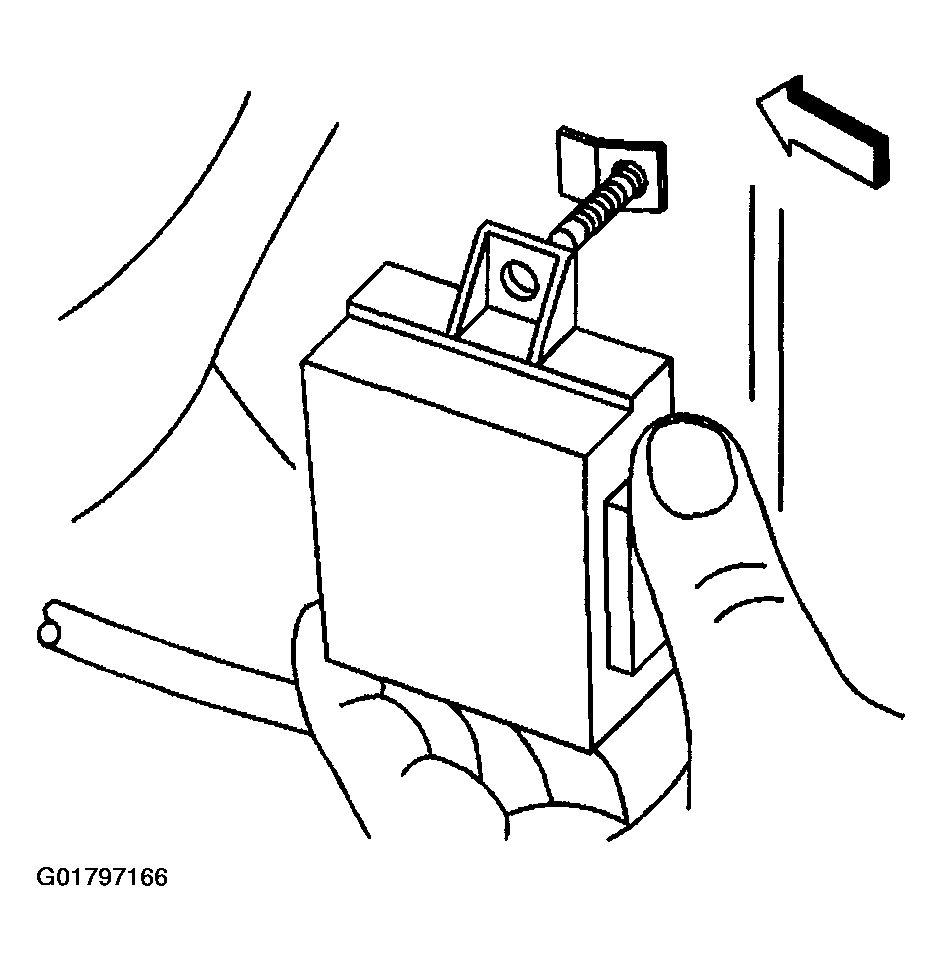

Fig 2: View Of Rear Object Sensor Control Module Assembly
Courtesy of GENERAL MOTORS CORP.
