Removal Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville and 2001 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear bumper fascia. Refer to FASCIA REPLACEMENT - REAR BUMPER .
Disconnect the electrical connector from the rear object sensor.

Fig 1: View Of Rear Object Sensor Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Lift the locking tabs on the housing (4). Remove the rear object sensor (1).

Fig 2: Locating Rear Object Sensor Components
Courtesy of GENERAL MOTORS CORP.
Squeeze the spring (1). Remove the spring from the housing (2).

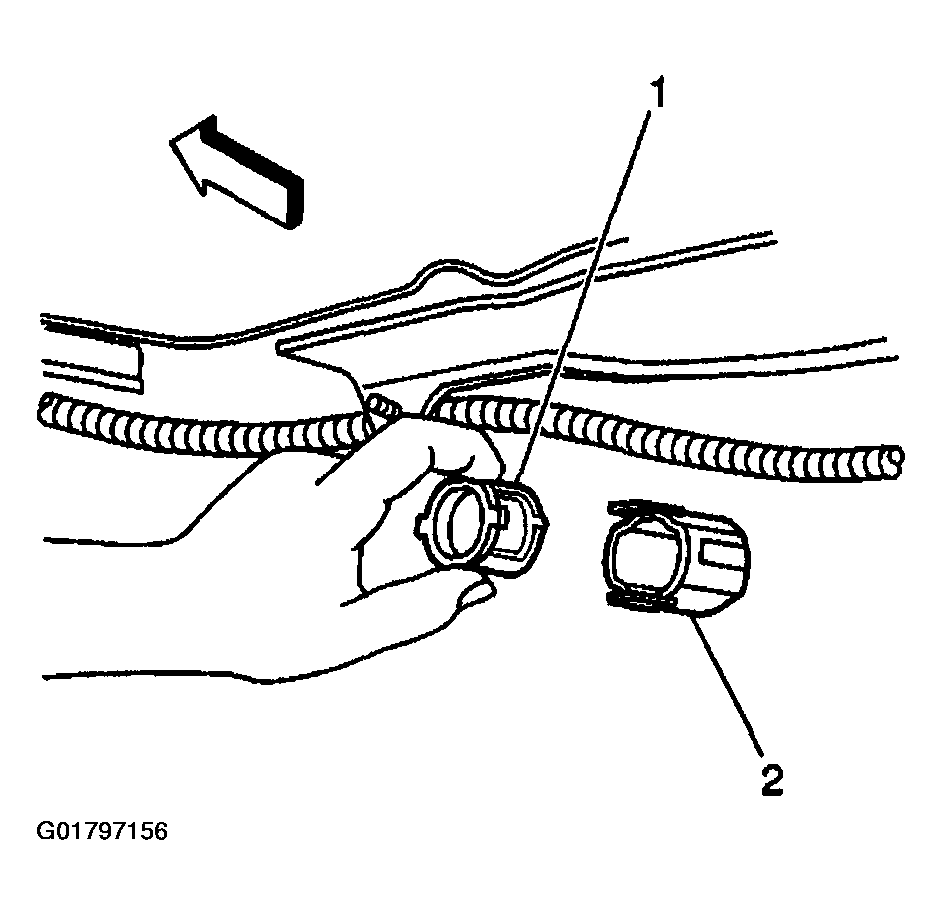

Fig 3: View Of Housing & Spring
Courtesy of GENERAL MOTORS CORP.
Release the tabs on the housing. Remove the housing.

Fig 4: View Of Housing
Courtesy of GENERAL MOTORS CORP.
Remove the bezel by pushing the bezel through the fascia.

Fig 5: View Of Bezel
Courtesy of GENERAL MOTORS CORP.
