Removal Procedure

  1. Remove the front seat inboard finish panel. Refer to SEAT ADJUSTER TRACK COVER REPLACEMENT - FRONT .
  2. Remove the nut (2) securing the buckle side belt (1) from the seat cushion frame.
  3. Remove the buckle side belt form the seat.

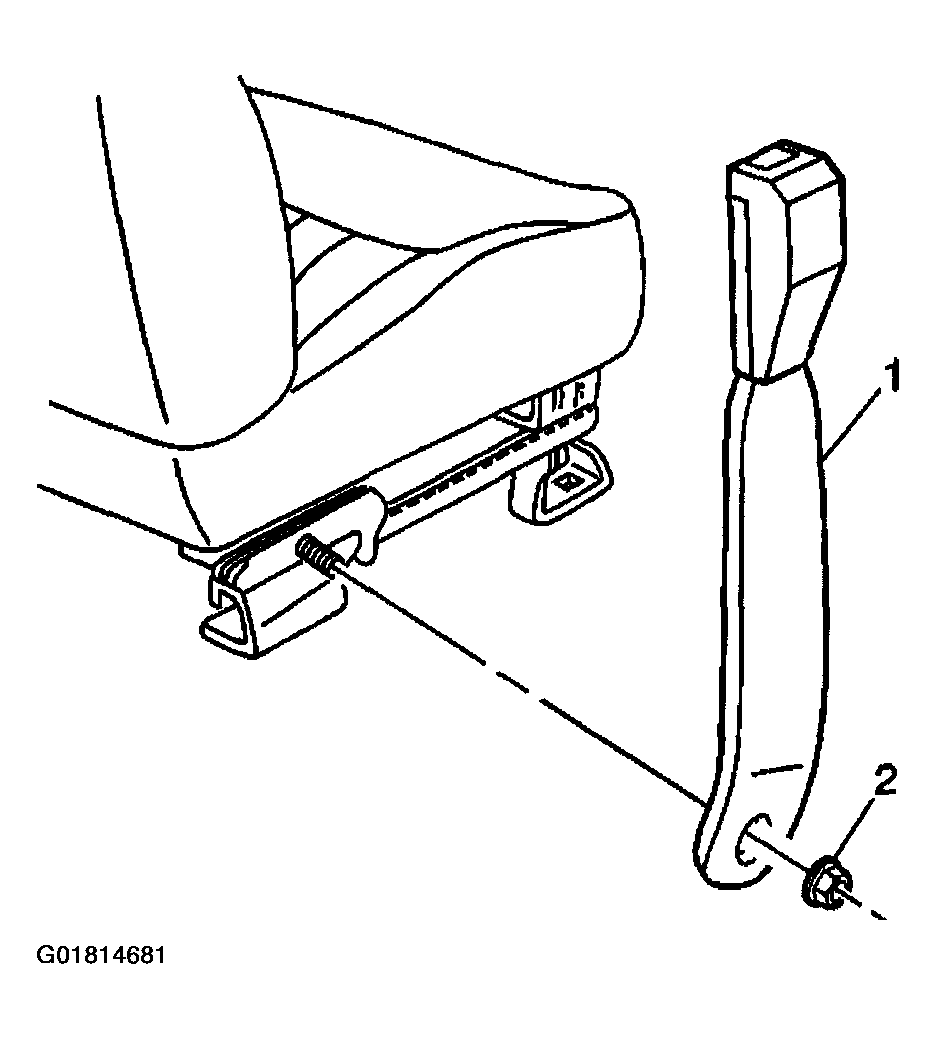

    Fig 1: Removing Nut & Buckle Side Belt (Left Front)
    G01814681Courtesy of GENERAL MOTORS CORP.
