Power Steering Pump Disassembled View (CB Series Pump)

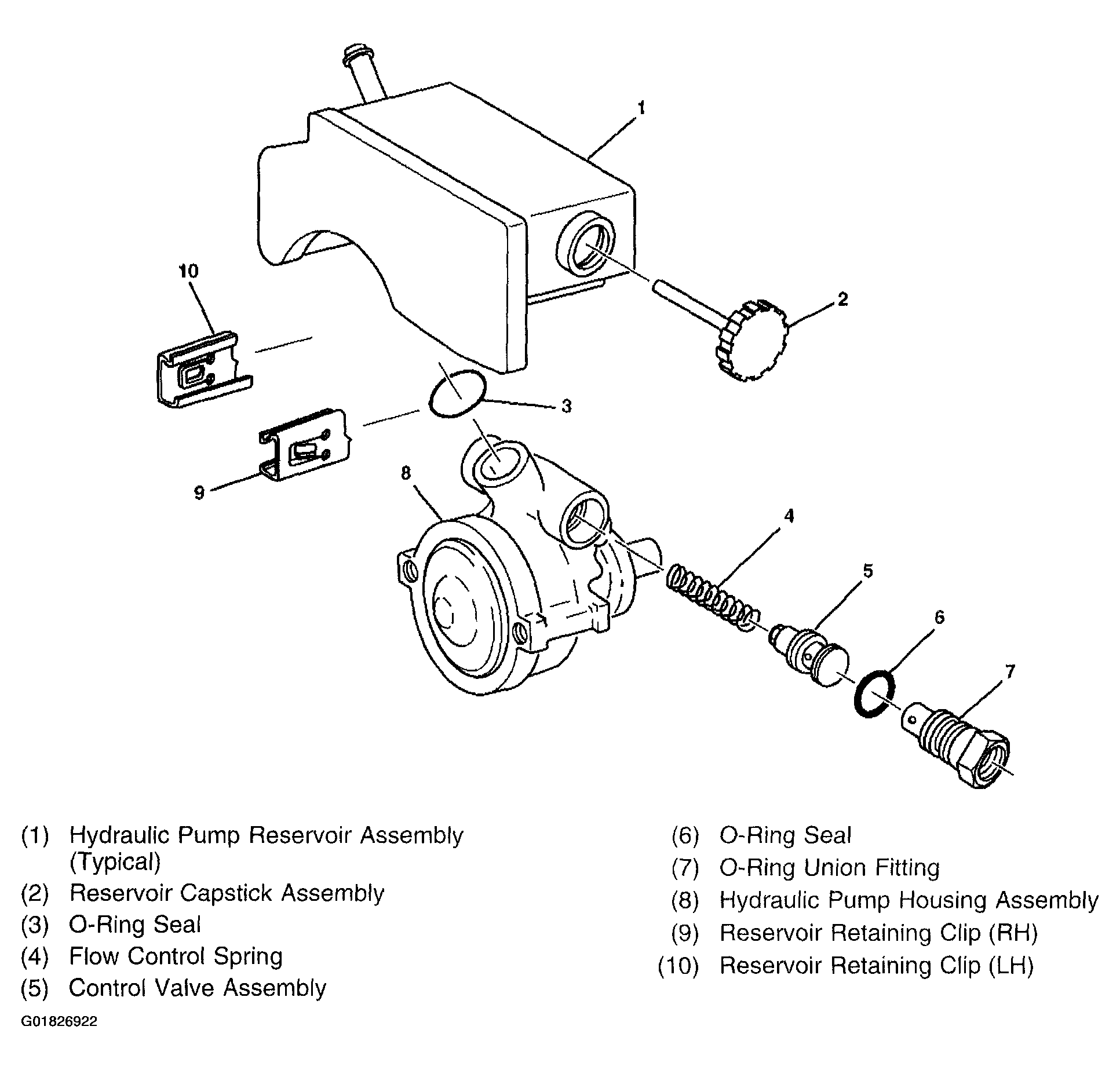

Fig 1: Power Steering Pump Assembly Disassembled View - CB Series
G01826922Courtesy of GENERAL MOTORS CORP.
