Installation Procedure

  1. Install the steering gear heat shield.
    NOTE: Refer to FASTENER NOTICE .

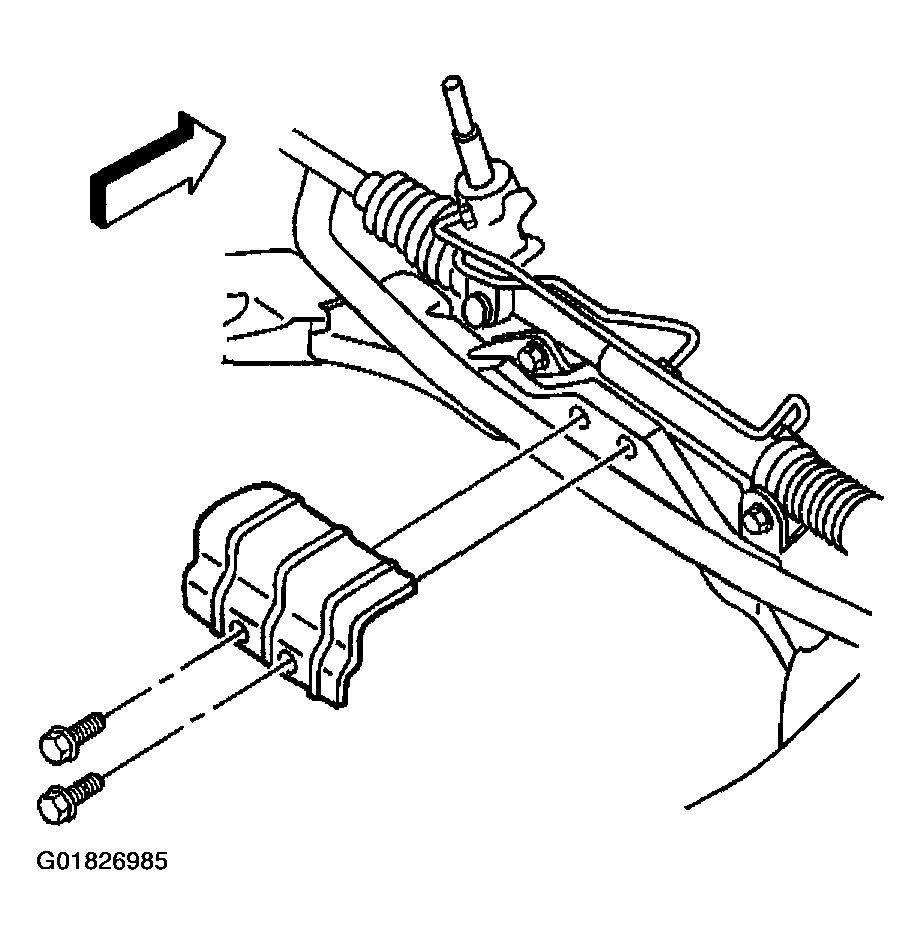

    Fig 1: Steering Gear Heat Shield
    G01826985Courtesy of GENERAL MOTORS CORP.
  2. Install the steering gear heat shield bolts.

    Tighten

    Tighten the steering gear heat shield bolts to 14 N.m (10 1b ft).

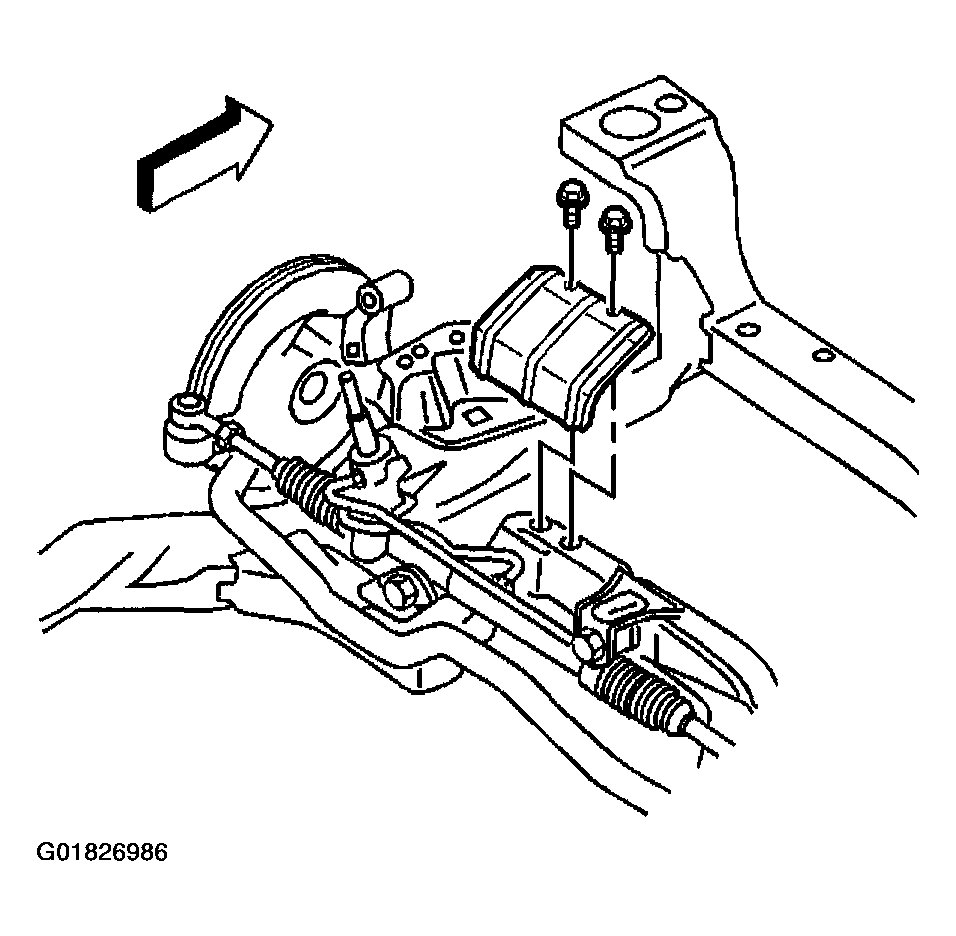

    3. Fig 2: Splash Shield
    G01826986Courtesy of GENERAL MOTORS CORP.
  3. If the vehicle is equipped with all wheel drive, install the right side engine splash shield. Refer to SPLASH SHIELD REPLACEMENT - ENGINE .
  4. Lower the vehicle.
