Disassembly Procedure

To remove the outer tie rod; refer to TIE ROD END REPLACEMENT - Outer .

Fig 1: Hex Jam Nut

G01826994

Courtesy of GENERAL MOTORS CORP.

Remove the hex jam nut (2) from the inner tie rod assembly (1).

Fig 2: Tie Rod End Clamp

G01826995

Courtesy of GENERAL MOTORS CORP.

Remove the tie rod end clamp (2) from the rack and pinion boot (1).

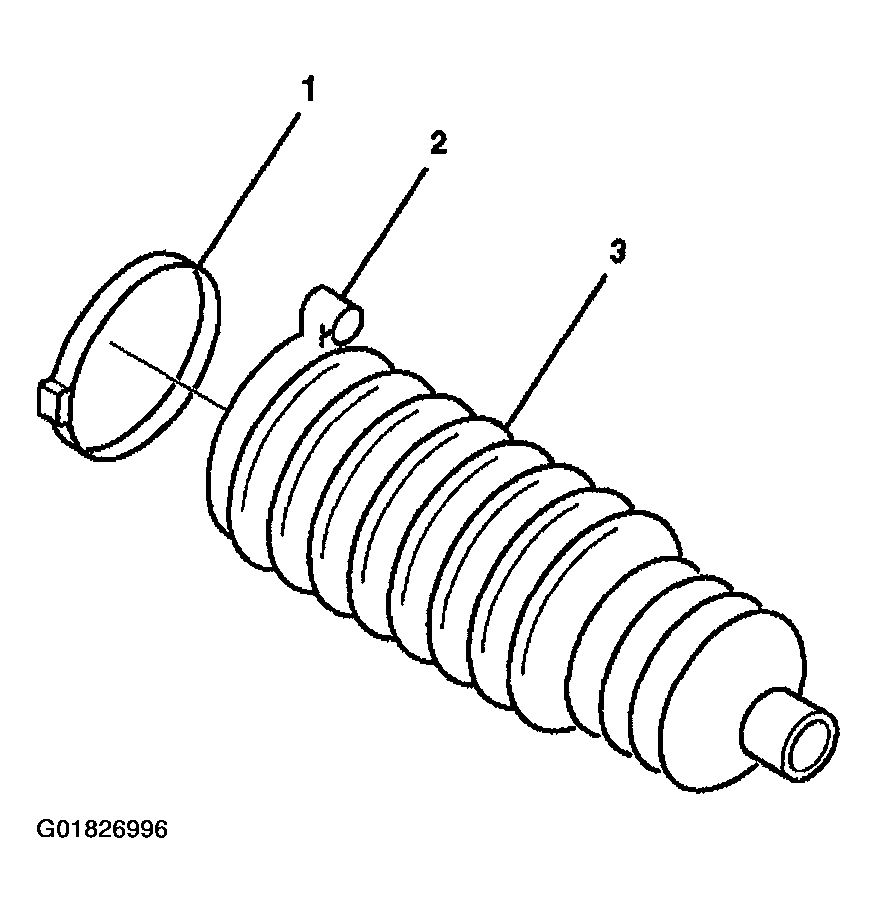

Fig 3: Boot Clamp

G01826996

Courtesy of GENERAL MOTORS CORP.

Remove the boot clamp (1) from the rack and pinion boot with side cutters.
Discard the boot clamp (1).

Fig 4: Removing Rack & Pinion Boot

G01826997

Courtesy of GENERAL MOTORS CORP.

Remove the rack and pinion boot (1) from the rack and pinion gear assembly.
