Installation Procedure

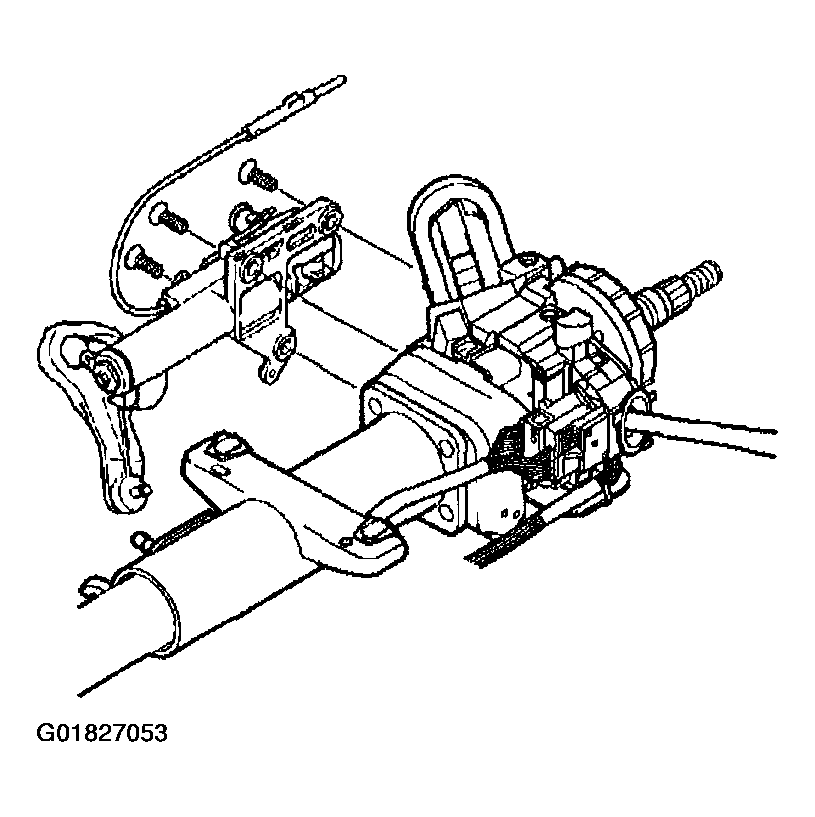

Fig 1: Linear Shift Assembly

Courtesy of GENERAL MOTORS CORP.

Install the linear shift assembly onto the steering column support assembly.
NOTE: Refer to FASTENER NOTICE .
Secure the linear shift assembly to the steering column assembly with the 3 screws.
Tighten

Tighten the 3 screws to 10 N.m (89 lb in).
Install the automatic transmission shift lock control.
Install the shift lever clevis and put the column in the NEUTRAL position, which is 2 positions from the PARK position.

Fig 2: Automatic Transmission Shift Lock Control
Courtesy of GENERAL MOTORS CORP.
Slide the park position switch assembly onto the linear shift assembly.
Connect the automatic transmission shift lock control connector to the park position switch assembly.

Fig 3: Park Position Switch Assembly
Courtesy of GENERAL MOTORS CORP.
Connect the park lock cable assembly (1) to the electronic lock module assembly in the following way:
1. Place the steering column lock cylinder set into the OFF position.
2. Place the shift lever clevis into the PARK position.
3. Press the locking tab on the end of the park lock cable assembly (1) into the slot in the electronic lock module assembly.

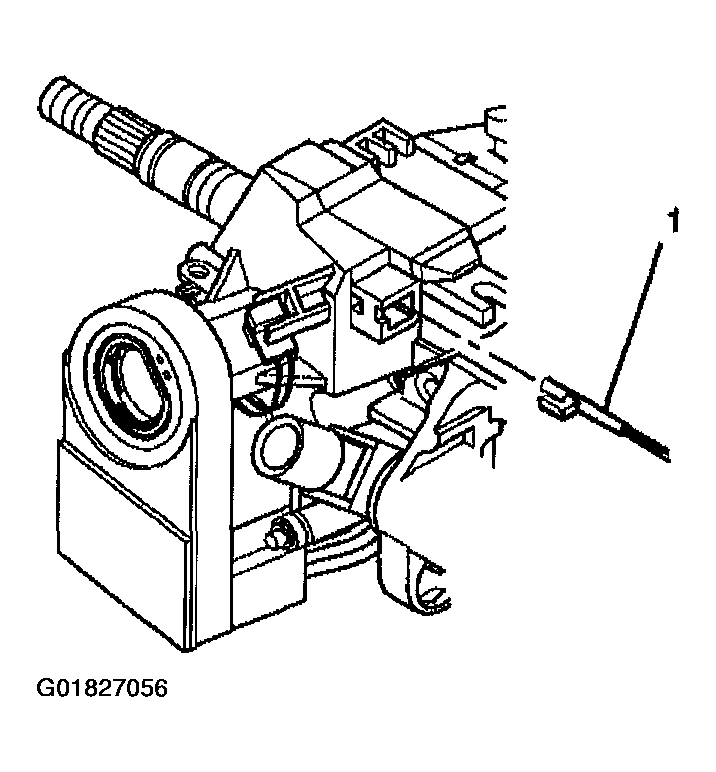

Fig 4: Park Lock Cable Assembly
Courtesy of GENERAL MOTORS CORP.
Install the knee bolster. Refer to KNEE BOLSTER REPLACEMENT .
Install the steering column trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT - On Vehicle .
