Automatic Level Control Compressor Motor Inoperative
Automatic Level Control Compressor Motor Inoperative

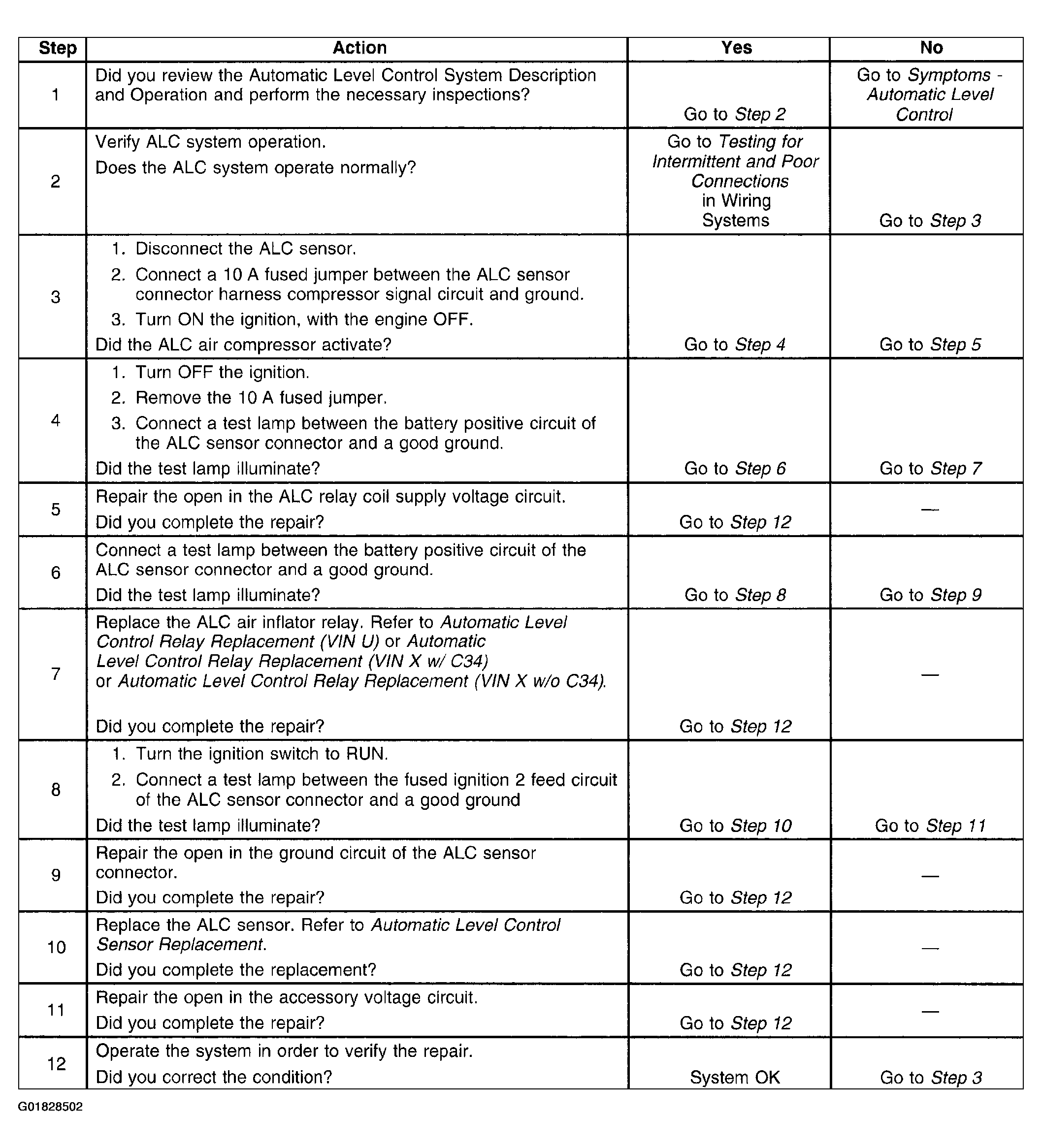

Fig 1: Automatic Level Control Compressor Motor Inoperative
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
