Installation Procedure

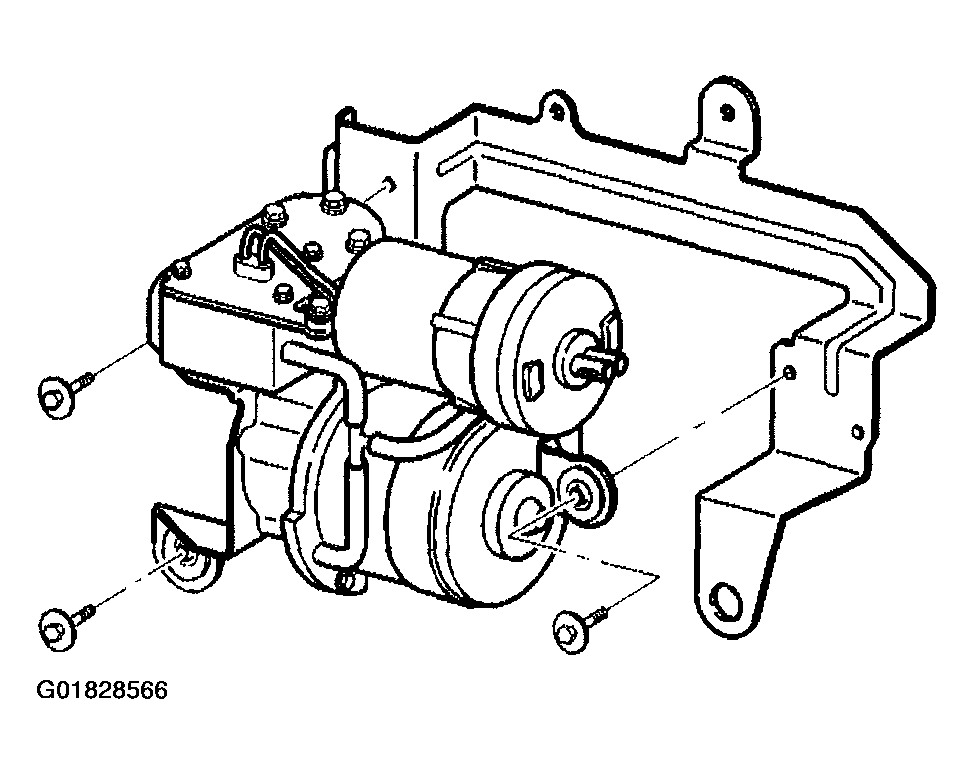

    Fig 1: Air Compressor Bracket
    G01828566Courtesy of GENERAL MOTORS CORP.
  1. Install the air compressor shield.
  2. Install the automatic level control air compressor. Refer to Air Compressor Replacement .
