Installation Procedure

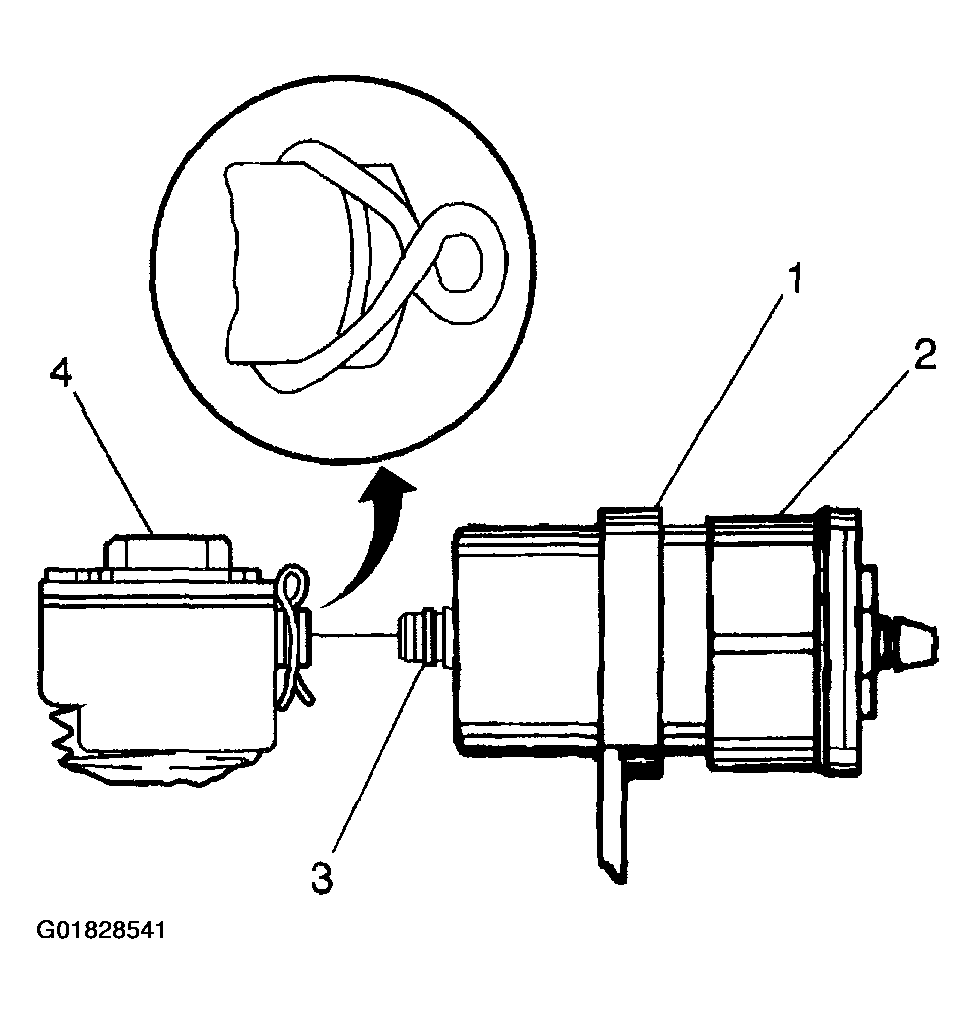

    Fig 1: Automatic Level Control Air Dryer
    G01828541Courtesy of GENERAL MOTORS CORP.
  1. Install the air dryer (2) to the air dryer bracket (3) and automatic level control air compressor.
  2. Rotate the clip 90 degrees in order to retain the dryer to the automatic level control air compressor.
  3. Install the automatic level control air compressor to the vehicle. Refer to Air Compressor Replacement .
