Installation Procedure

  1. Install the stabilizer shaft from the left side of the vehicle.
  2. Install the left and right stabilizer shaft links. Refer to Stabilizer Shaft Link Replacement .
    Fig 1: Installing Left/Right Stabilizer Shaft Links
    G01828297Courtesy of GENERAL MOTORS CORP.
  3. Install the left and right stabilizer shaft insulators and brackets. Refer to Stabilizer Shaft Insulator Replacement .
  4. Install the left front tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  5. Lower the vehicle.

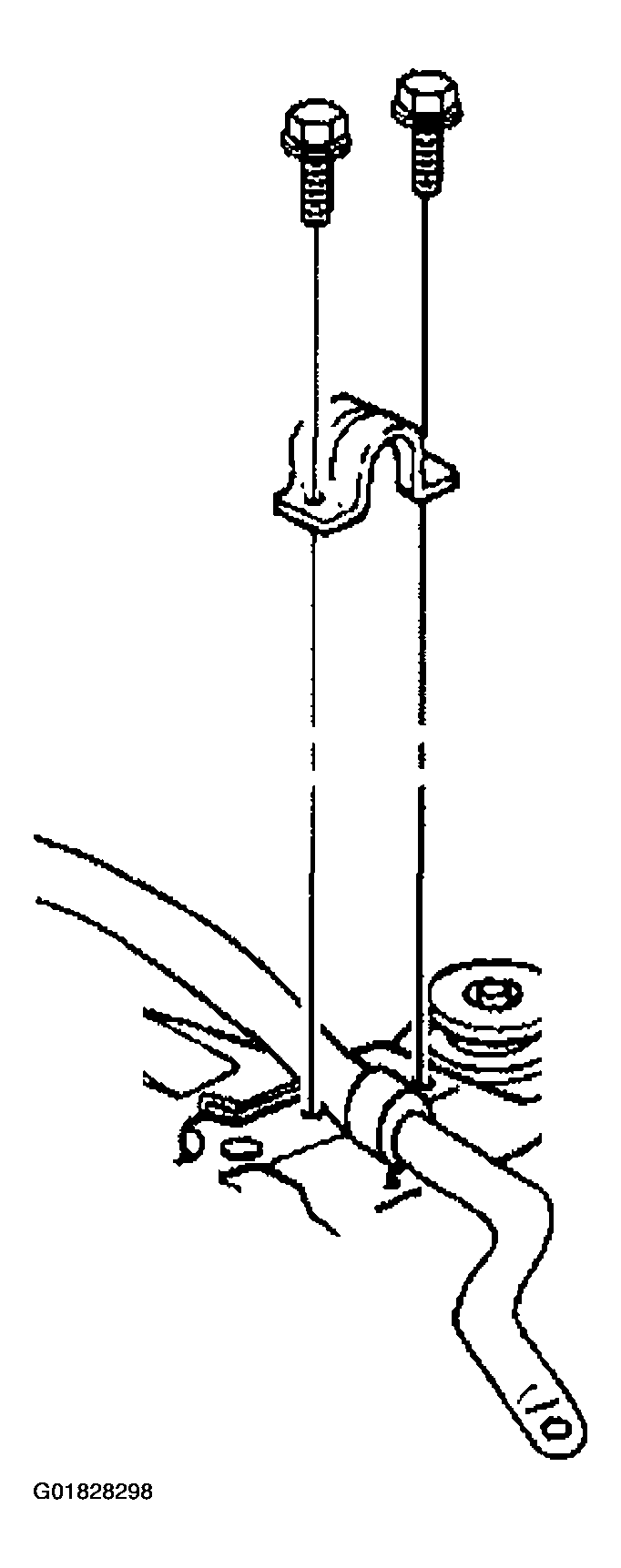

    Fig 2: Installing Left/Right Stabilizer Shaft Insulators & Brackets
    G01828298Courtesy of GENERAL MOTORS CORP.
