Removal Procedure

NOTE: Care should be taken to avoid chipping or scratching the coating when handling the suspension coil spring. Damage to the coating can cause premature failure.

Important: Lift the vehicle using ONLY a frame-contact vehicle lift. Do NOT lift the vehicle using a suspension-contact vehicle lift.

Raise and support the vehicle. Refer to LIFTING & JACKING VEHICLE .
Remove the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
Remove the wiper module. Refer to WIPER MOTOR MODULE REPLACEMENT .

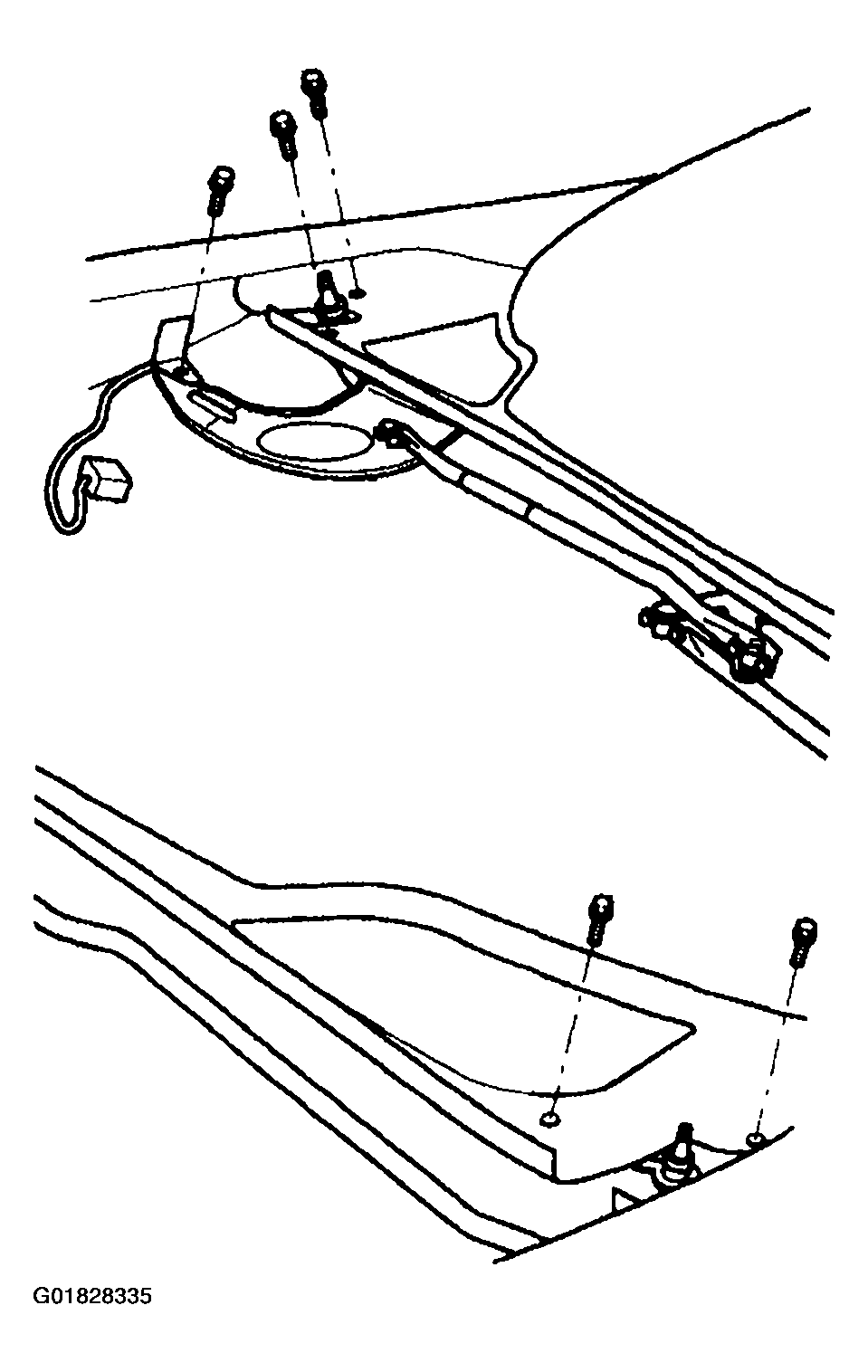

Fig 1: Removing Strut Assembly & Bolts
Courtesy of GENERAL MOTORS CORP.
Remove the strut upper nuts.

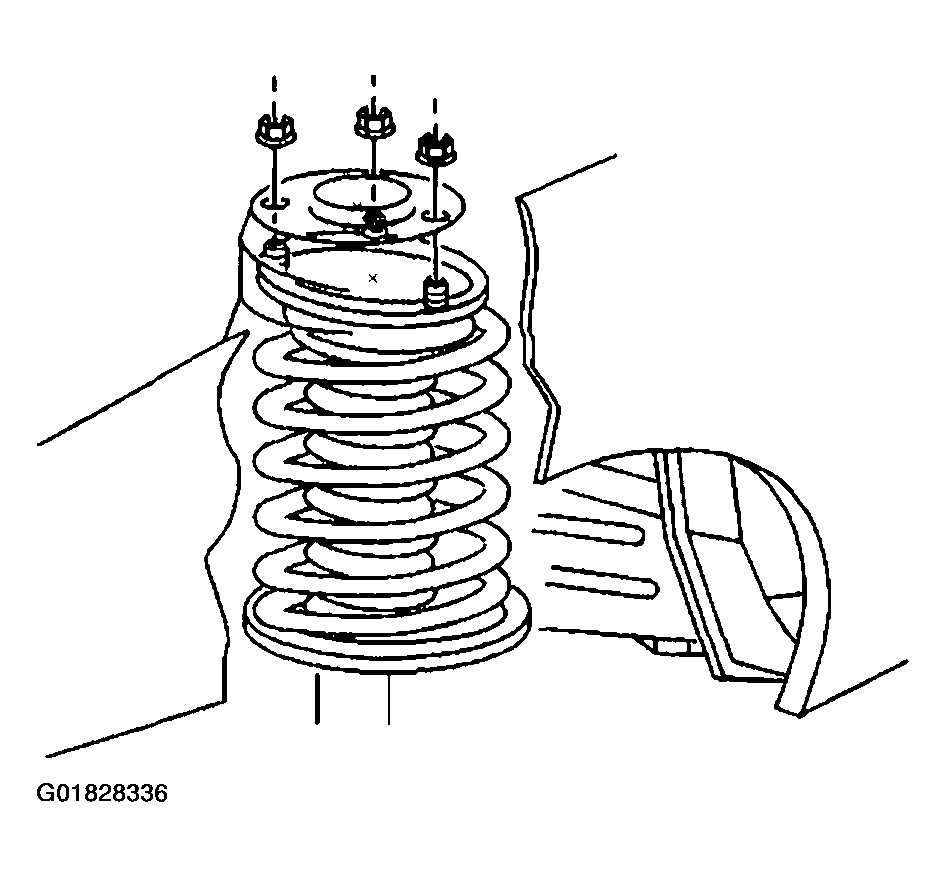

Fig 2: Removing Strut Upper Nuts
Courtesy of GENERAL MOTORS CORP.
Scribe the strut to the knuckle.

Fig 3: Scribing Strut To Knuckle
Courtesy of GENERAL MOTORS CORP.
Remove the strut lower bolts and nuts.
Remove the strut.

Fig 4: Removing Strut Lower Bolts & Nuts
Courtesy of GENERAL MOTORS CORP.
