Scan Tool Data List

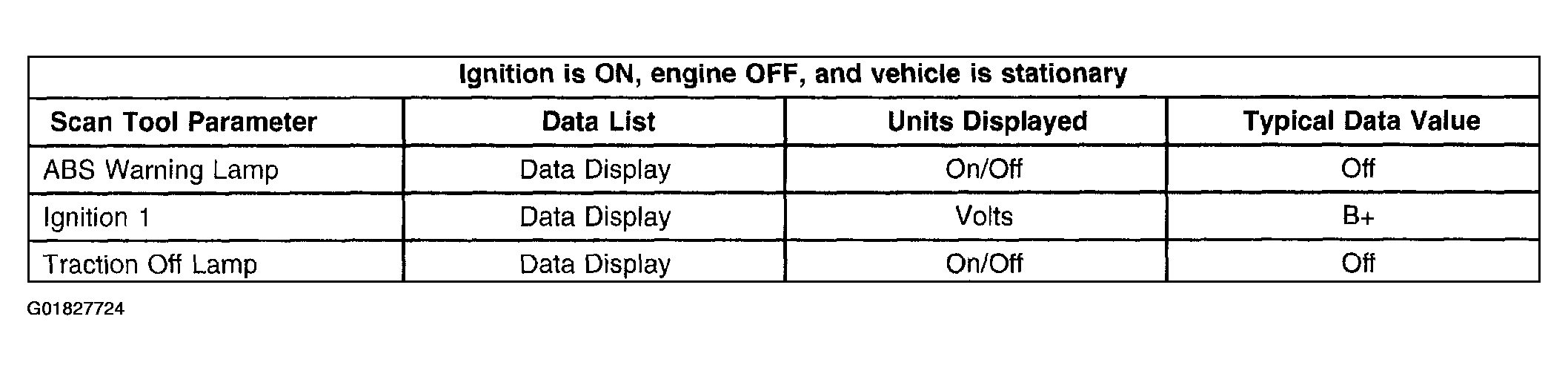

Fig 1: Scan Tool Data List (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

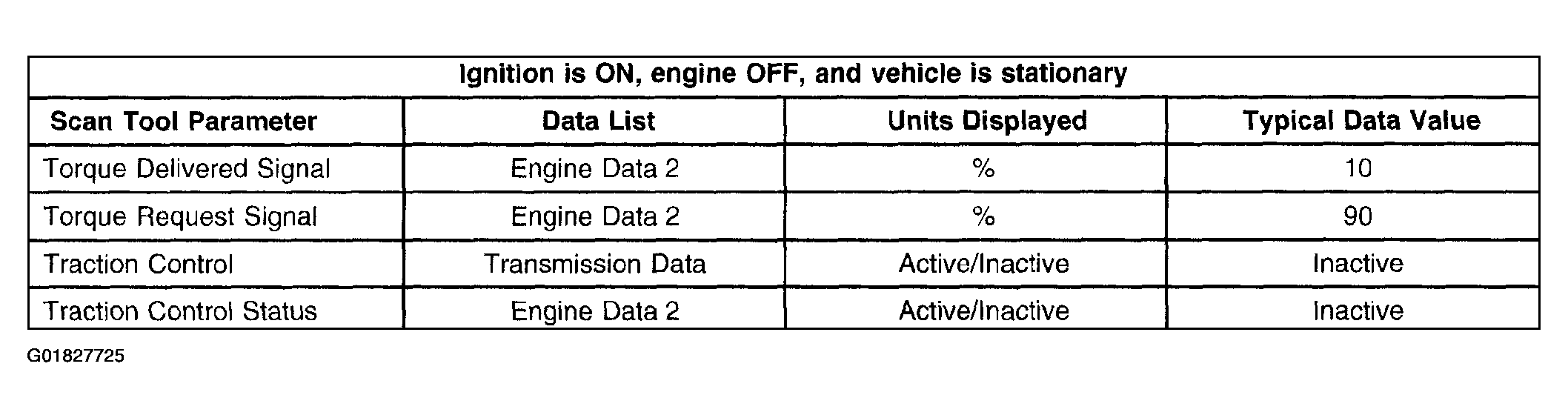

Fig 2: Scan Tool Data List (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 3: Instrument Panel Cluster (IPC)
Courtesy of GENERAL MOTORS CORP.
Fig 4: Powertrain Control Module (PCM)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
