Schematic and Routing Diagrams

Fig 1: ABS Schematic Icons

Courtesy of GENERAL MOTORS CORP.

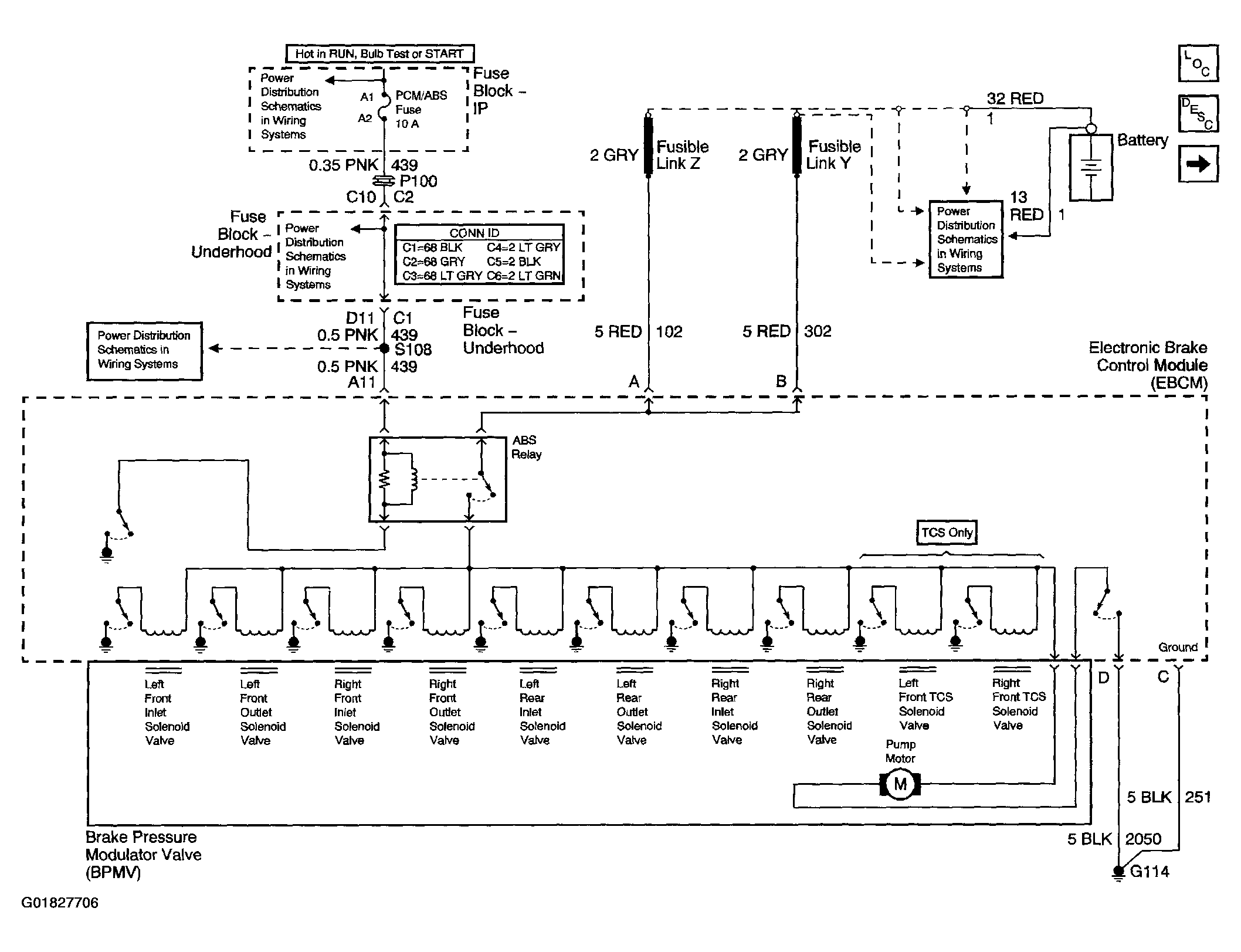

Fig 2: ABS Schematics (EBCM, Power And Ground)

Courtesy of GENERAL MOTORS CORP.

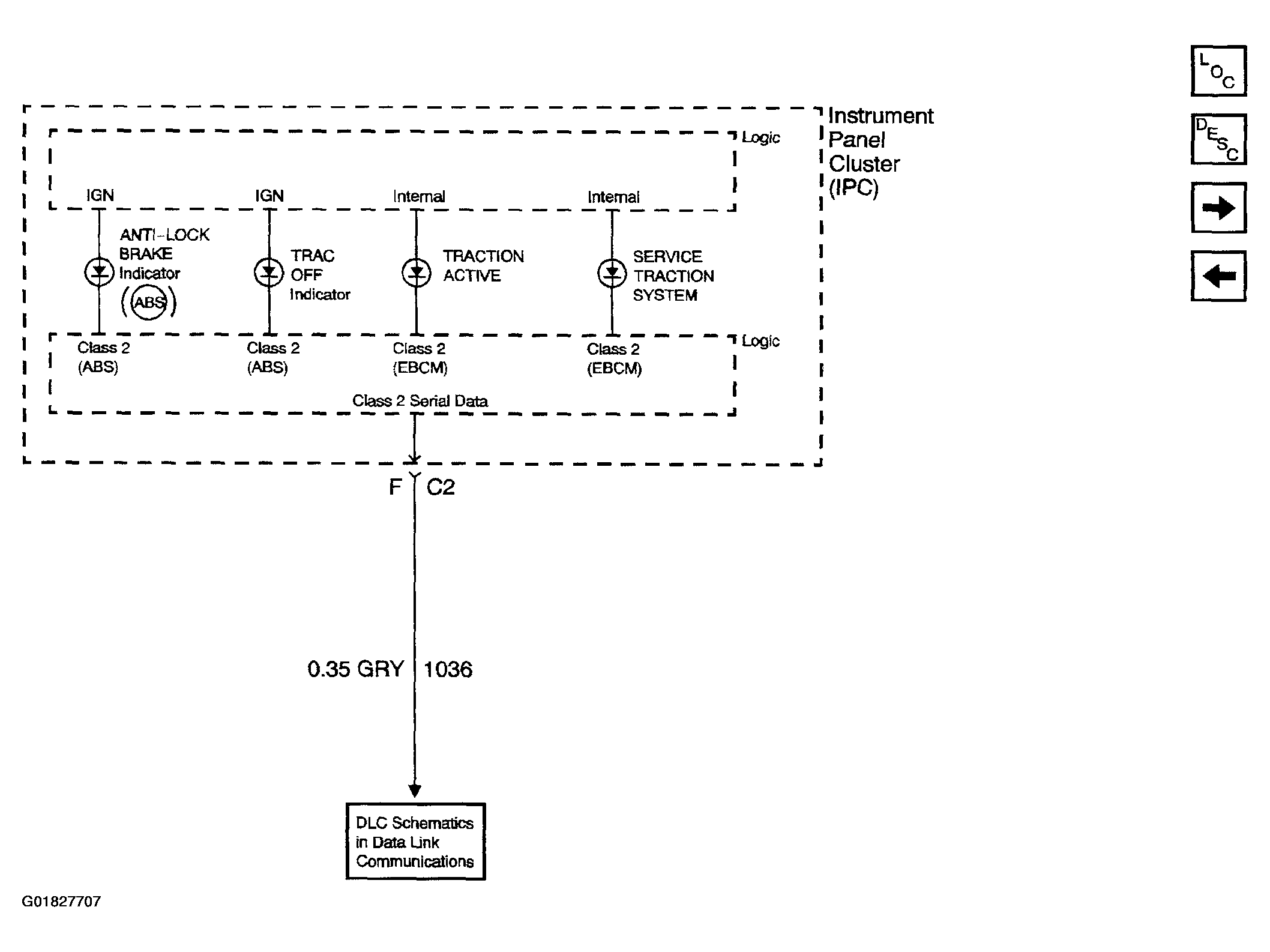

Fig 3: ABS Schematics (EBCM, Cluster And DLC)

Courtesy of GENERAL MOTORS CORP.

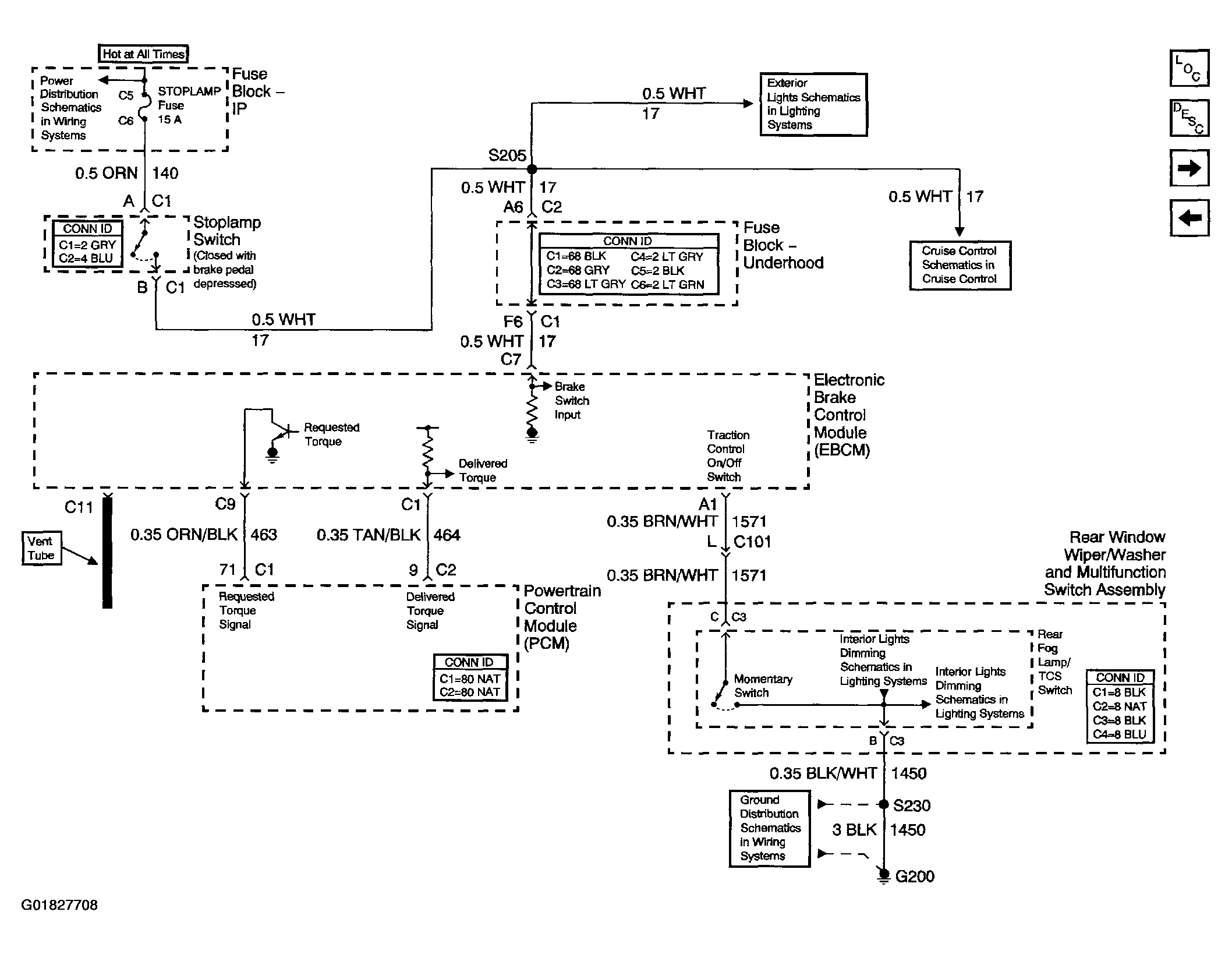

Fig 4: ABS Schematics (EBCM, PCM And Stop Lamp Switch)

Courtesy of GENERAL MOTORS CORP.

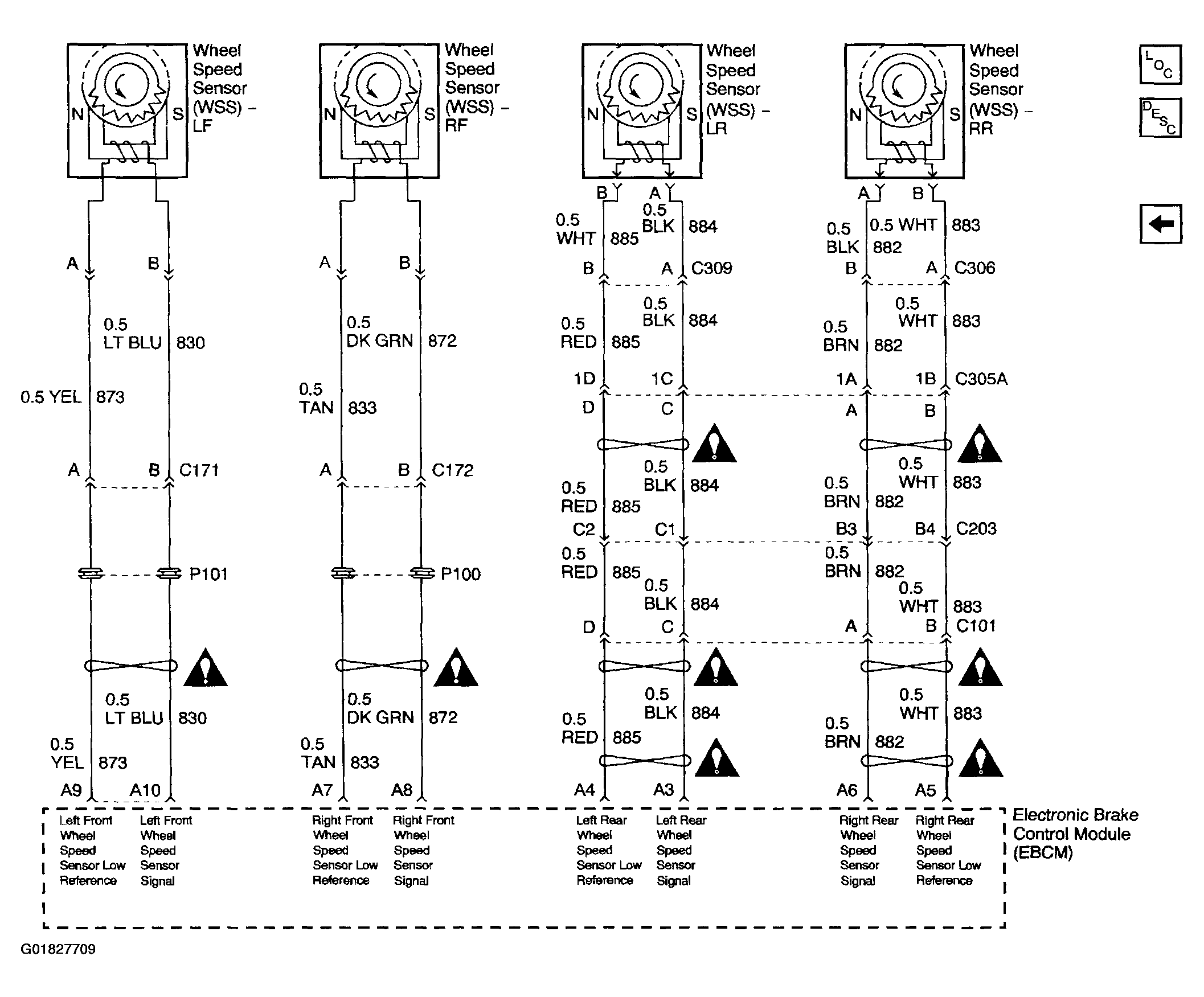

Fig 5: ABS Schematics (Wheel Speed Sensors)

Courtesy of GENERAL MOTORS CORP.
