Removal & Installation: Starter: Removal
- Disconnect the battery ground (negative) cable from the battery. Raise and suitably support the vehicle. Remove radiator air baffle assembly.

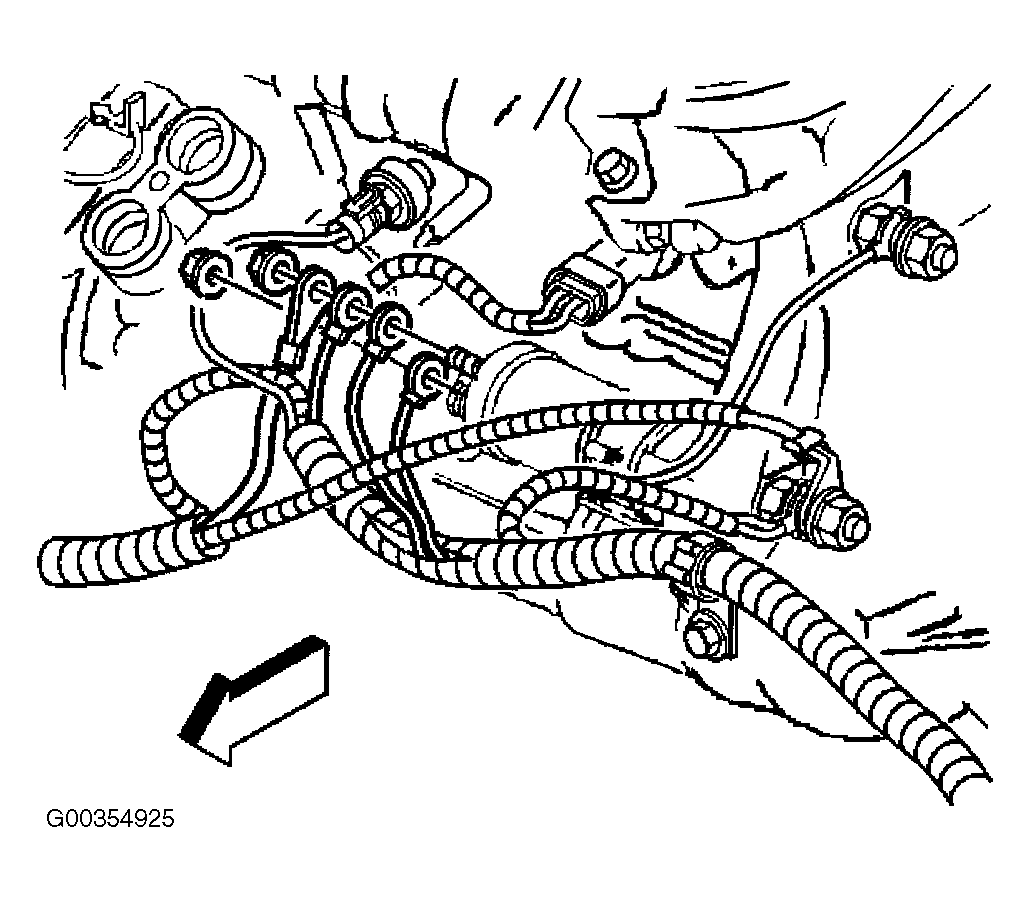

- Remove the starter motor BAT terminal nut and electrical leads. Remove the starter motor S terminal nut and electrical lead.
- Remove the torque converter cover. Remove the starter motor bolts. Remove the starter motor.
