Engine Flywheel Installation

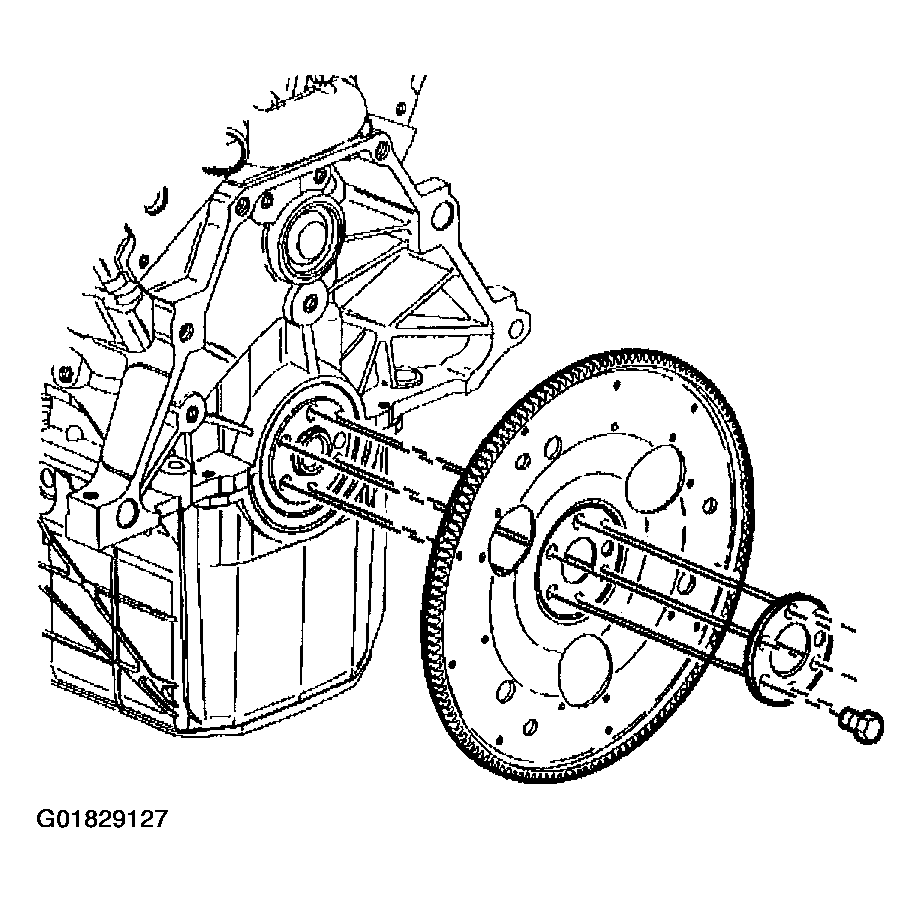

    Fig 1: Engine Flywheel
    G01829127Courtesy of GENERAL MOTORS CORP.
  1. Install the flywheel.
  2. Install the flywheel retainer.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the flywheel bolts.

    Tighten

    Tighten the flywheel bolts to 71 N.m (52 lb ft).
