Removal Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

Remove the floor console ashtray.
Remove the auxiliary HVAC control module. Refer to AUXILIARY HVAC CONTROL ASSEMBLY .
Remove the floor console rear cover screws (2).
Remove the floor console rear cover (1).

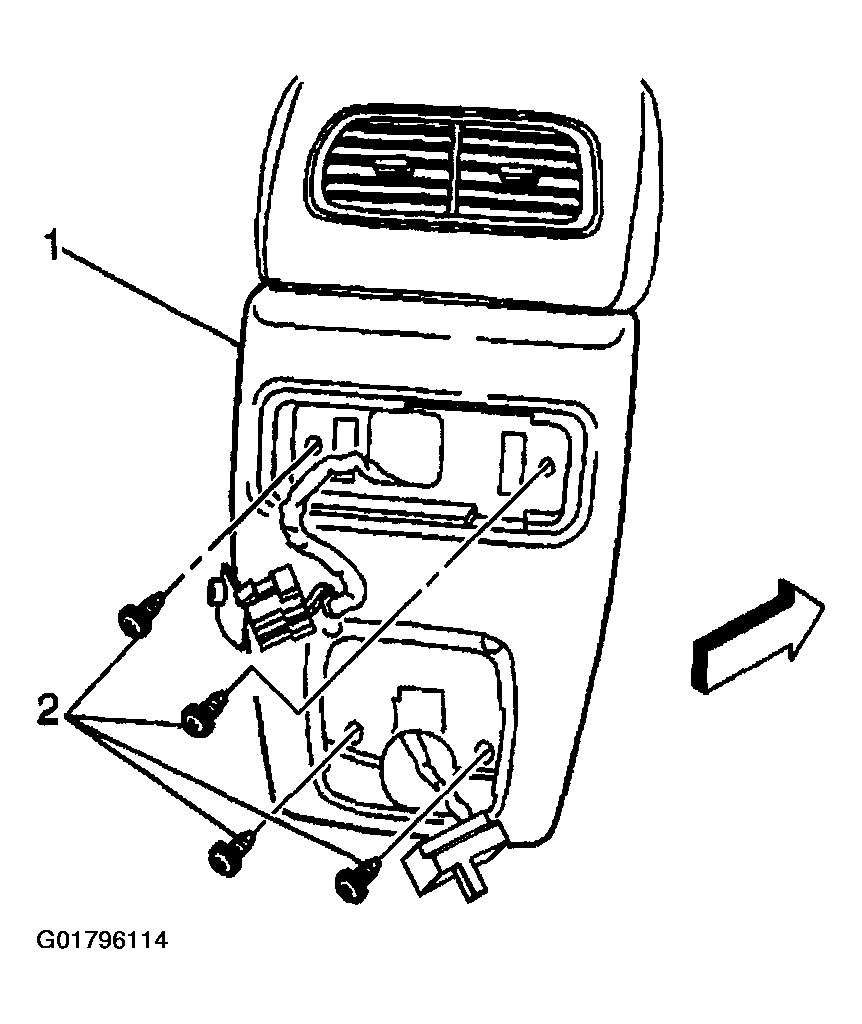

Fig 1: Removing Floor Console Rear Cover & Screws
Courtesy of GENERAL MOTORS CORP.
Carefully pull the cellular phone wiring out from under the floor console.
Disconnect the docking station electrical connector (1).
Disconnect the coaxial cable (2).

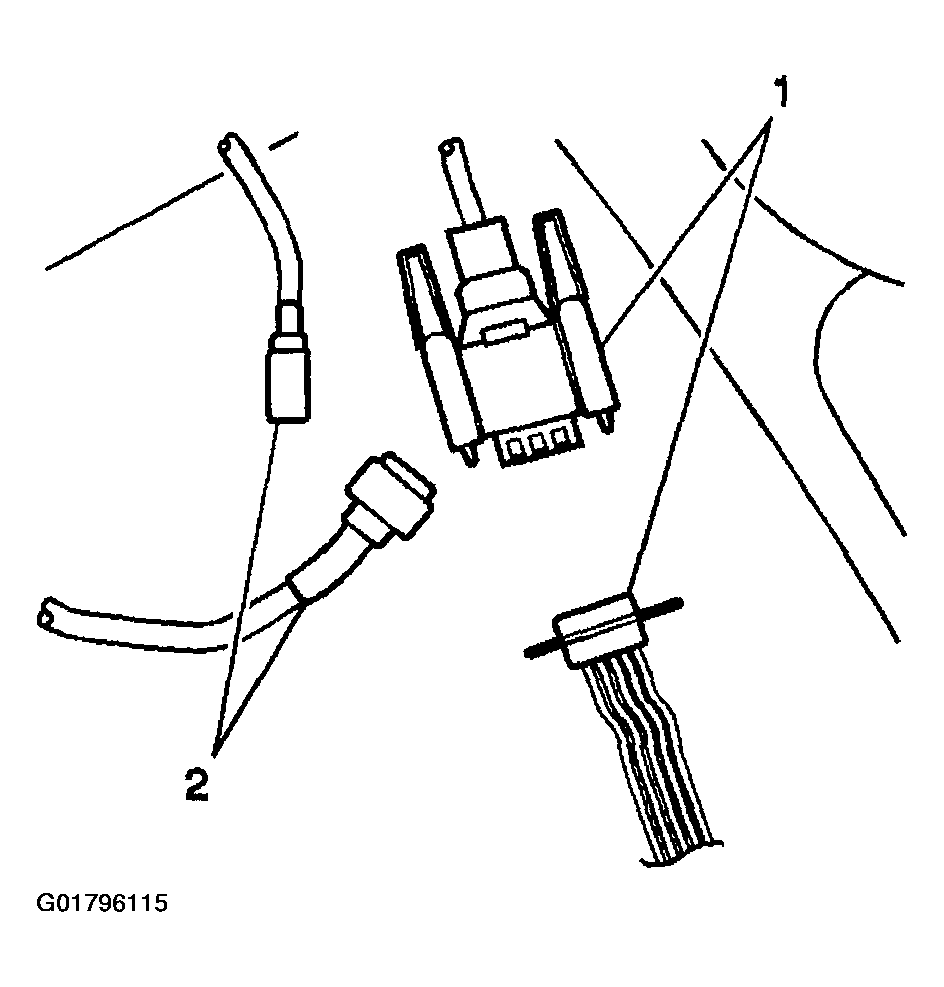

Fig 2: Coaxial Cable & Docking Station Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Remove the inner auxiliary HVAC outlet (1).
Remove the phone wiring (2) from the hinge area of the floor console.

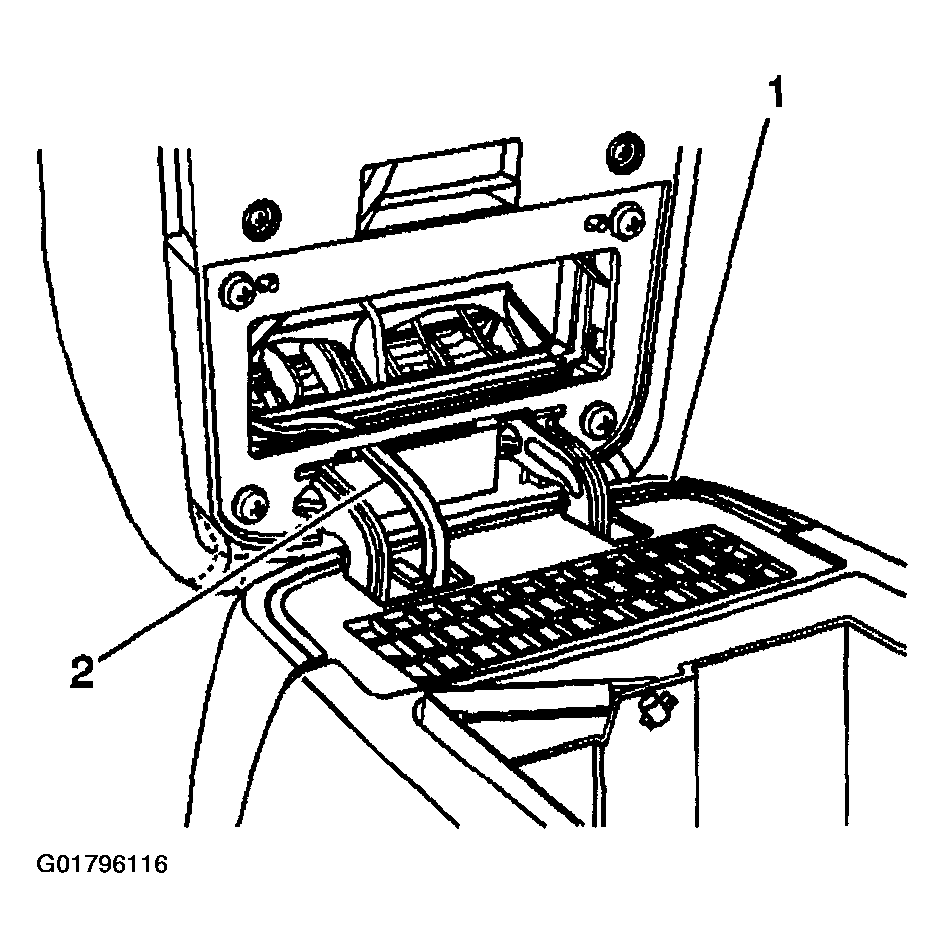

Fig 3: Removing Inner Auxiliary HVAC Outlet & Phone Wiring
Courtesy of GENERAL MOTORS CORP.
Remove the floor console tray screws (1).
Remove the console tray from the floor console.

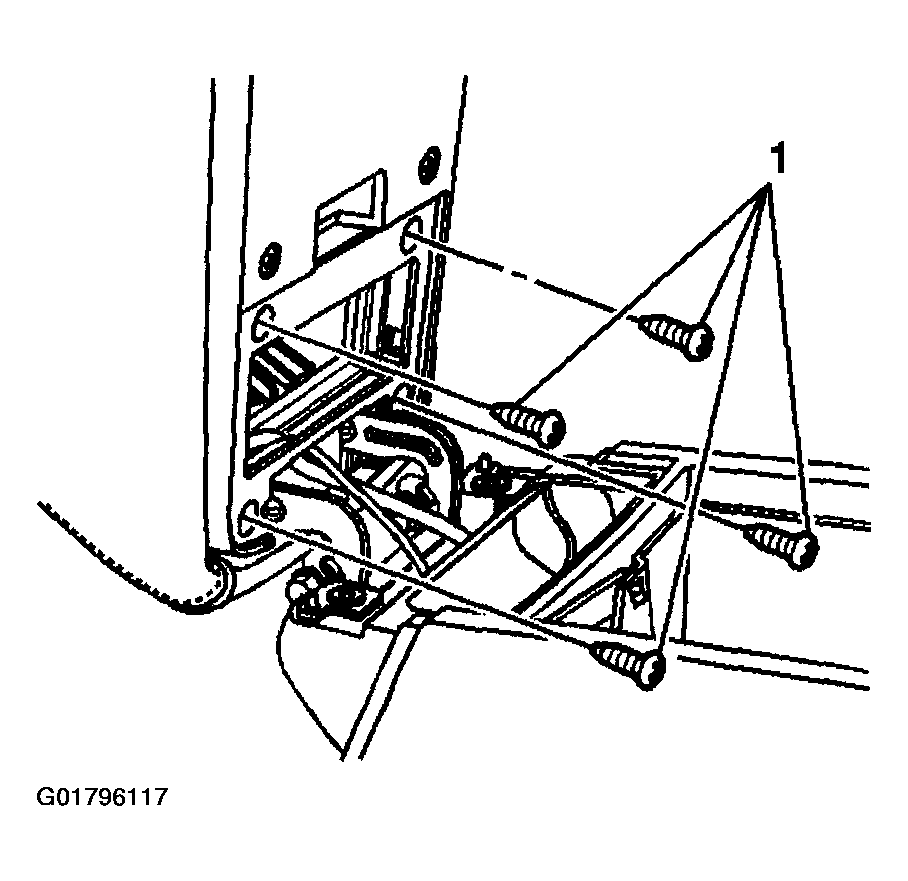

Fig 4: Removing Floor Console Tray & Screws
Courtesy of GENERAL MOTORS CORP.
Remove the console tray insert screws (1) from the console tray (2).
Remove the tray insert from the console tray (1).

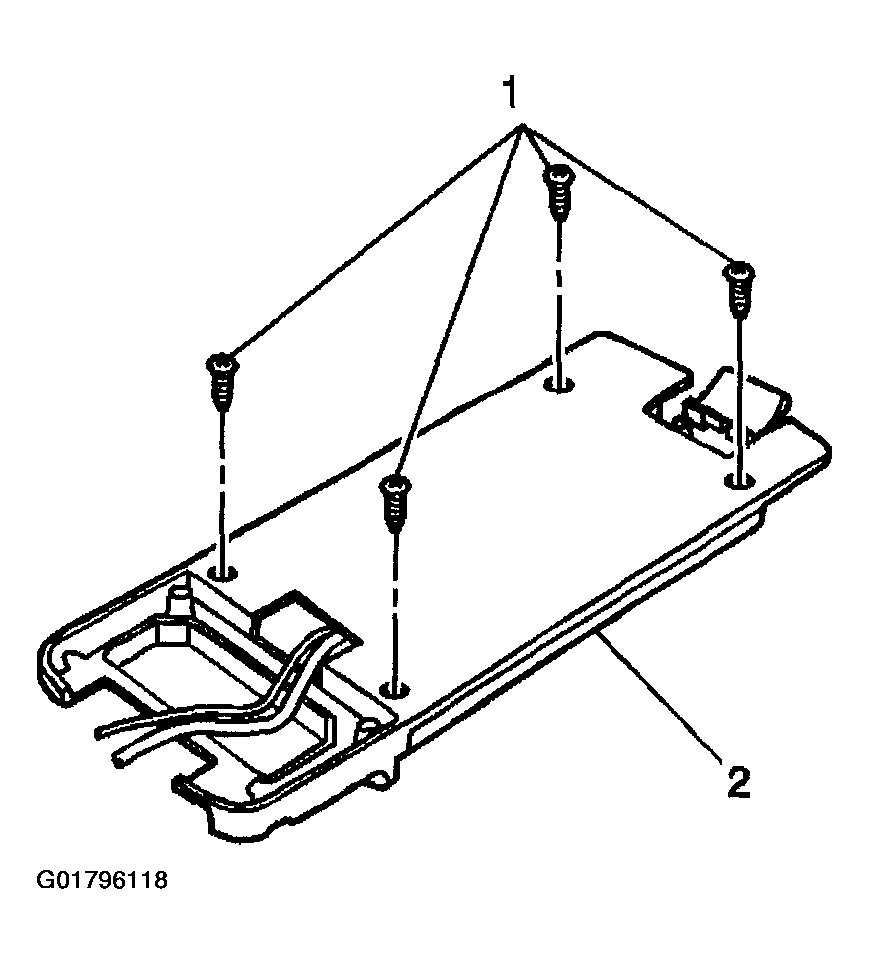

Fig 5: Removing Console Tray & Insert Screws
Courtesy of GENERAL MOTORS CORP.
Remove the docking station screws (1) from the console tray insert.
Remove the docking station from the tray insert.

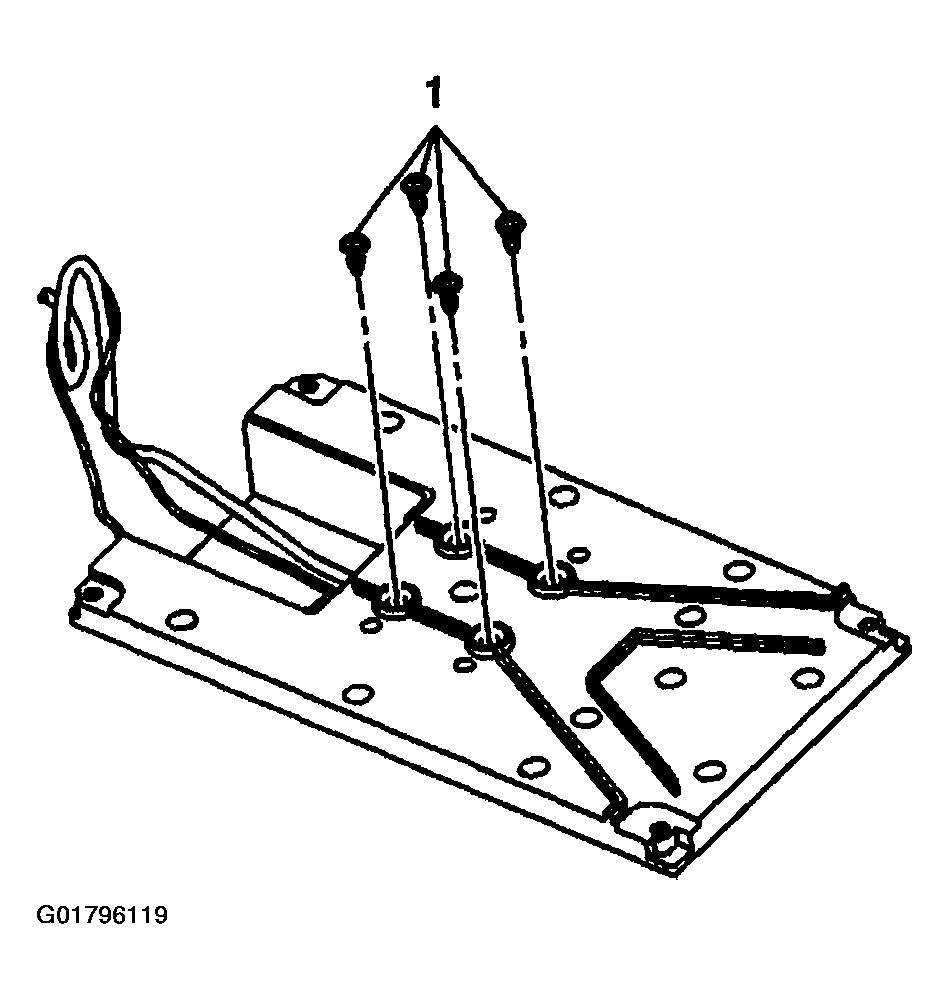

Fig 6: Removing Docking Station & Screws
Courtesy of GENERAL MOTORS CORP.
