Installation Procedure
WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

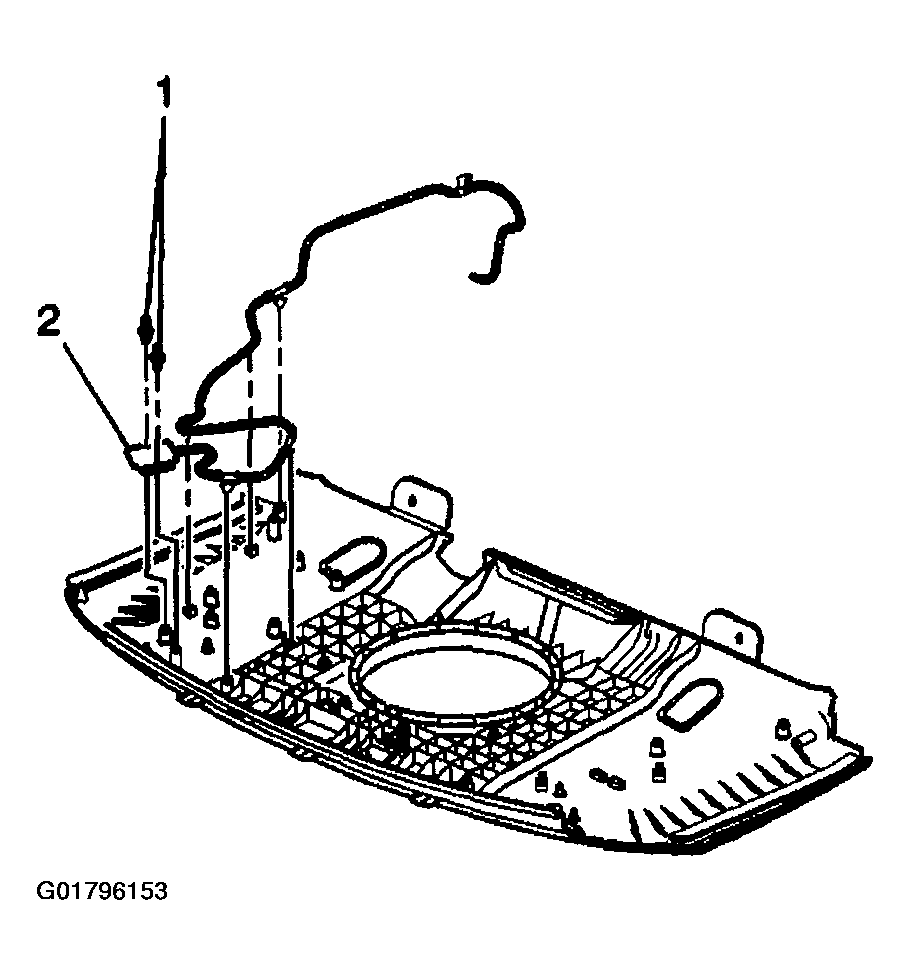

- Install the GPS antenna module (2) to the rear shelf trim panel.
- Install the pushpins (1) in order to retain the antenna module to the rear shelf trim panel.
- Push the center of the pin down in order to lock the pins (1) in place.
- Install the GPS antenna wiring harness to the rear shelf trim panel in order to retain the wiring harness to the rear shelf trim panel.
- Install the rear shelf trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF .
